Features
-5POS: Refers to 5 positions or contacts within the connector, indicating the number of electrical connections available.
-DIP (Dual Inline Package): Designed for through-hole mounting directly onto a printed circuit board (PCB), offering a secure and reliable connection.
-Dimensions: The 5.9mm measurement typically refers to the width of the connector package, indicating its compact size suitable for various applications.
-Design: Engineered for durability and reliability, featuring a robust housing and contacts that withstand frequent insertion and removal cycles.
Applications
1.Consumer Electronics
2.Computer Peripherals
3.Automotive Applications
4.Industrial and Embedded Systems
Specifications
Material
Housing:Hing Temperature Thermoplastics,
UL94V-0 LCP,Black.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680.
Finish:
Contact:Plated Gold In Mating Area;
Tin On Solder Talls.
Shell:Nickel Plating.
Electrical:
Current Rating:1.0A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:50mΩ Max.
Dielectric Withstanding Voltage:
300 V AC AT Sea Level.
Insulation Resistance:100MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.0kgf Max.
Unmated Force:0.7kgf Min.
Terminal Retenion:0.5kgf Min.
Technical Documents
Please contact us for more information.
Micro USB connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Micro USB connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

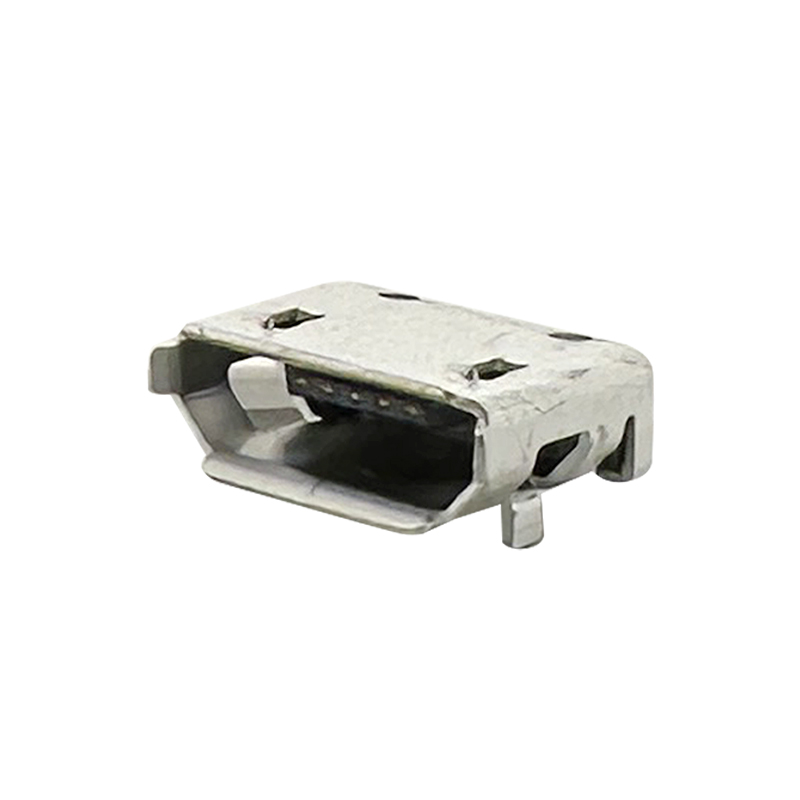

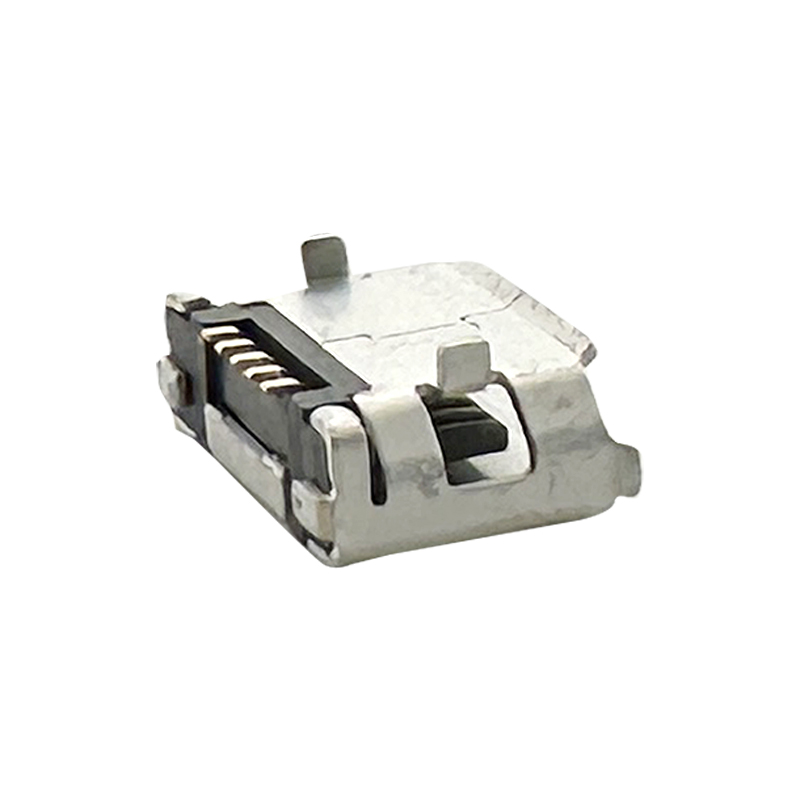

CONN RCPT 5POS MICRO USB DIP 5.9mm:RHTAY245
