Features
-Power and Data Transfer: Supports both power charging and data transfer functionalities, providing a versatile connection for various devices.
-Mechanical Specifications: Includes dimensions and mounting details optimized for surface mounting on PCBs, facilitating efficient assembly in manufacturing.
-Electrical Specifications: Specifies voltage ratings, current ratings, and signal integrity characteristics to ensure reliable performance in different operating conditions.
-Shielding: Typically includes shielding to minimize electromagnetic interference (EMI), ensuring signal integrity during data transmission.
Applications
1.Consumer Electronics
2.Medical Devices
3.Automotive Applications
4.Industrial Applications
Specifications
Material
Housing:Hing Temperature Thermoplastics,
UL94V-0 LCP,Black.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680.
Finish:
Contact:Plated Gold In Mating Area;
Tin On Solder Talls.
Shell:Nickel Plating.
Electrical:
Current Rating:1.0A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:50mΩ Max.
Dielectric Withstanding Voltage:
300 V AC AT Sea Level.
Insulation Resistance:100MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.0kgf Max.
Unmated Force:0.7kgf Min.
Terminal Retenion:0.5kgf Min.
Technical Documents
Please contact us for more information.
Micro USB connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Micro USB connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

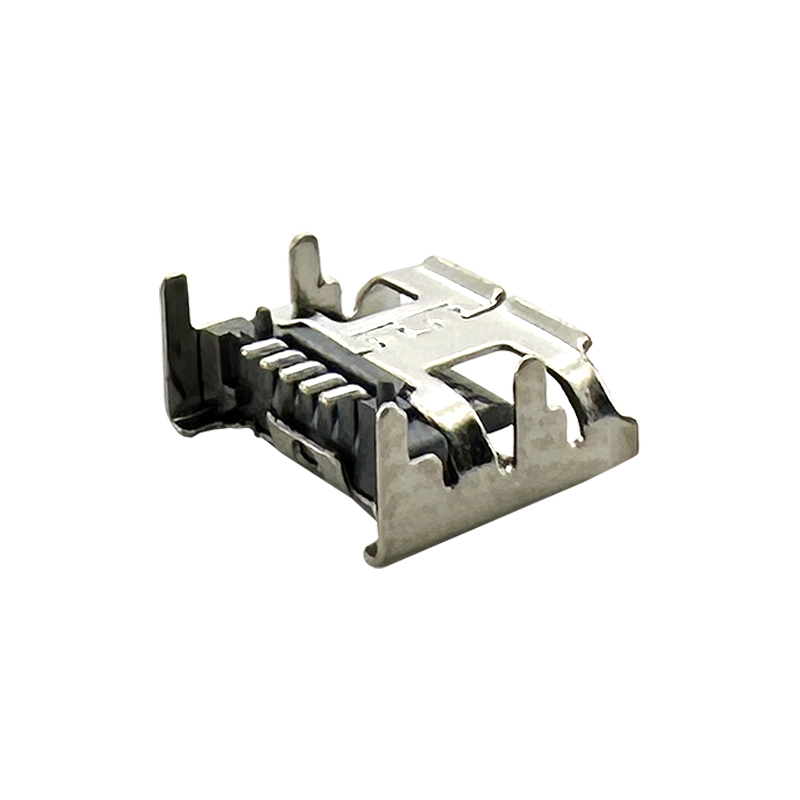

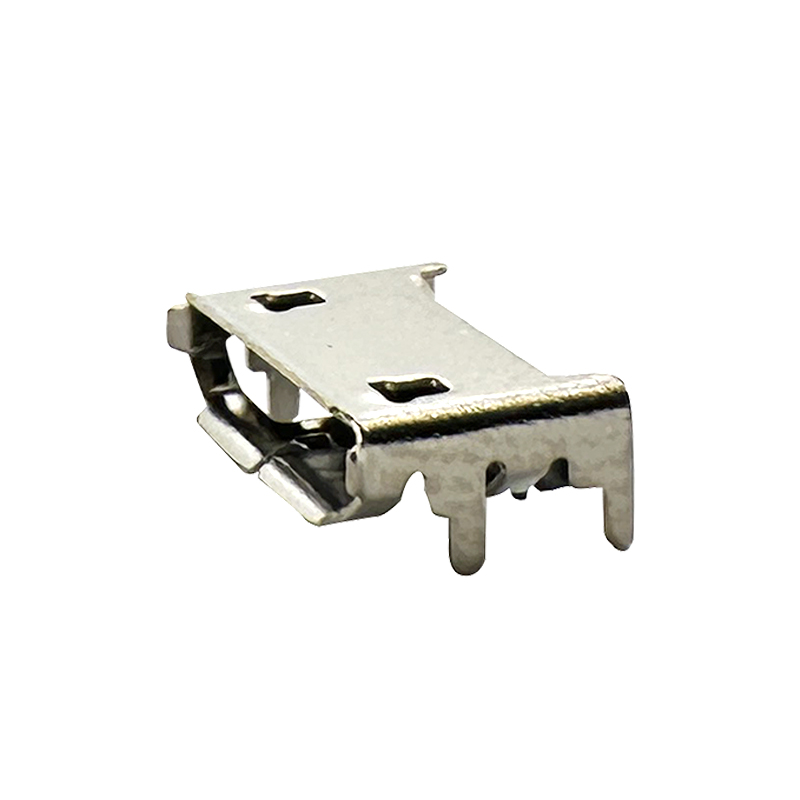

CONN RCPT 5POS MICRO USB SMD:RHTAY246
