Features
-SMD (Surface Mount Device): Designed for surface mounting directly onto a printed circuit board (PCB), offering a compact and low-profile solution.
-Design: Engineered for reliability and durability, featuring a robust housing and contacts that withstand frequent insertion and removal cycles.
-Compatibility: Compliant with Micro USB standards, ensuring compatibility with devices designed to use Micro USB connectors.
-Power and Data Transfer: Supports both power charging and data transfer functionalities, providing a versatile connection for various devices.
Applications
1.Digital Cameras and Camcorders
2.Portable Audio Devices
3.GPS Navigation Devices
4.Embedded Systems and IoT Devices
Specifications
Material
Housing:Hing Temperature Thermoplastic
with G.F,UL94V-0,Black
Contact:Copper Alloy,t=0.20mm.
Shell:Copper Alloy,t=0.25mm.
Electrical:
Current Rating:1A Max.
Dielectric Withstanding Voltage:
100 V AC for 1 min.
Contact Resistance:50mΩ Max.
Insulation Resistance:100MΩ Min.
Total Mating Force:3.57 kgf Max.
Total Unmating Force:1.0 kgf Min.
Temperature Range: -30°C Up To +80°C
Technical Documents
Please contact us for more information.
Micro USB connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Micro USB connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

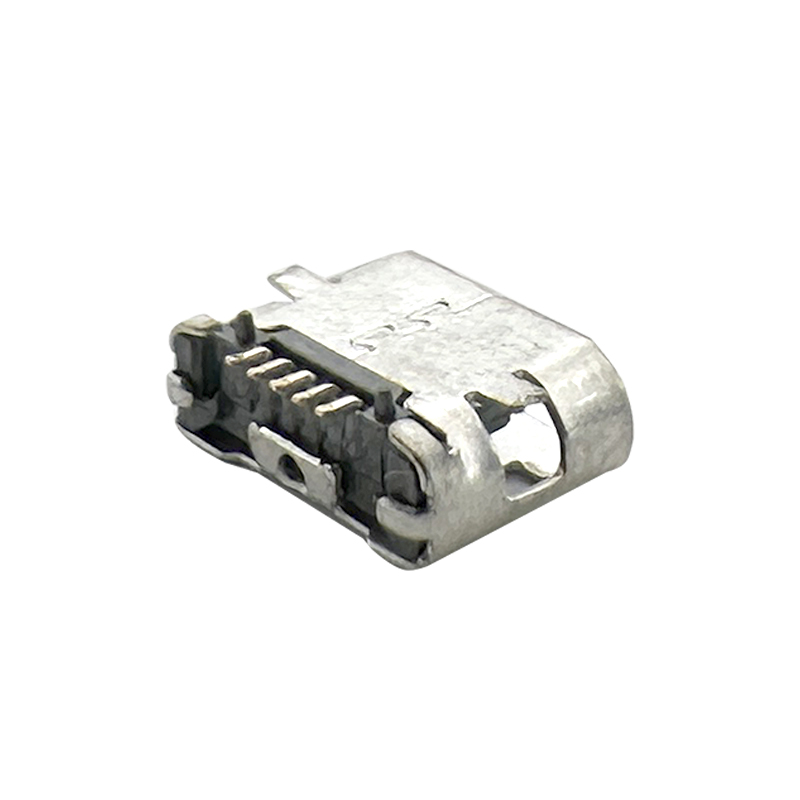

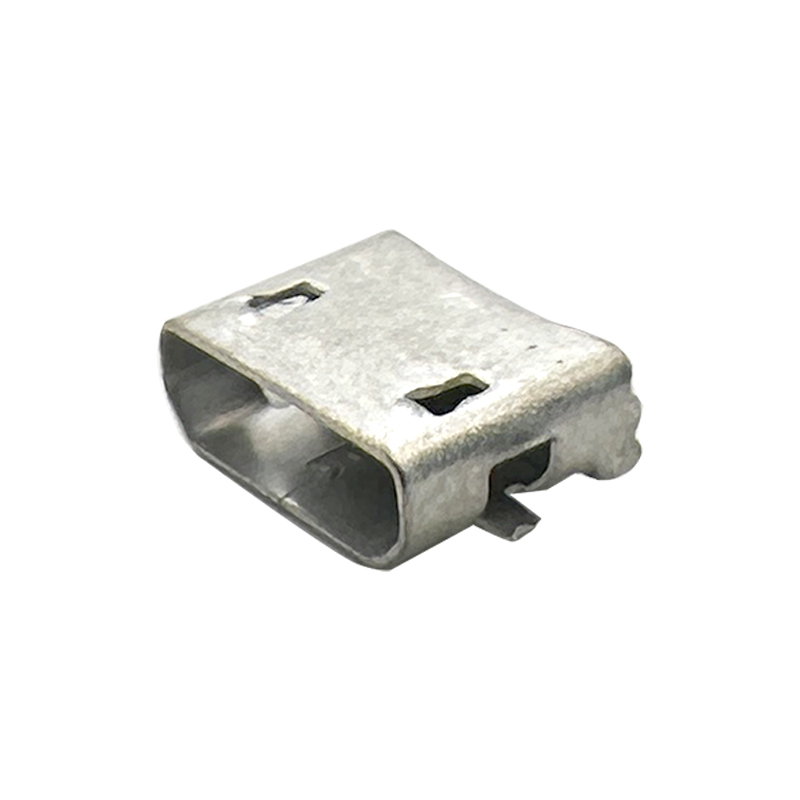

CONN RCPT 5POS MICRO USB SMD :RHTAY241
