Features
-Connector Type: Micro USB connectors are compact and widely used for data transfer and power charging in various electronic devices.
-Position and Orientation: "5POS" refers to 5 positions or contacts within the connector, indicating the number of pins or terminals available for electrical connections.
-Straight Orientation: This indicates that the connector has a straight, rather than angled or right-angle, orientation of the USB interface.
-Design: Designed for reliability and durability in demanding applications, often featuring a robust housing and contacts that withstand frequent insertion and removal cycles.
Applications
1.Mobile Phones and Smartphones
2.Tablets and Portable Devices
3.Digital Cameras and Camcorders
4.Portable Audio Devices
Specifications
Material
Housing:LCP,UL94V-0,Black.
Contact:Copper Alloy.Gold
Contact Type: Stamped
Shielding: Stainless Steel Matt Tin Plated.
Electrical:
Current Rating:1.8 A Pin1 & Pin 5
1.0 A Other Pins
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Withstanding Voltage: 100 Vac/Min.
Insulation Resistance:1000MΩ Min.
Operating Temperature: -40°C Up To +85°C
Compliance: Lead Free And Rohs
Technical Documents
Please contact us for more information.
Micro USB connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Micro USB connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

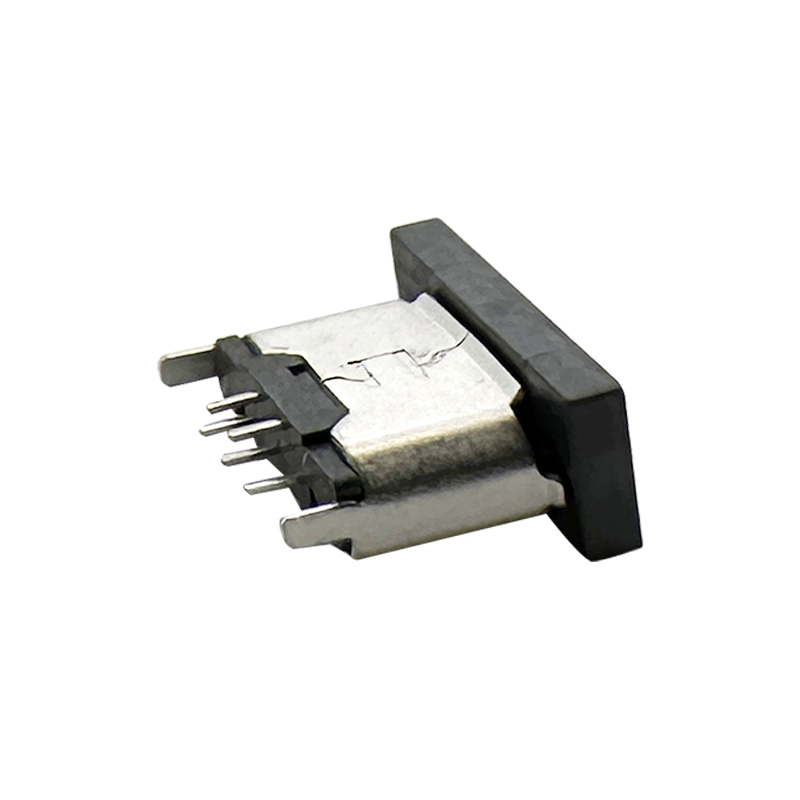

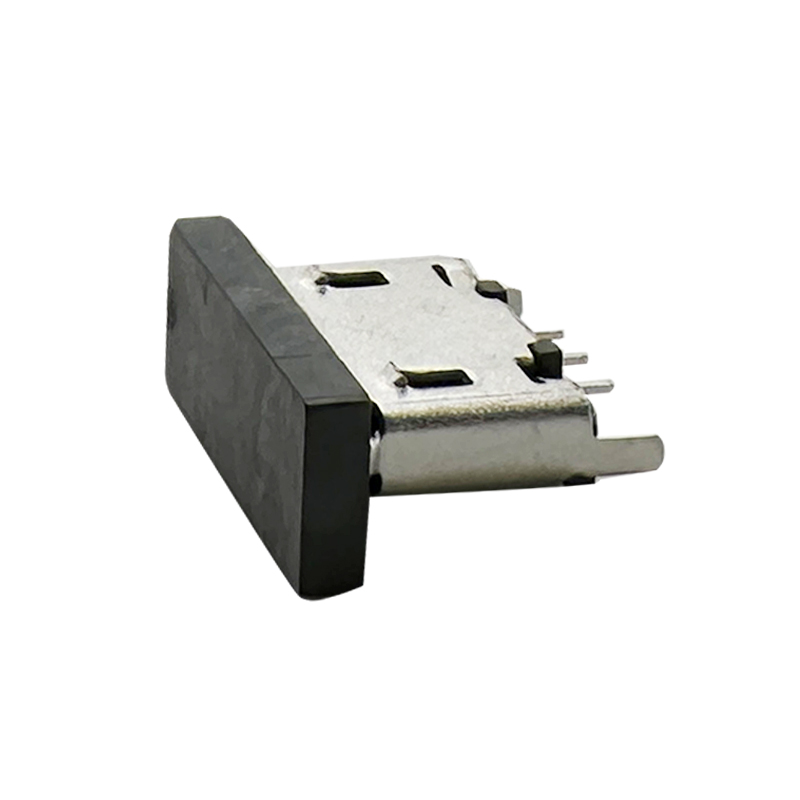

CONN RCPT 5POS MICRO USB Straigth :RHTAY233B
