Features
-Connector Type: Mini USB connectors are smaller than standard USB connectors and are widely used in various electronic devices for data transfer and power supply.
-SMD (Surface Mount Device): This indicates that the connector is designed for surface-mounting directly onto the surface of a PCB, rather than being inserted through holes and soldered from the other side (through-hole mounting).
-Connector Orientation: The "B type" designation typically refers to the shape or configuration of the Mini USB connector, which can vary slightly in dimensions and pin arrangement compared to other types like A type. The exact pin configuration can vary, so it's essential to consult specific datasheets for details.
-Number of Pins (5P): This specifies that the connector has 5 pins. Mini USB connectors typically have 5 pins arranged in a specific configuration: one for VCC (power), one for ground, and three for data (D+, D-, and sometimes an ID pin for OTG functionality).
Applications
1.DIY Electronics Projects
2.Prototype and Development
3.Medical Devices
4.Specialized Equipment
Specifications
Technical Documents
Please contact us for more information.
Mini USB connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Mini USB connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

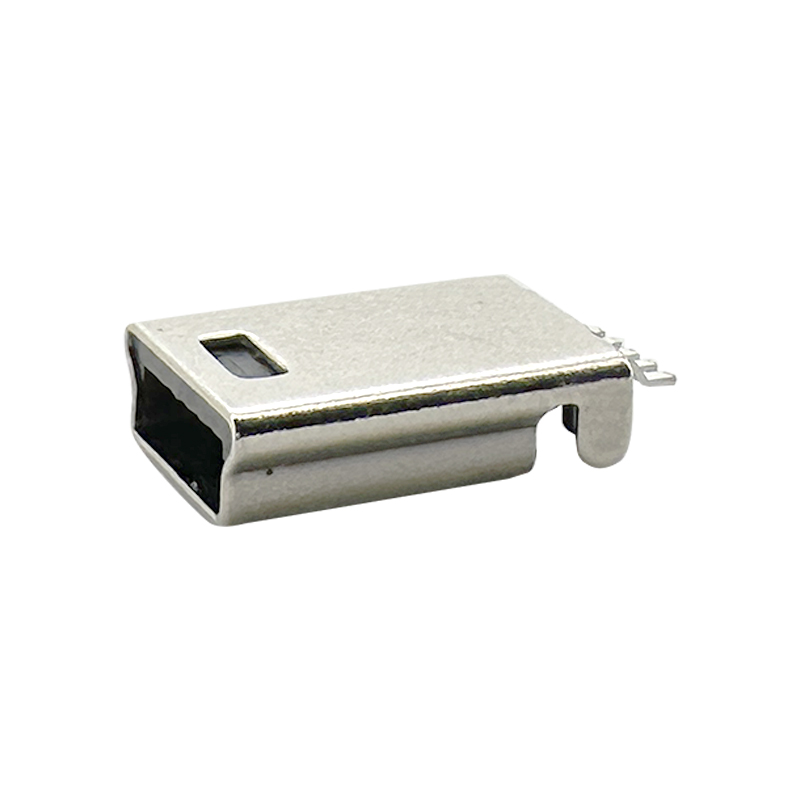

5P B type SMD Mini USB connector:RHTAY29-5MA
