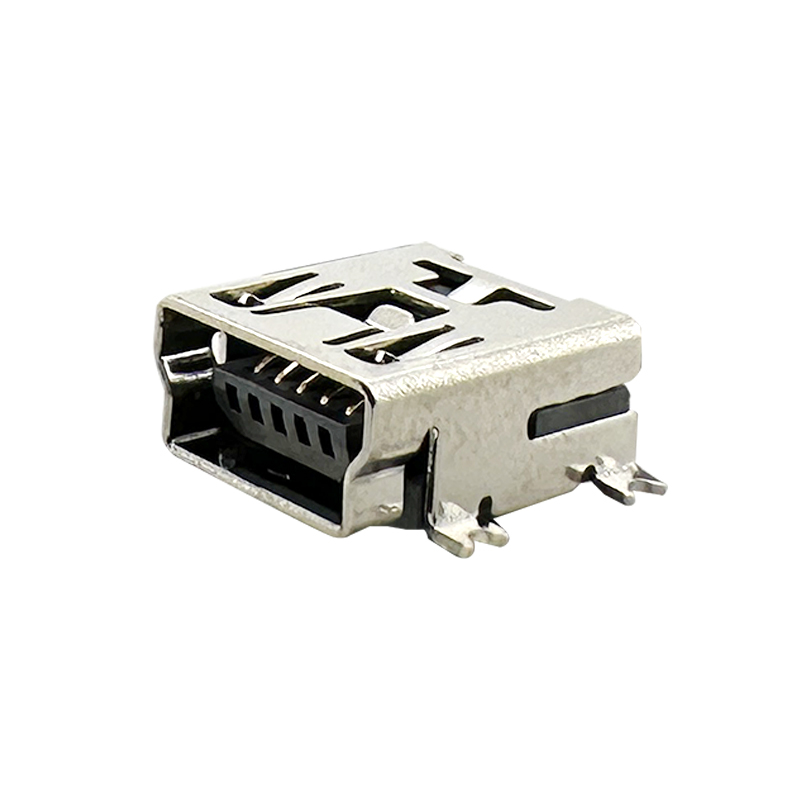

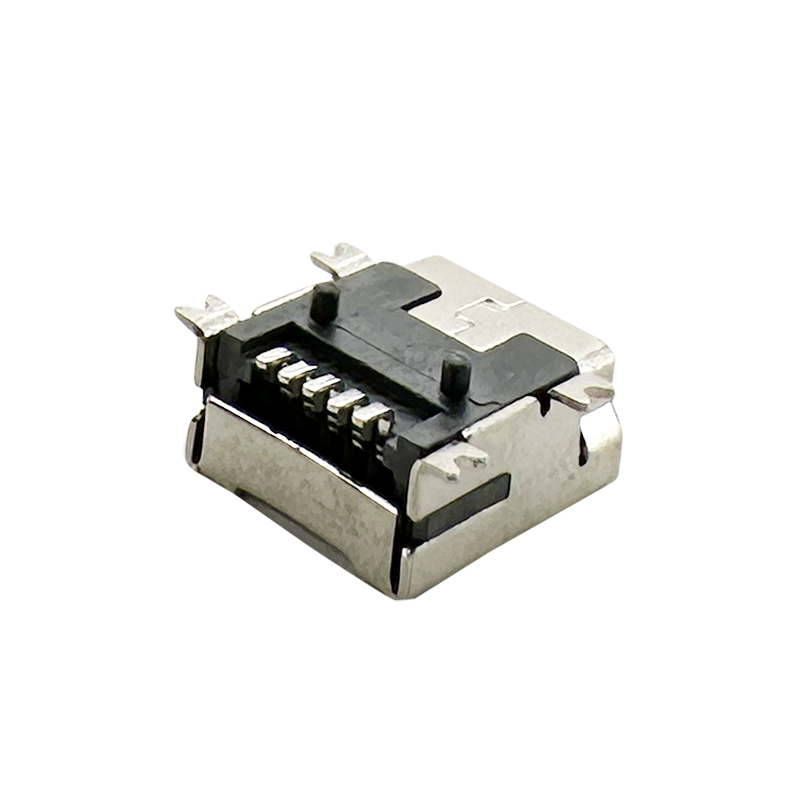

    5P AB type R/A SMD Mini USB connector socket :RHTAY29-6FB

    Series Part No: RHTAY29-6FB
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    Features

    -Connector Orientation: "R/A" stands for Right Angle, indicating that the connector is designed to be mounted on a PCB with the USB port facing at a right angle to the board surface. This orientation helps save space and can be more convenient in certain device designs.

    -SMD (Surface Mount Device): This indicates that the connector is designed for surface-mounting directly onto the surface of a PCB, rather than being inserted through holes and soldered from the other side (through-hole mounting).

    -AB Type: The "AB type" typically refers to the shape or configuration of the Mini USB connector, which can vary slightly in dimensions and pin arrangement compared to other types like B type. It's important to consult specific datasheets for exact pin configurations.

    -Number of Pins (5P): This specifies that the connector has 5 pins. Mini USB connectors typically have 5 pins arranged in a specific configuration: one for VCC (power), one for ground, and three for data (D+, D-, and sometimes an ID pin for OTG functionality).


    Applications

    1.Industrial Equipment

    2.Consumer Electronics

    3.DIY Electronics Projects

    4.Wearable Technology


    Specifications

    Material

    Housing:Hing Temperature Thermoplastic,UL94V-0 LCP,Black.

    Contact::Copper Alloy C2680/C5191.

    Shell:Copper Alloy C2680.

    Finish:

    Contact:Piated Gold In Mating Area;Tin On Solder Talls.

    Shell:Nickel Plating.

    Electrical:

    Current Rating:1.0A/Contact Terminal.

    Voltage Rating:30V DC

    Contact Resistance:50mΩ Max.

    Dielectric Withstanding Voltage:300 V AC AT Sea Level.

    Insulation Resistance:100MΩ Min.

    Connector Mate and Unmated Force

    Mate Force:3.0kgf Max.

    Unmated Force:0.7kgf Min.

    Terminal Retenion:0.5kgf Min.
