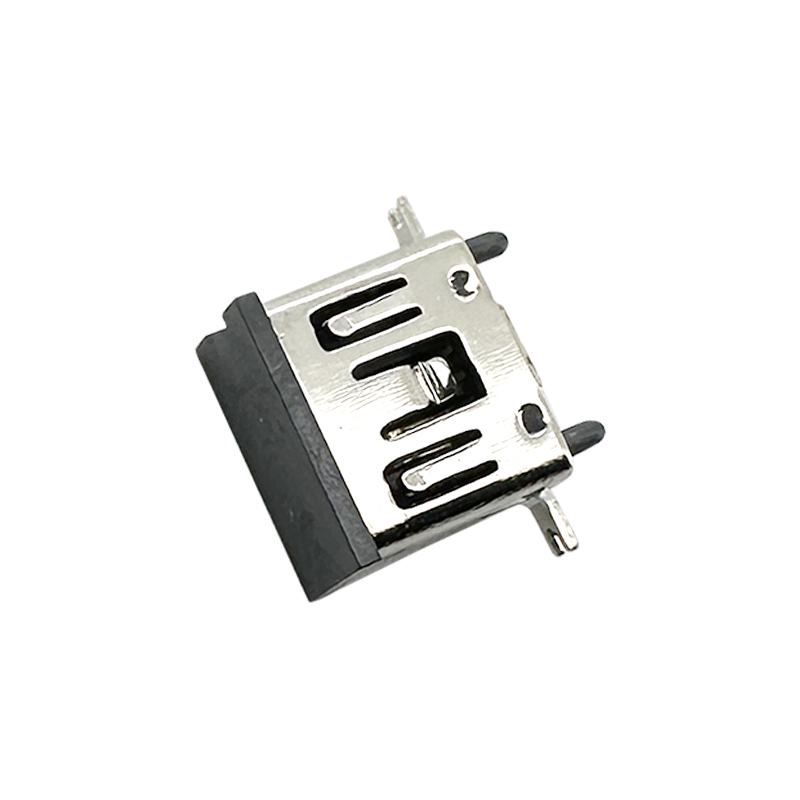

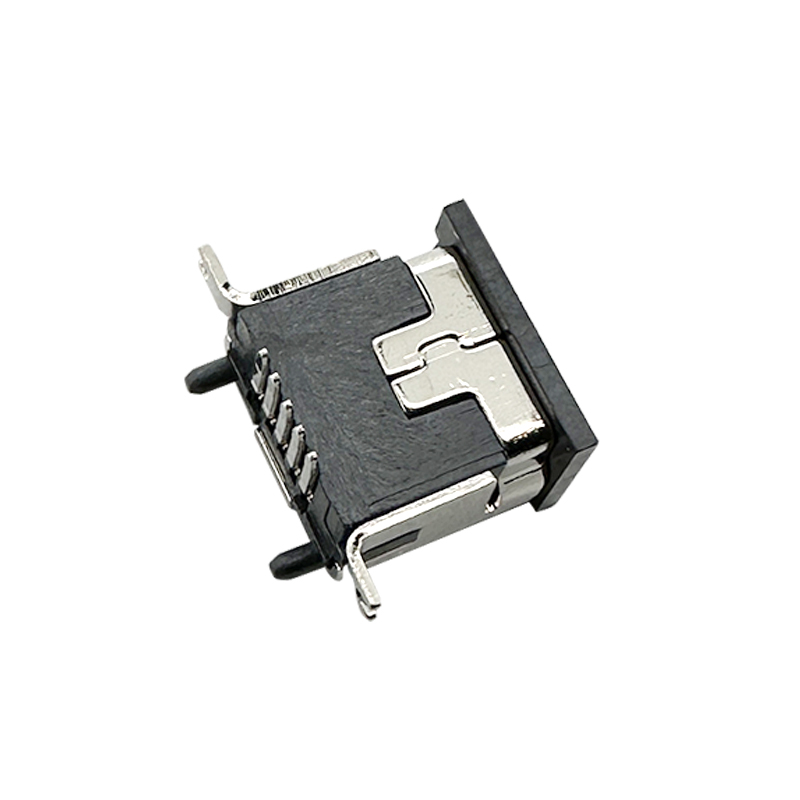

    Vertical 5P B type R/A SMD Mini USB connector socket :RHTAY29-5FJ

    Series Part No: RHTAY29-5FJ
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    Features

    -Mini USB B Type Connector: Designed to accommodate Mini USB B Type plugs, commonly used for data transfer and power connections in smaller devices.

    -Surface Mount Device (SMD): Intended for surface mount installation on printed circuit boards (PCBs), offering a space-saving solution suitable for modern electronic designs.

    -Vertical Mounting Orientation: The connector is designed to be mounted vertically on the PCB, allowing for efficient use of board space and optimal integration into device enclosures.

    -Number of Pins: Typically, these connectors have 5 pins, which include connections for power (VCC), ground (GND), and data transfer (D+ and D-).


    Applications

    1.Mobile Devices

    2.Digital Cameras and Camcorders

    3.Portable Media Players

    4.GPS Devices


    Specifications

    Material

    Housing:LCP UL94V-0,Black.

    Contact:Copper Alloy.

    Shell:Copper Alloy.

    Finish:

    Contact:Gold Plating On Contact Area.

    80u" SN Plating On Solder Tail Area,

    50u" Min,Nickel Underplating Overall.

    Electrical:

    Voltage Rating:30VAC RMS

    Current Rating:2.0A(pin 1 5);1.0A(pin 2 3 4).

    Contact Resistance:50mΩ Max.

    Insulation Resistance:100MΩ Min.

    Dielectric Withstanding Voltage:

                     500 V AC For 1Minute.

    Operating Life:5000 Cycles.


    Technical Documents

    Please contact us for more information.
