Features
-Durability: These connectors are designed for repeated insertion and removal cycles, ensuring durability and reliability over time. They are built to withstand the mechanical stresses associated with regular use in portable electronic devices.
-Compatibility: Mini USB connectors comply with USB standards and are compatible with USB 2.0 specifications for data transfer rates and power delivery.
-Materials: The connector body is typically made from durable materials such as plastic or sometimes metal, depending on the application's requirements for mechanical strength and electrical insulation.
-Space Efficiency: The right-angle orientation (R/A) and mid-mount design (SMD) make these connectors ideal for applications where space-saving on the PCB is crucial. They allow for a low-profile design while maintaining reliable connectivity.
Applications
1.Industrial Equipment
2.Consumer Electronics
3.DIY Electronics Projects
4.Prototype and Development
Specifications
Material
Housing:Hing Temperature Thermoplastic,UL94V-0 PBT/LCP,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Piated Gold In Mating Area;Tin On Solder Talls.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.
Technical Documents
Please contact us for more information.
Mini USB connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Mini USB connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

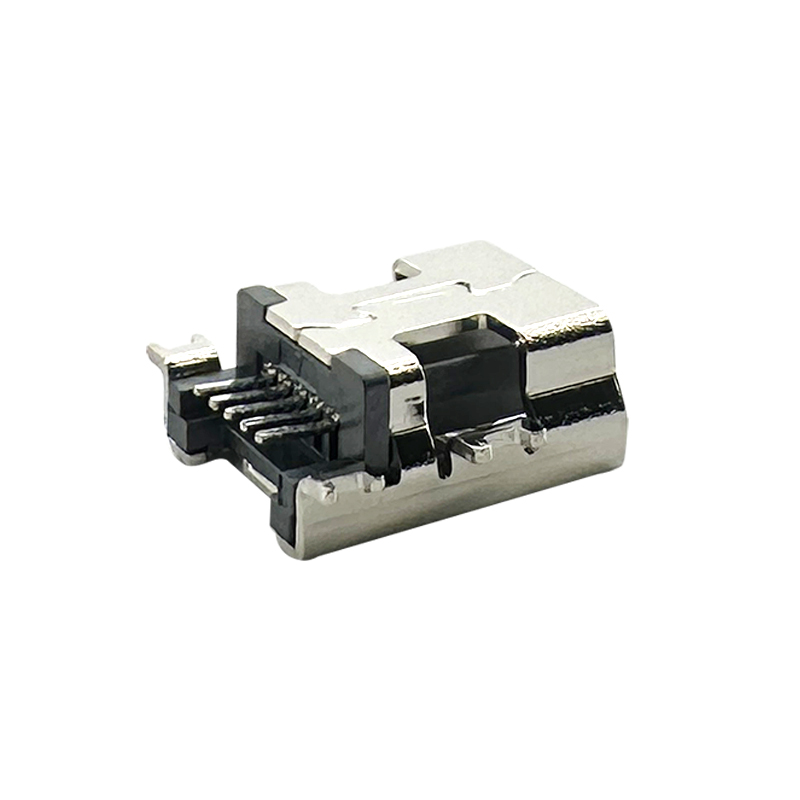

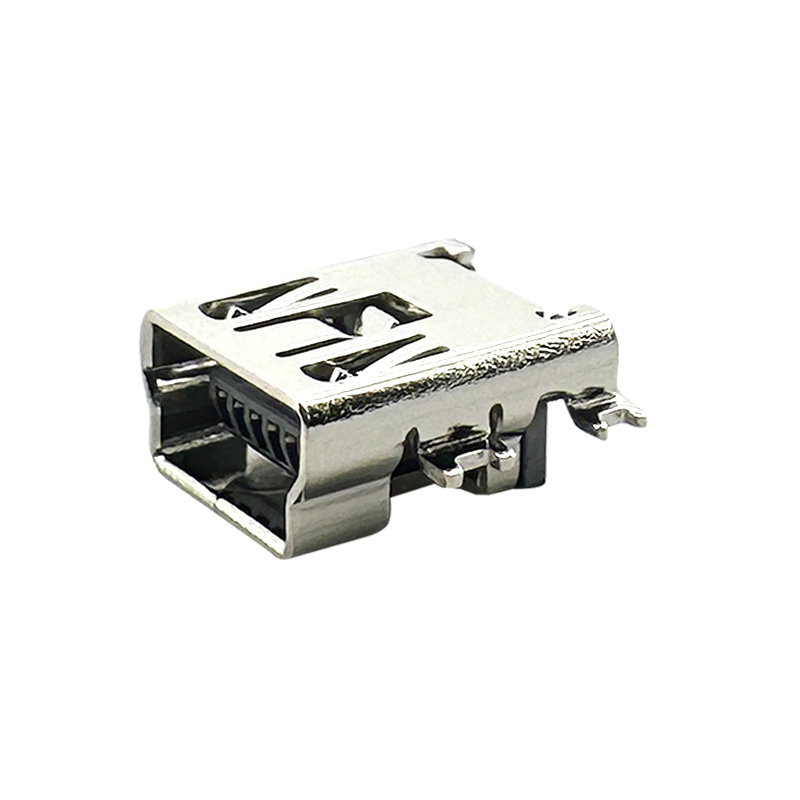

5P B type R/A SMD Mini USB connector socket mid mount :RHTAY29-5FE
