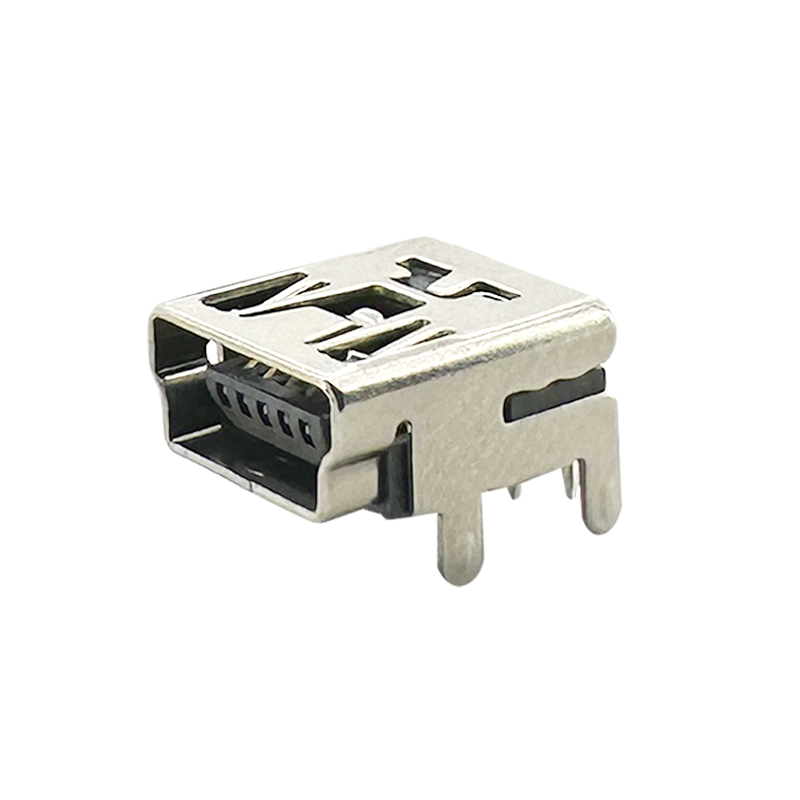

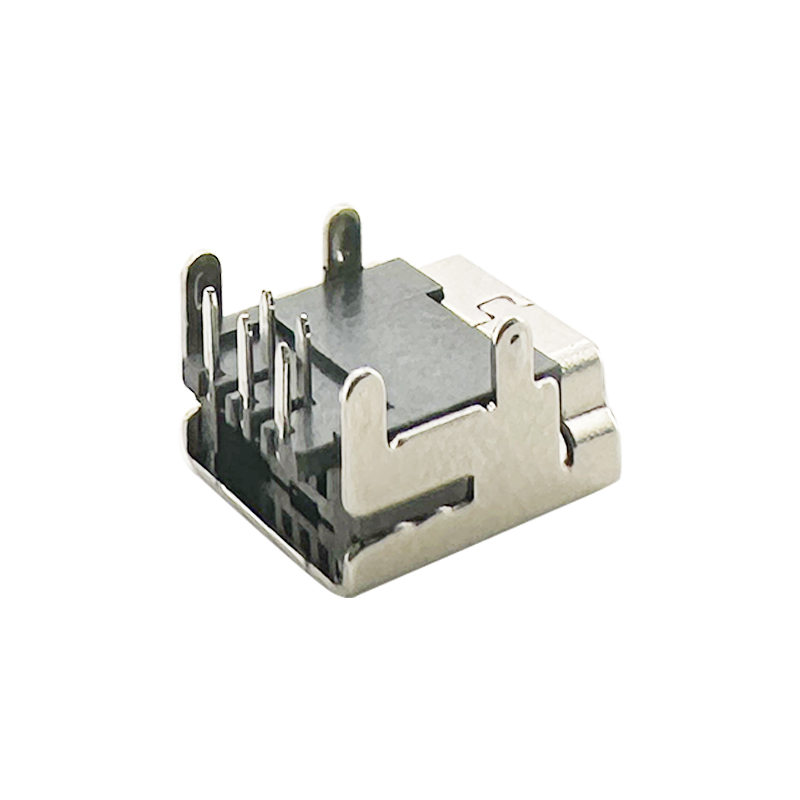

    5P B type R/A SMD Mini USB connector socket:RHTAY29-5FD

    Series Part No: RHTAY29-5FD
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    Features

    -Connector Orientation: The "B type" designation typically refers to the shape or configuration of the Mini USB connector, which can vary slightly in dimensions and pin arrangement compared to other types like A type. The exact pin configuration can vary, so it's essential to consult specific datasheets for details.

    -Number of Pins (5P): This specifies that the connector has 5 pins. Mini USB connectors typically have 5 pins arranged in a specific configuration: one for VCC (power), one for ground, and three for data (D+, D-, and sometimes an ID pin for OTG functionality).

    -Application: Mini USB connectors are commonly used in various consumer electronics, such as digital cameras, MP3 players, mobile phones, and other portable devices. They provide a reliable interface for data transfer and charging.

    -Durability: These connectors are designed for repeated insertion and removal cycles, ensuring durability and reliability over time. They are built to withstand the mechanical stresses associated with regular use in portable electronic devices.


    Applications

    1.Industrial Equipment

    2.Portable Consumer Electronics

    3.Automotive Electronics

    4.Wearable Technology


    Specifications

    Material

    Housing:Hing Temperature Thermoplastic,

                 UL94V-0 LCP,Black.

    Contact:Copper Alloy C2680.

    Shell:Copper Alloy C2680.

    Finish:

    Contact:Piated Gold In Mating Area;Tin On Solder Talls.

    Shell:Nickel Plating.

    Electrical:

    Current Rating:1.0A/Contact Terminal.

    Voltage Rating:30V DC

    Contact Resistance:50mΩ Max.

    Dielectric Withstanding Voltage:300 V AC AT Sea Level.

    Insulation Resistance:100MΩ Min.

    Connector Mate and Unmated Force

    Mate Force:3.0kgf Max.

    Unmated Force:0.7kgf Min.

    Terminal Retenion:0.5kgf Min.


    Technical Documents

    Please contact us for more information.
