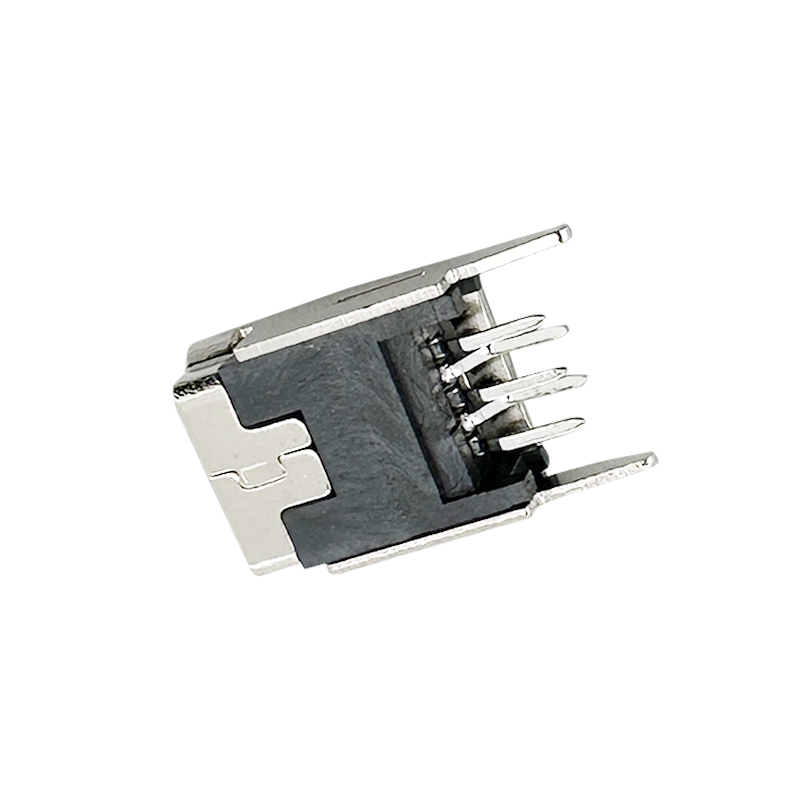

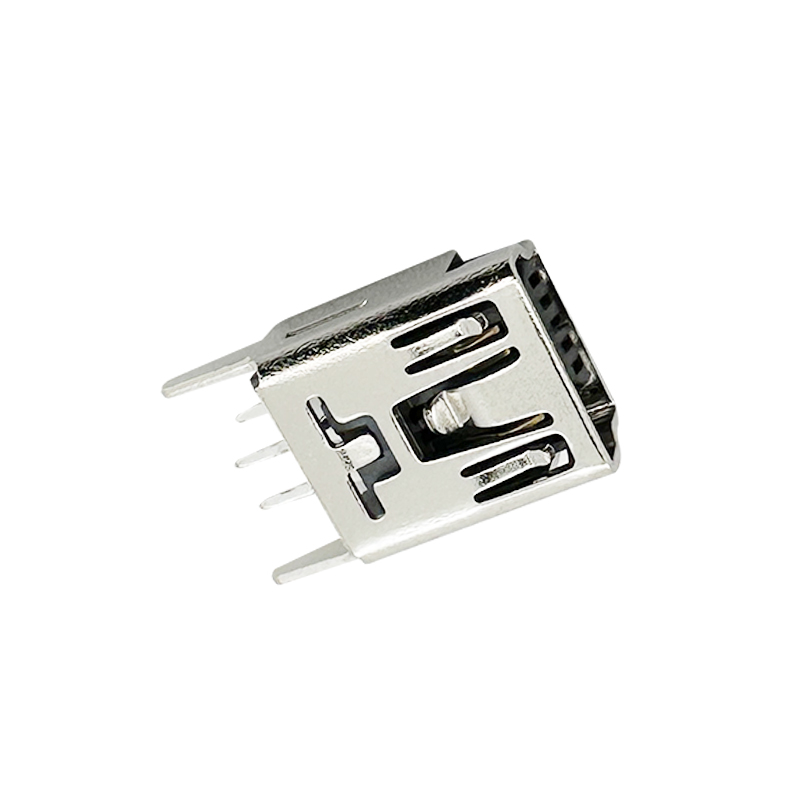

    5P B type R/A dip 180 Mini USB connector socket :RHTAY29-5FK

    Series Part No: RHTAY29-5FK
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    Features

    -Connector Type: Mini USB connectors are smaller in size compared to standard USB connectors and are commonly used in various electronic devices for data transfer and power supply.

    -Connector Orientation: "R/A" stands for Right Angle, indicating that the connector is designed to be mounted on a PCB with the USB port facing at a right angle to the board surface. This orientation helps save space and can be more convenient in certain device designs.

    -DIP (Dual In-line Package): This indicates that the connector has through-hole mounting pins, which are inserted into holes on a PCB and soldered to create a stable electrical and mechanical connection. DIP connectors are typically used in applications where a secure mounting method is required.

    -180 Degrees: The "180" in "dip 180" refers to the angle of the connector's pins relative to the body of the connector. In this case, it indicates that the pins are angled at 180 degrees, allowing for straight-through mounting on the PCB.


    Applications

    1.Industrial Applications

    2.Consumer Electronics

    3.DIY Electronics Projects

    4.Medical Devices


    Specifications

    Material

    Housing:Hing Temperature Thermoplastic,

                  UL94V-0 PBT/LCP,Black/White.

    Contact:Copper Alloy C2680.

    Shell:Copper Alloy C2680/SPCC.

    Finish:

    Contact:Piated Gold In Mating Area;Tin On Solder Talls.

    Shell:Nickel Plating.

    Electrical:

    Current Rating:1.5A/Contact Terminal.

    Voltage Rating:30V DC

    Contact Resistance:30mΩ Max.

    Dielectric Withstanding Voltage:500 V AC AT Sea Level.

    Insulation Resistance:1000MΩ Min.

    Connector Mate and Unmated Force

    Mate Force:3.75kgf Max.

    Unmated Force:1.02kgf Min.

    Terminal Retenion:1.2kgf Min.


    Technical Documents

    Please contact us for more information.
