Features
-Number of Pins (5P): This specifies that the connector has 5 pins. Mini USB connectors typically have 5 pins arranged in a specific configuration: one for VCC (power), one for ground, and three for data (D+, D-, and sometimes an ID pin for OTG functionality).
-Application: Mini USB connectors are commonly used in various consumer electronics, such as digital cameras, MP3 players, mobile phones, and other portable devices. They provide a reliable interface for data transfer and charging.
-Durability: These connectors are designed for repeated insertion and removal cycles, ensuring durability and reliability over time. They are built to withstand the mechanical stresses associated with regular use in portable electronic devices.
-Compatibility: Mini USB connectors comply with USB standards and are compatible with USB 2.0 specifications for data transfer rates and power delivery.
Applications
1.Portable Electronics
2.Mobile Phones and Tablets
3.Peripheral Devices
4.Automotive Electronics
Specifications
Material
Housing:Hing Temperature Thermoplastic,UL94V-0 PBT/LCP,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Piated Gold In Mating Area;Tin On Solder Talls.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.
Technical Documents
Please contact us for more information.
Mini USB connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Mini USB connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

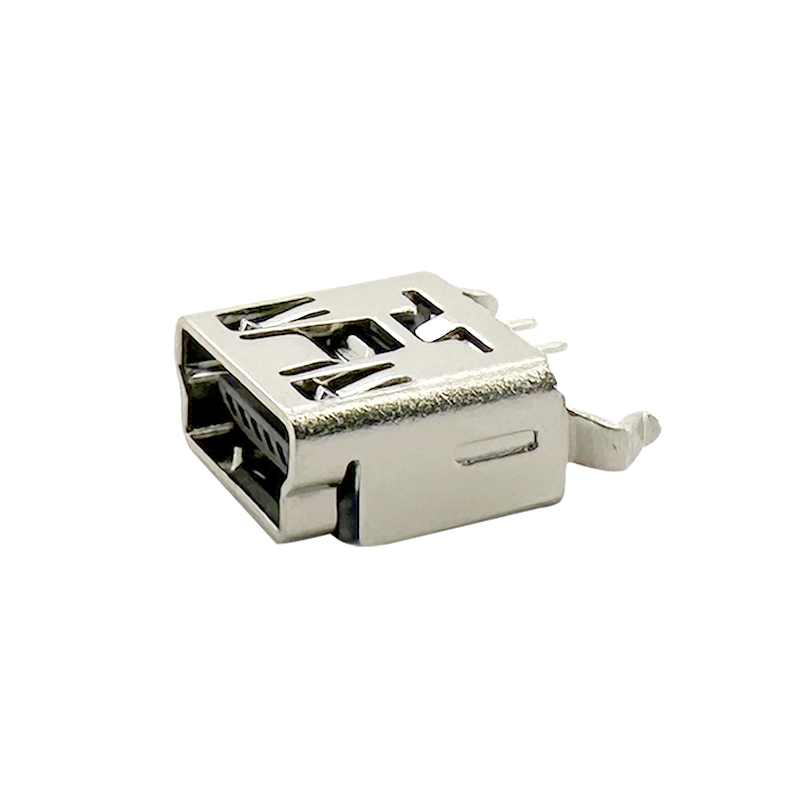

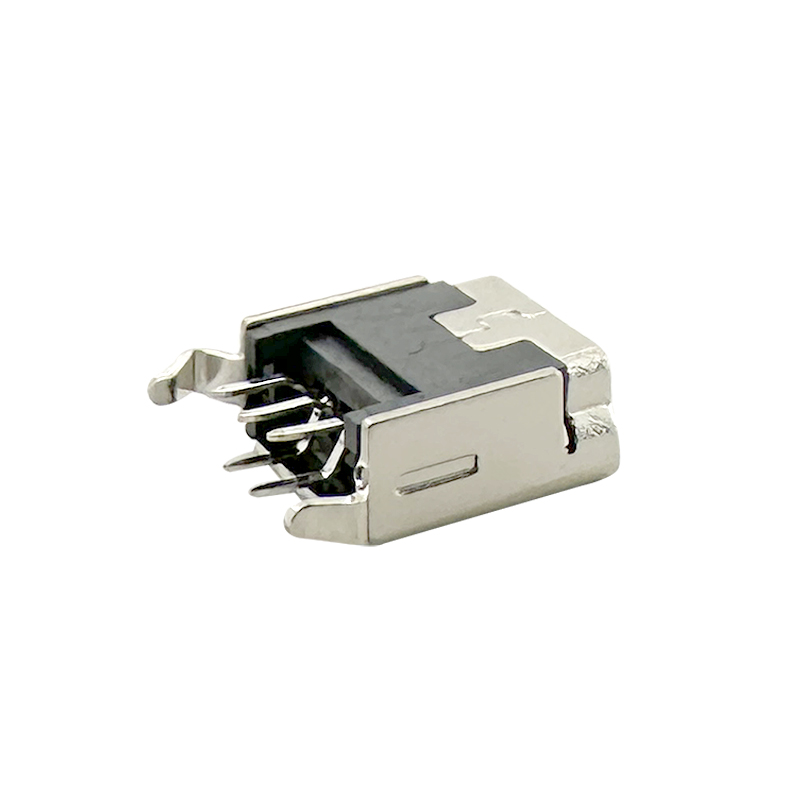

5P B type R/A dip 180 Mini USB connector socket:RHTAY29-5FC
