Features
-Data Transfer Speed: Supports data rates up to 400 Mbps (IEEE 394a) or up to 800 Mbps (IEEE 394b), depending on the version.
-Compatibility: Compatible with IEEE 1394 standards, ensuring interoperability between devices from different manufacturers.
-Reliability: Provides reliable data transmission with minimal signal loss, crucial for real-time data streaming and multimedia applications.
-Durability: Constructed from durable materials to withstand frequent plugging and unplugging cycles.
Applications
1.Digital Audio/Video Production
2.Computer Peripherals
3.Consumer Electronics
4.Medical Imaging and Healthcare
Specifications
How to order Example:
RHTAY394-6FD-B
W=White B=Black
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass
Shell:Copper Alloy
Pin Plated: Gold 3u" over 50u" nickel
Electrical:
Current Rating: 1.5 AMP
Insulator Resistance: 500M Ohm min
Dielectric Withstanding Voltage:500 VAC / 1Minute
Contact Resistance: 30m Ohm max.
Temperature: -20ºC ~+85ºC
Technical Documents
Please contact us for more information.
IEEE 1394 connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of IEEE 1394 connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

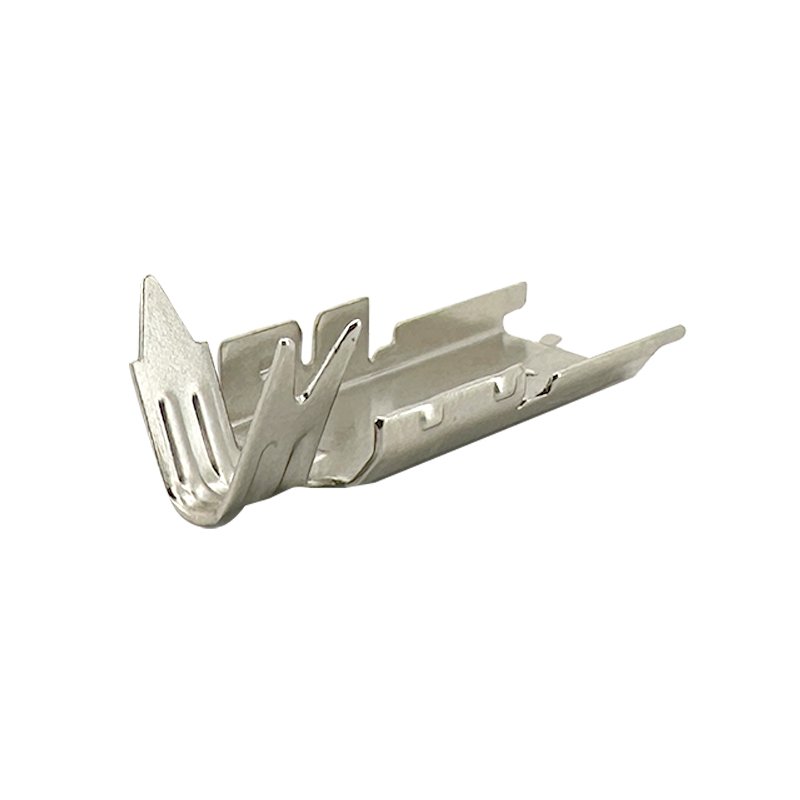

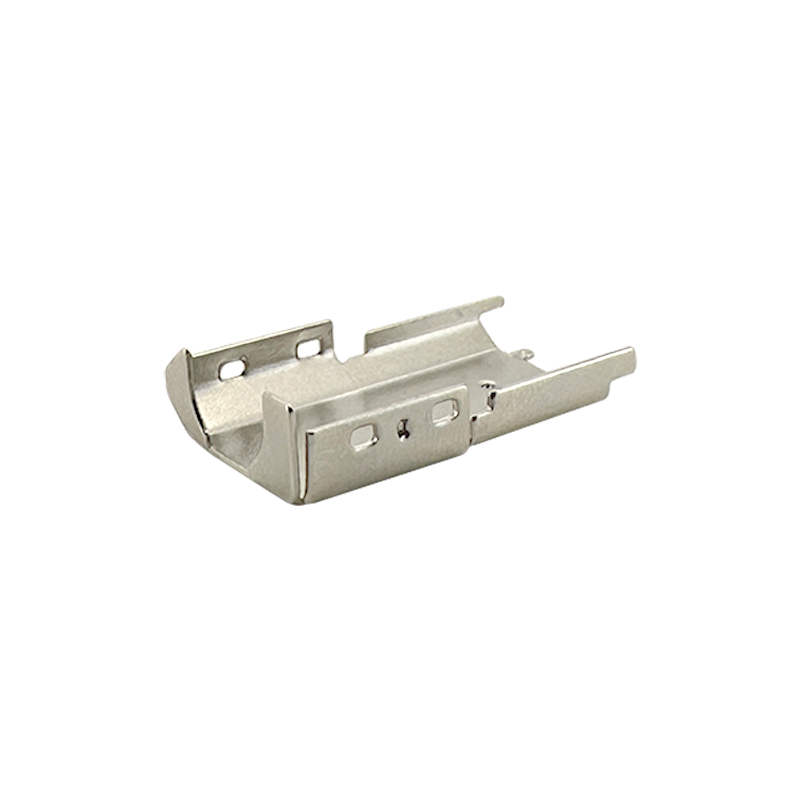

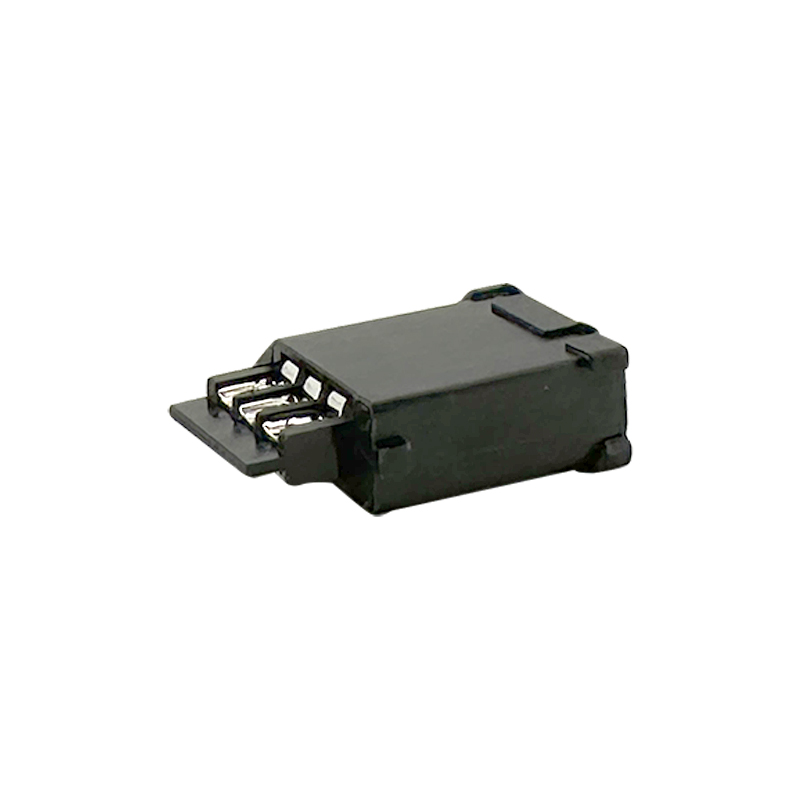

IEEE 1394 Connector Plug 6P :RHTAY394-6FD
