Features
-Orientation: 90 degrees (Right Angle)
-Termination: Designed for soldering directly onto PCBs, providing a secure and permanent electrical connection.
-Compatibility: Compliant with IEEE 1394 standards, supporting data rates up to 400 Mbps (IEEE 1394a) or even higher speeds (IEEE 1394b) for efficient data transmission.
-Design: Compact and space-efficient design suitable for applications where PCB space is limited or where a right-angle connector orientation is required for efficient PCB layout.
Applications
1.Digital Audio/Video Equipment
2.External Storage Devices
3.Computer Peripherals
4.Consumer Electronics
Specifications
How to order Example:
RHTAY394-6FC-B
W=White B=Black
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass
Shell:Copper Alloy
Pin Plated: Gold 3u" over 50u" nickel
Electrical:
Current Rating: 1.5 AMP
Insulator Resistance: 500M Ohm min
Dielectric Withstanding Voltage:500 VAC / 1Minute
Contact Resistance: 30m Ohm max.
Temperature: -20ºC ~+85ºC
Technical Documents
Please contact us for more information.
IEEE 1394 connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of IEEE 1394 connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

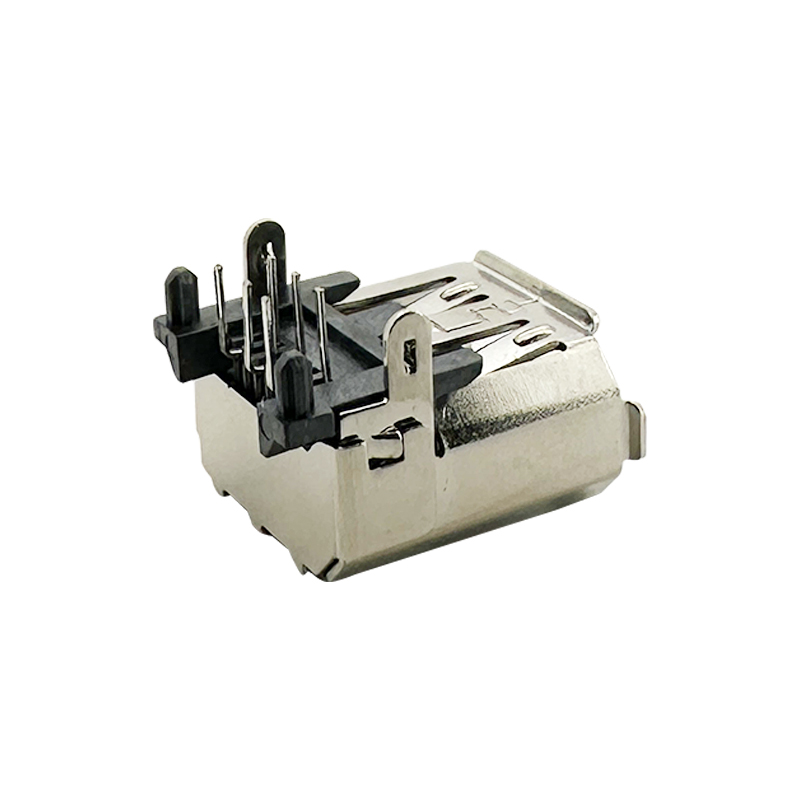

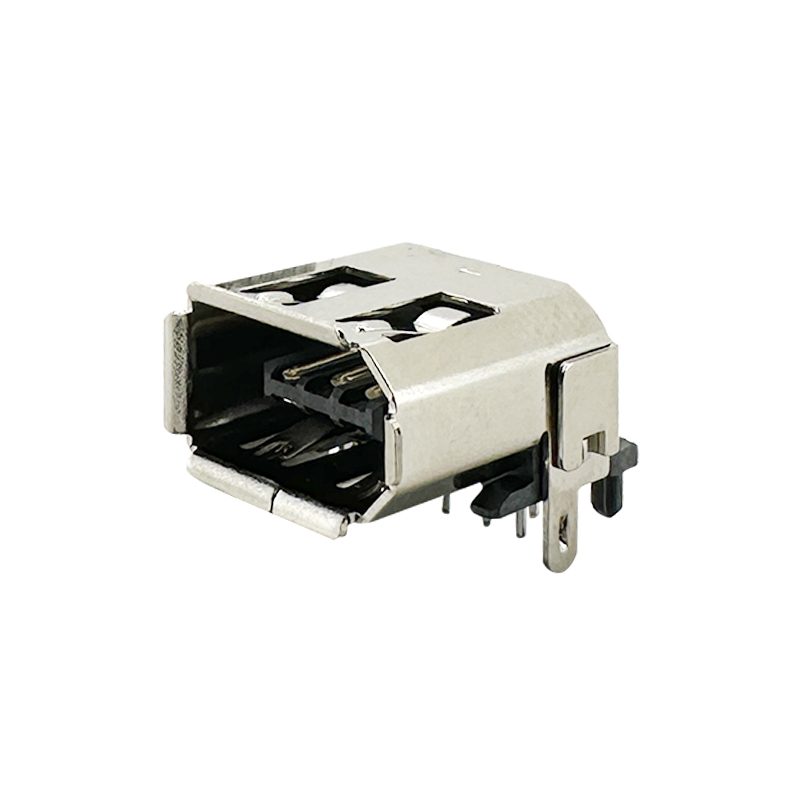

IEEE 1394 Connector 6P female pcb dip 90 :RHTAY394-6FC
