Features
-Connector Type: IEEE 1394 (FireWire/i.LINK)
-Pin Configuration: 6 pins
-Gender: Female
-Mounting Type: PCB (Printed Circuit Board) DIP (Dual In-line Package)
Applications
1.Medical Imaging Devices
2.Industrial Automation and Robotics
3.Aerospace and Defense
4.Computer Peripherals
Specifications
How to order Example:
RHTAY394-6FA-B
W=White B=Black
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass
Shell:Copper Alloy
Pin Plated: Gold 3u" over 50u" nickel
Electrical:
Current Rating: 1.5 AMP
Insulator Resistance: 500M Ohm min
Dielectric Withstanding Voltage:500 VAC / 1Minute
Contact Resistance: 30m Ohm max.
Temperature: -20ºC ~+85ºC
Technical Documents
Please contact us for more information.
IEEE 1394 connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of IEEE 1394 connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

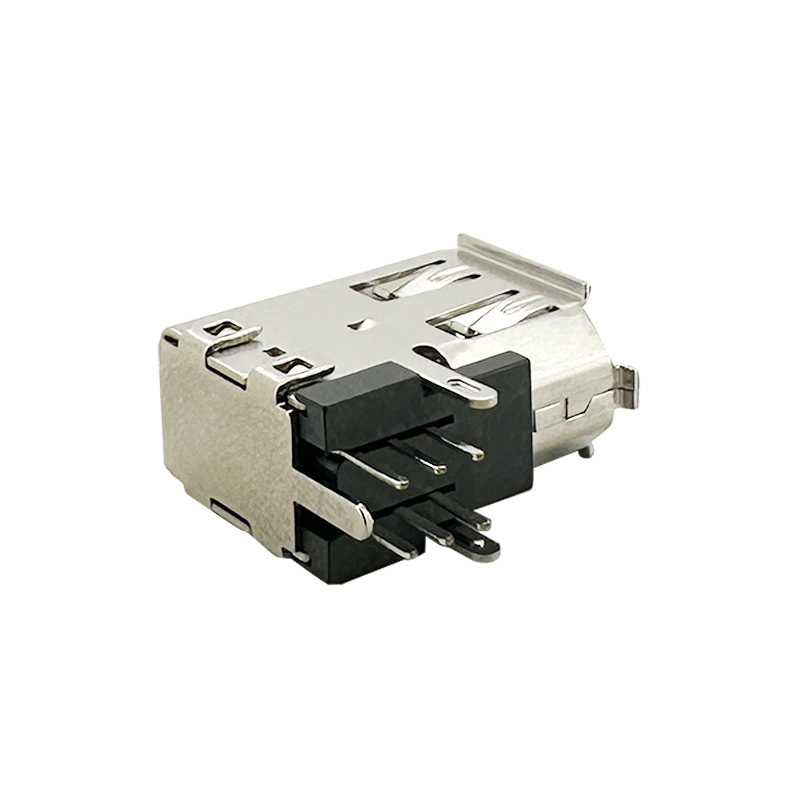

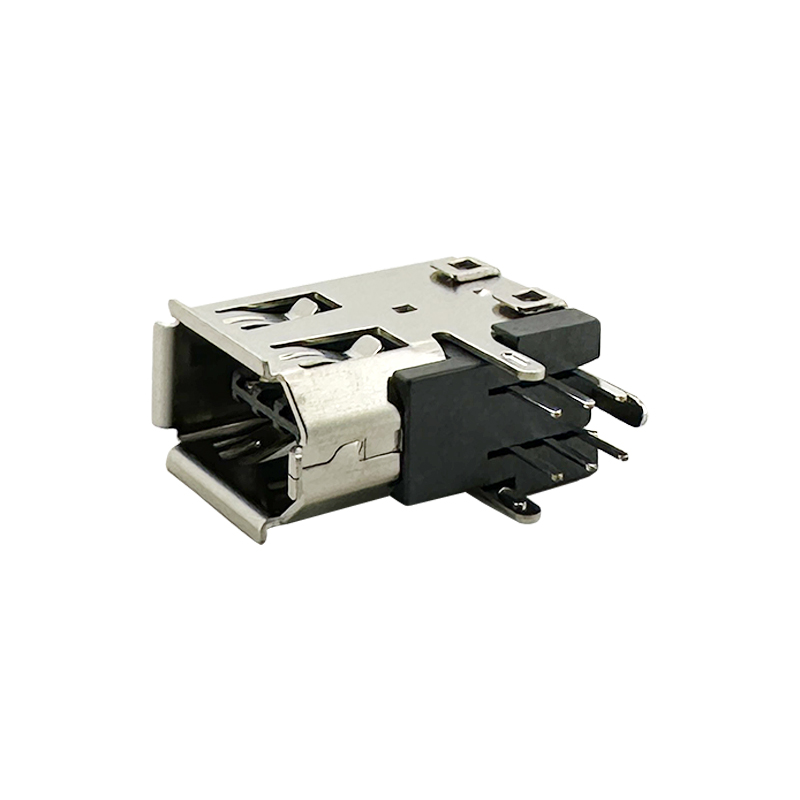

IEEE 1394 Connector 6P female pcb dip 90 :RHTAY394-6FA
