Features
-Connector Type: USB Type A connector, designed for standard USB applications including data transfer and power delivery.
-Orientation: DIP (Dual Inline Package) 90-degree angle, allowing the connector to be mounted perpendicular to the PCB, optimizing board space and layout.
-Number of Pins: Typically, 4 pins for USB 2.0 connectors and 9 pins for USB 3.0 connectors, adhering to the USB standards for data transfer and power delivery.
-Compatibility: Compliant with USB specifications (USB 2.0 or USB 3.0), ensuring compatibility with devices requiring standard USB connectivity.
Applications
1.Industrial Equipment
2.Networking Devices
3.Medical Devices
4.Audio-Visual Equipment
Specifications
Material
Housing:Hing Temperature Thermoplastic,
UL94V-0 PBT/LCP,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;
Tin On Solder Tails.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:
500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.
Technical Documents
Please contact us for more information.
USB 2.0 connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of USB 2.0 connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

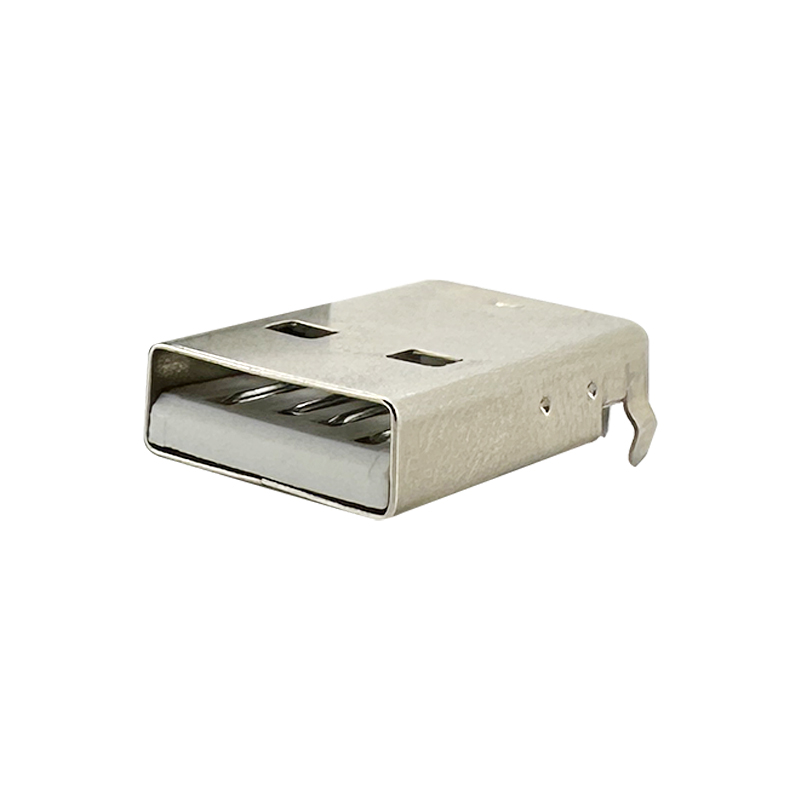

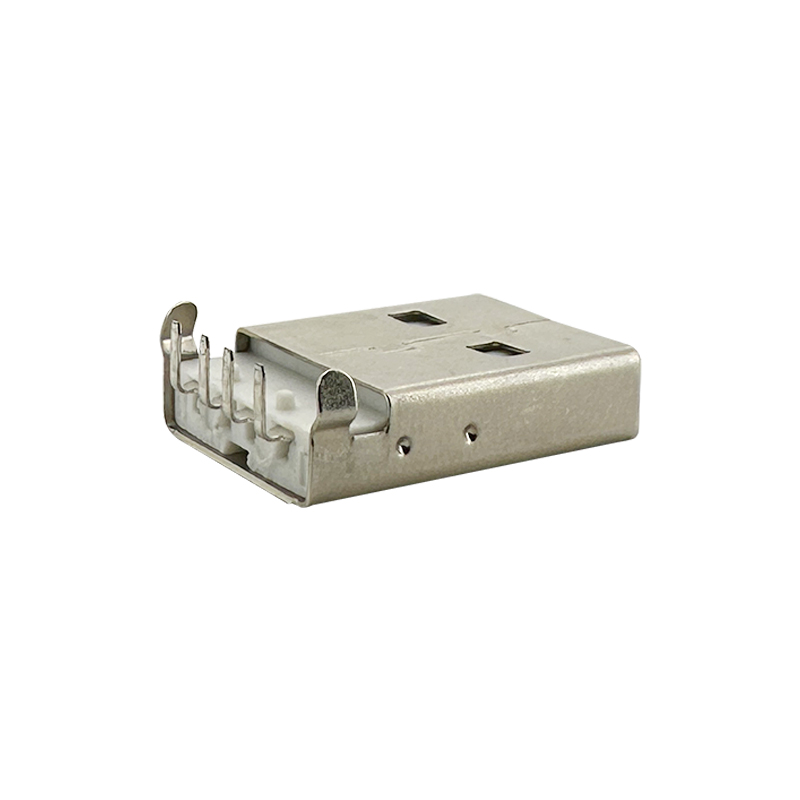

Dip 90 A Male Plug USB Connector:RHTAY80A
