Features
-Compact Design: SMD connectors are designed for surface mounting directly onto printed circuit boards (PCBs), allowing for a compact and space-efficient layout.
-Standard USB Compatibility: They adhere to USB standards (USB 1.1, USB 2.0, USB 3.0), ensuring compatibility with a wide range of devices and peripherals.
-Durability: These connectors are designed for durability, with robust construction that withstands repeated insertions and removals.
-High-Speed Data Transfer: Capable of supporting high-speed data transfer rates specified by USB standards, making them suitable for applications requiring rapid data exchange.
Applications
1.IoT Devices
2.Military and Aerospace
3.Gaming Consoles and Accessories
4.Point-of-Sale (POS) Systems
Specifications
Material
Housing:Hing Temperature Thermoplastic,
UL94V-0 PBT/LCP,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;
Tin On Solder Tails.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:
500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.
Technical Documents
Please contact us for more information.
USB 2.0 connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of USB 2.0 connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

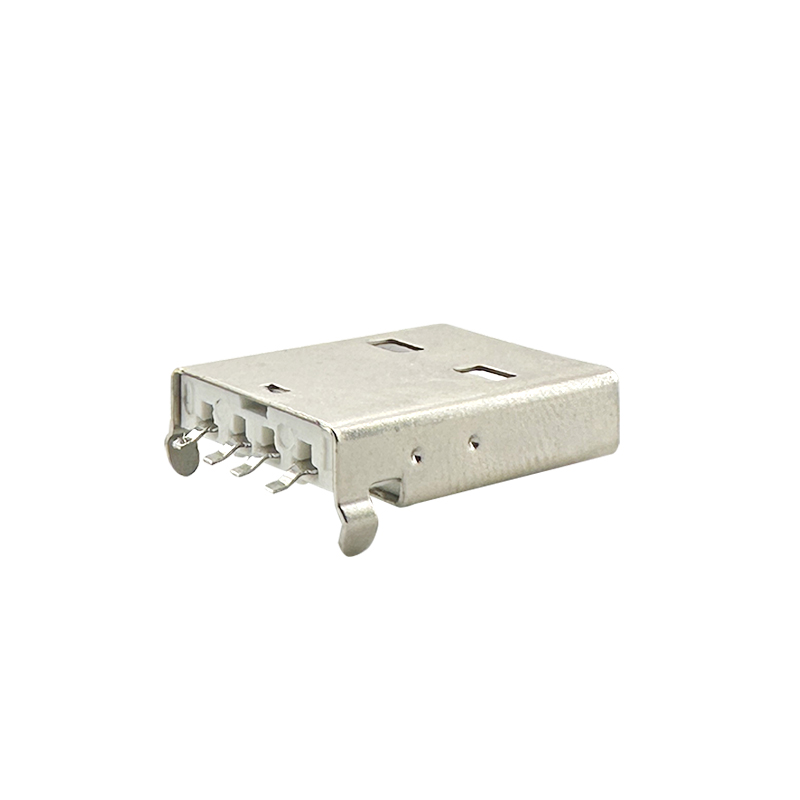

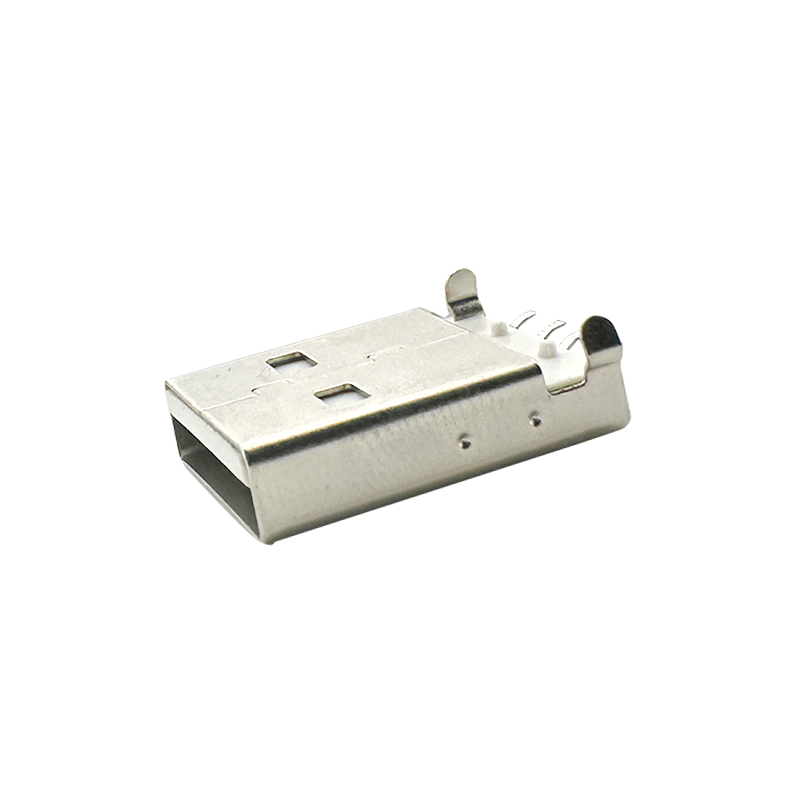

SMD A Male Plug USB Connector:RHTAY80B
