Features
-Form Factor: The connector is designed to fit into USB Type A male ports commonly found on computers, hubs, and various USB devices.
-Orientation: The 90-degree upright dip configuration means that the connector is mounted vertically on the circuit board, allowing for more compact designs and efficient use of space.
-Pin Configuration: It adheres to the standard USB pinout, with four pins typically used for data transfer and power (VCC, Data+, Data-, GND).
-Compatibility: It is compatible with USB 1.1, USB 2.0, and USB 3.0 standards, depending on the specific connector specifications and design.
Applications
1.Medical Devices
2.Automotive Electronics
3.Telecommunications
4.IoT Devices
Specifications
Material
Housing:Hing Temperature Thermoplastic,UL94V-0 PBT,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;Tin On Solder Tails.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.
Technical Documents
Please contact us for more information.
USB 2.0 connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of USB 2.0 connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

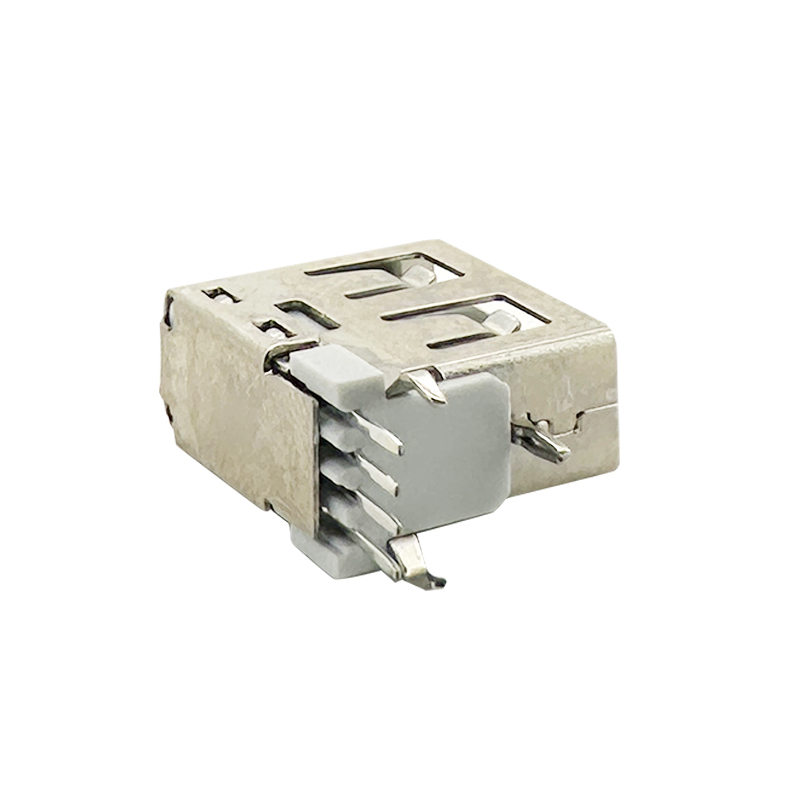

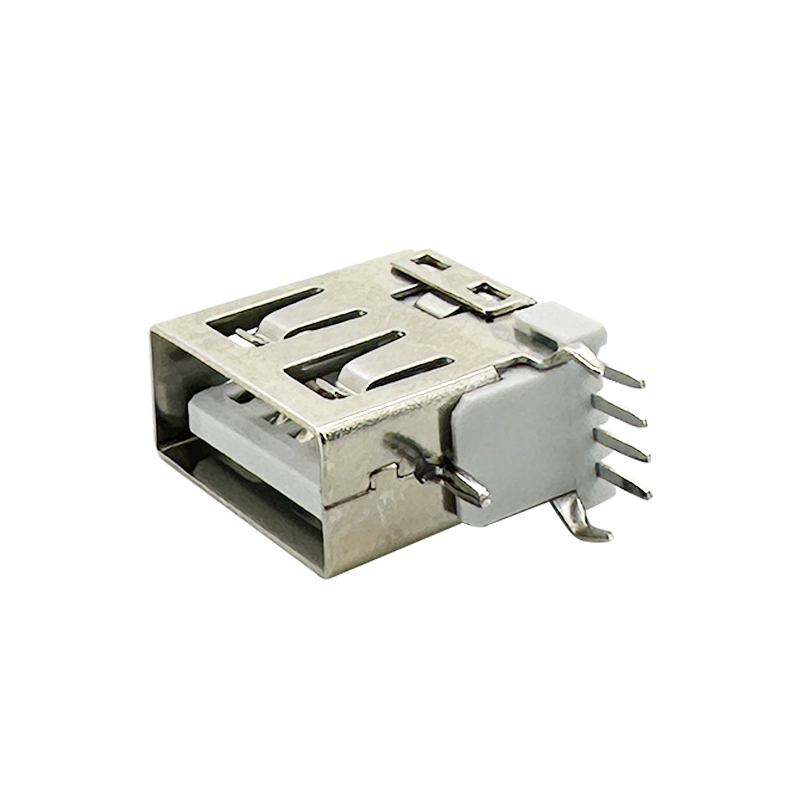

upright dip 90 A Female USB Connectors :RHTAY815
