Features
-Shielding: Often includes shielding to protect against electromagnetic interference (EMI), which helps maintain signal integrity during data transmission.
-Connector Type: Female USB connectors are designed to receive male USB plugs, enabling devices to connect for data transfer, charging, and other functionalities.
-Mounting Type: Surface mount device (SMD) connectors provide secure attachment to the PCB during soldering, ensuring mechanical stability and reliable electrical connections.
-Compatibility: Compatible with a wide range of electronic devices and applications that require USB connectivity, such as smartphones, tablets, laptops, consumer electronics, and industrial equipment.
Applications
1.Mobile Devices
2.Laptops and Ultrabooks
3.Consumer Electronics
4.Networking Equipment
Specifications
Material
Housing:Hing Temperature Thermoplastic,
UL94V-0 LCP,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;Tin On Solder Tails.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.
Technical Documents
Please contact us for more information.
USB 2.0 connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of USB 2.0 connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

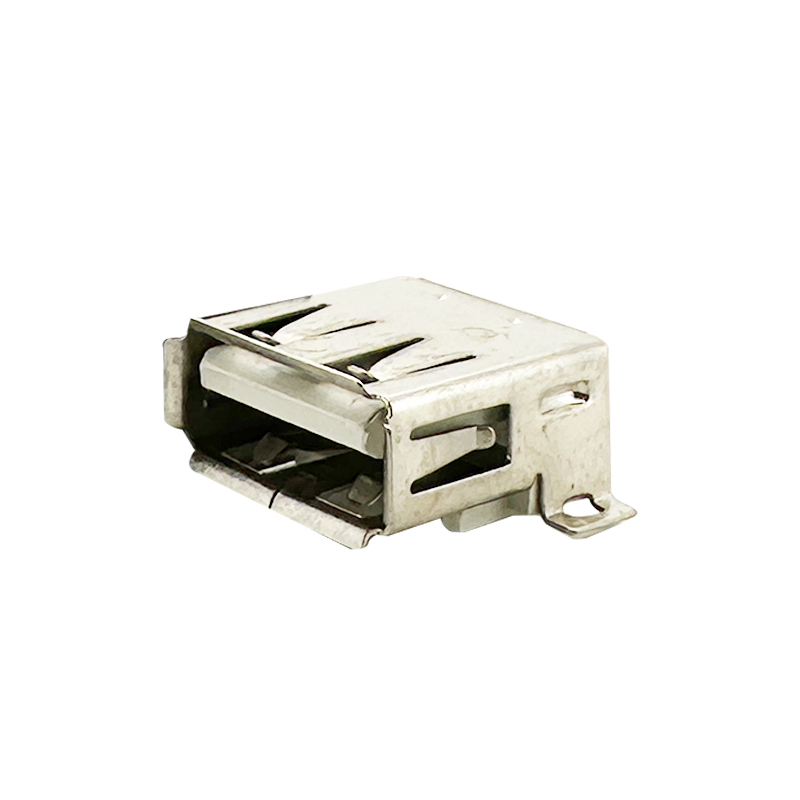

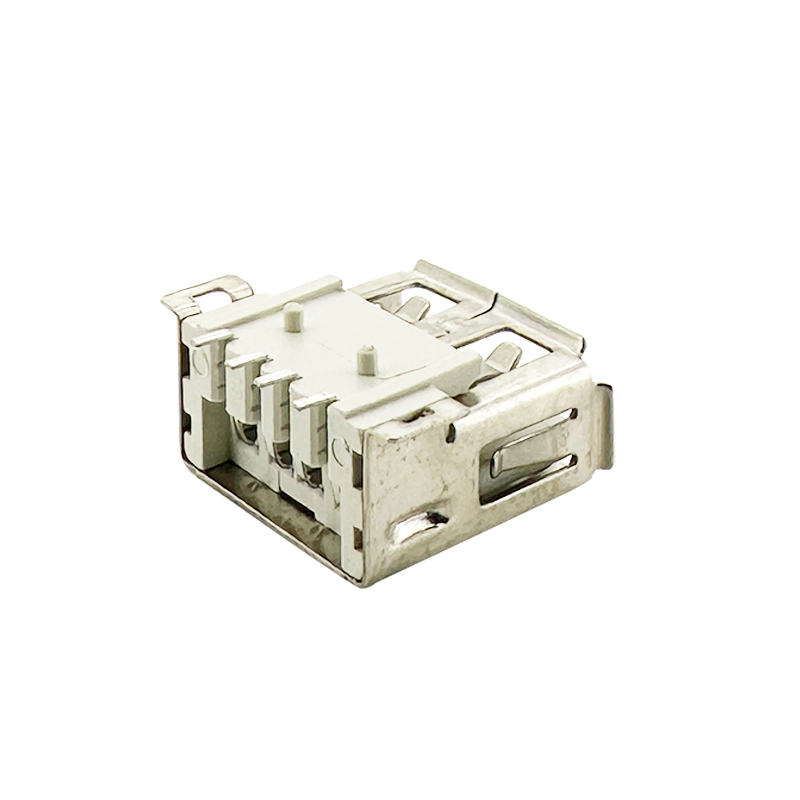

A Female SMD USB Connector :RHTAY813
