Features
-Shielding: Often includes shielding to protect against electromagnetic interference (EMI), which helps maintain signal integrity during data transmission.
-Mounting Type: Designed for through-hole mounting, which provides mechanical stability and secure attachment to the PCB during soldering.
-Connector Type: Female USB connectors are designed to receive male USB plugs, enabling devices to connect for data transfer, charging, and other functionalities.
-Compatibility: Compatible with a wide range of electronic devices and applications that require USB connectivity, such as computers, peripherals, consumer electronics, and industrial equipment.
Applications
1Medical Devices
2.Automotive Electronics
3.Networking Equipment
4.Test and Measurement Instrumentss.
Specifications
Material
Housing:Thermoplastic plastics.
Terminals:Copper Alloy.Gold plated in contact area;
Tin plated in termination Nickel plated overall.
Shell:Copper Alloy.Nickel plated overall.
Electrical:
Rating Current:1.5Ampere.
Rating Voltage:30V Max.
Contact Resistance:30mΩ Mill.
Insulation Resistance:1000MΩ Min.
Mechanical Characteristics:
Connector Mating force:35N Max (3.57Kgf)
Connector Unmating force:10N Min (1.02Kgf)
Durability:1500 Cycles.
Environment Characteristics:
Operating temperature:-0 °C to +50 °C
Technical Documents
Please contact us for more information.
USB 2.0 connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of USB 2.0 connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

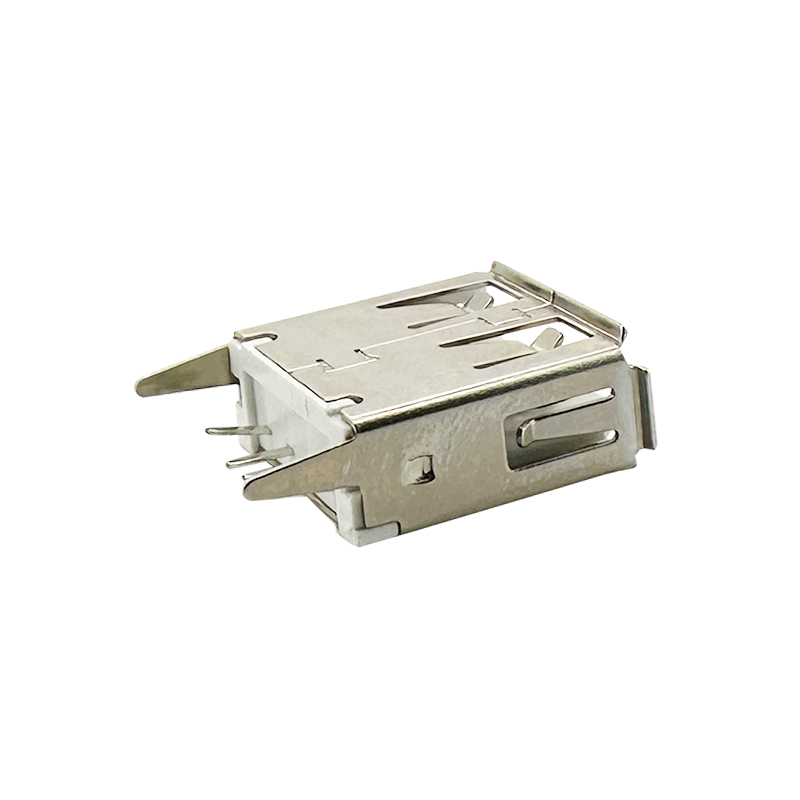

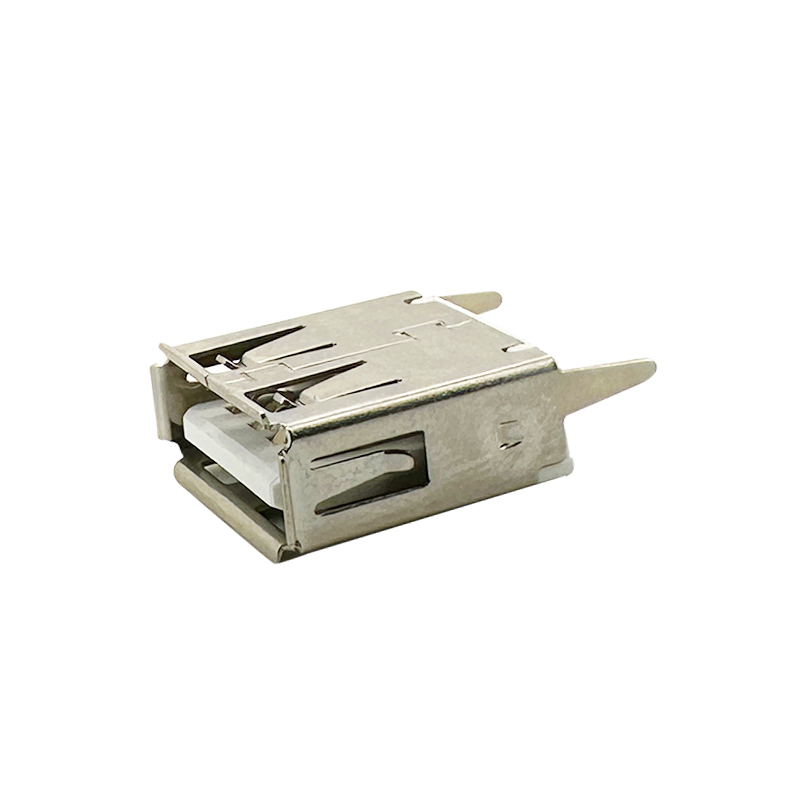

A Female Dip 180 USB Connector:RHTAY830
