Features
-USB Standard Compatibility: Supports various USB standards such as USB 2.0 or USB 3.0, depending on the specific model. USB 3.0 connectors offer higher data transfer rates compared to USB 2.0.
-Orientation: The 180-degree orientation indicates that the connector is designed to be mounted horizontally on the PCB (Printed Circuit Board), with the pins extending out from both sides of the connector body.
-Number of Pins: Typically, USB connectors have four pins: VCC (Power), Data+, Data-, and Ground (GND). These pins facilitate power delivery and data transfer between devices.
-Mechanical Durability: Designed to withstand multiple insertion and removal cycles, ensuring reliable performance over the connector's lifespan.
Applications
1.Motherboards and Expansion Cards
2.Embedded Systems
3.Consumer Electronics
4.Industrial Equipment
Specifications
Material
Housing:Hing Temperature Thermoplastic,UL94V-0 PBT/LCP,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;Tin On Solder Tails.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1
Technical Documents
Please contact us for more information.
USB 2.0 connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of USB 2.0 connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

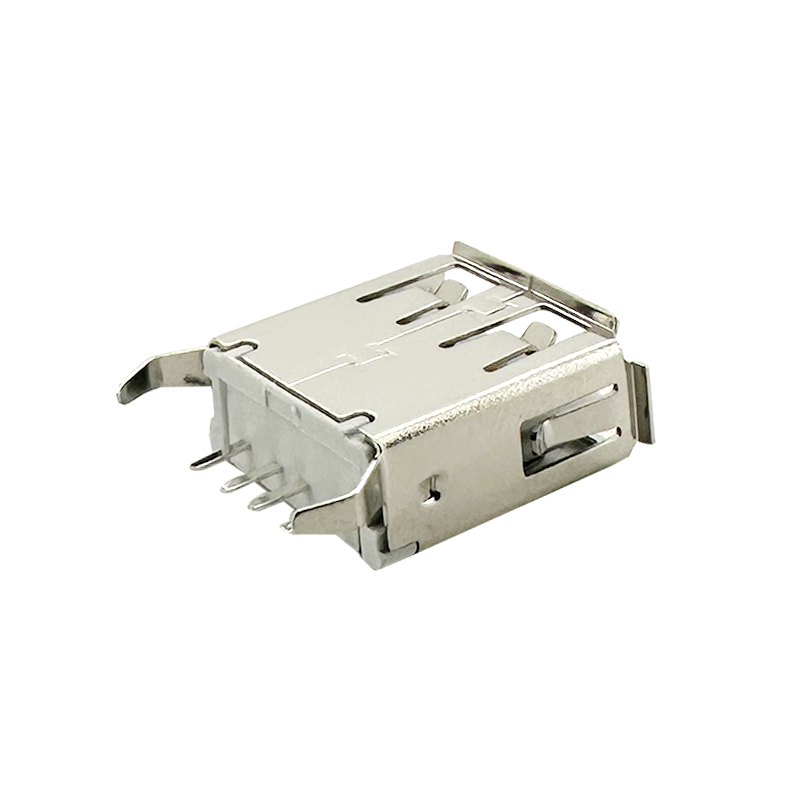

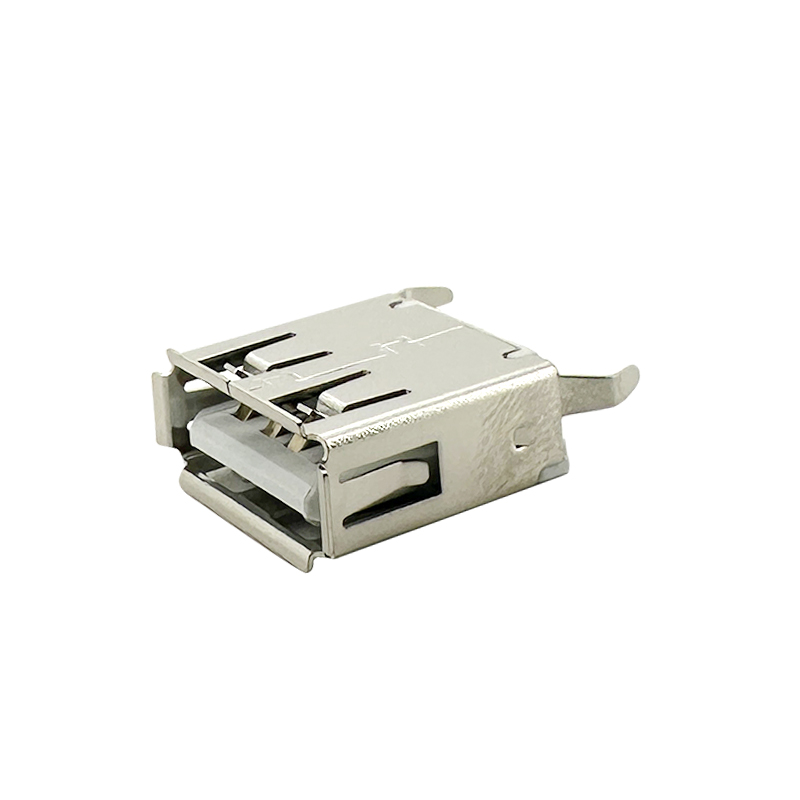

A Female Dip 180 USB Connector:RHTAY81B&RHTAY823&RHTAY831
