Features
-Backward Compatibility: While primarily used for USB 3.0 devices, USB B connectors are backward compatible with USB 2.0 and USB 1.1 standards, allowing them to work with older USB devices at lower speeds.
-Mechanical Durability: Designed to withstand frequent insertion and removal cycles, ensuring longevity and reliability.
-Shielding: Often includes shielding to protect against electromagnetic interference (EMI), which helps maintain signal integrity during high-speed data transmission.
-Mounting Type: Designed for through-hole mounting (solder type), providing mechanical stability and secure attachment to the PCB during assembly.
Applications
1.External Hard Drives and SSDs
2.Printers and Scanners
3.Digital Cameras and Camcorders
4.Audio Interfaces and MIDI Devices
Specifications
Material:
Housing: 30% Glass filled PBT UL94V-0.
Contacts: Phosphor Bronze
Pin Plated: Gold 3u" over 50u" nickel
Electrical:
Current Rating: 1 AMP
Insulator Resistance: 1000M Ohm min. at 500 VDC
Dielectric Withstanding Voltage:500 VAC / Minute
Contact Resistance: 30m Ohm max.
Technical Documents
Please contact us for more information.
USB 2.0 connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of USB 2.0 connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

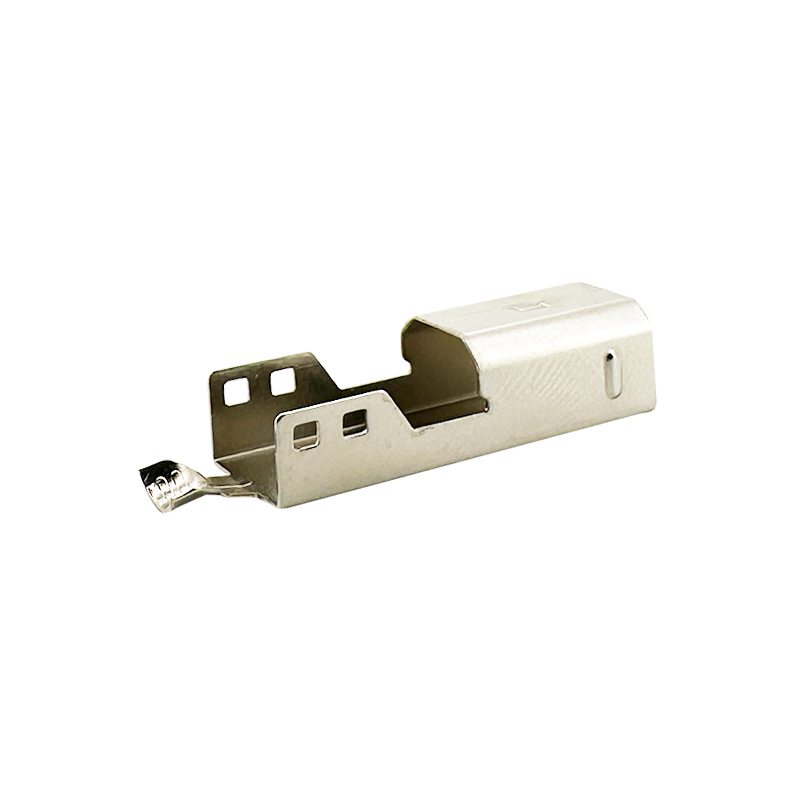

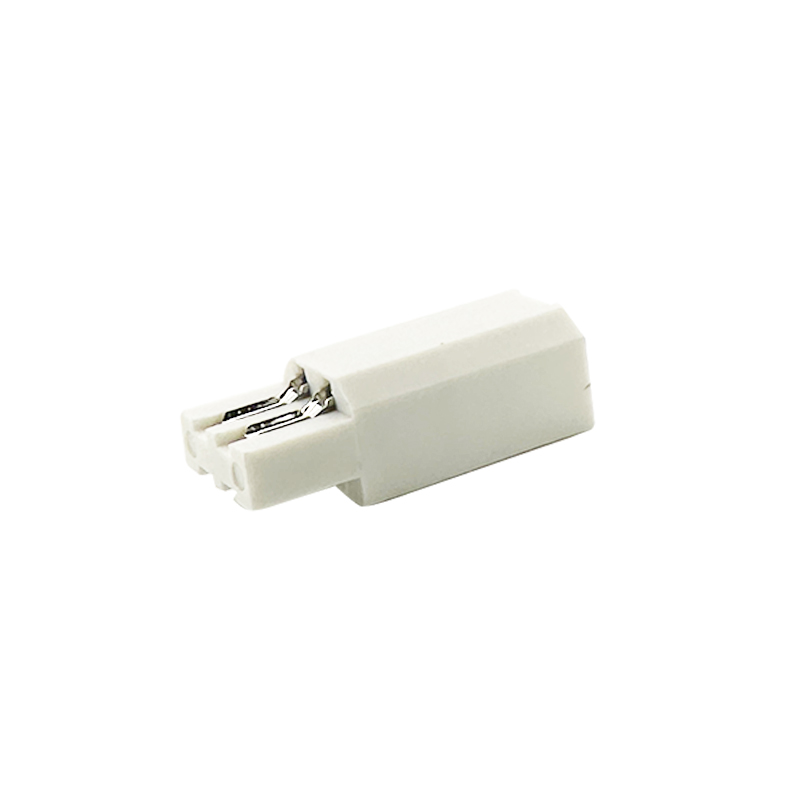

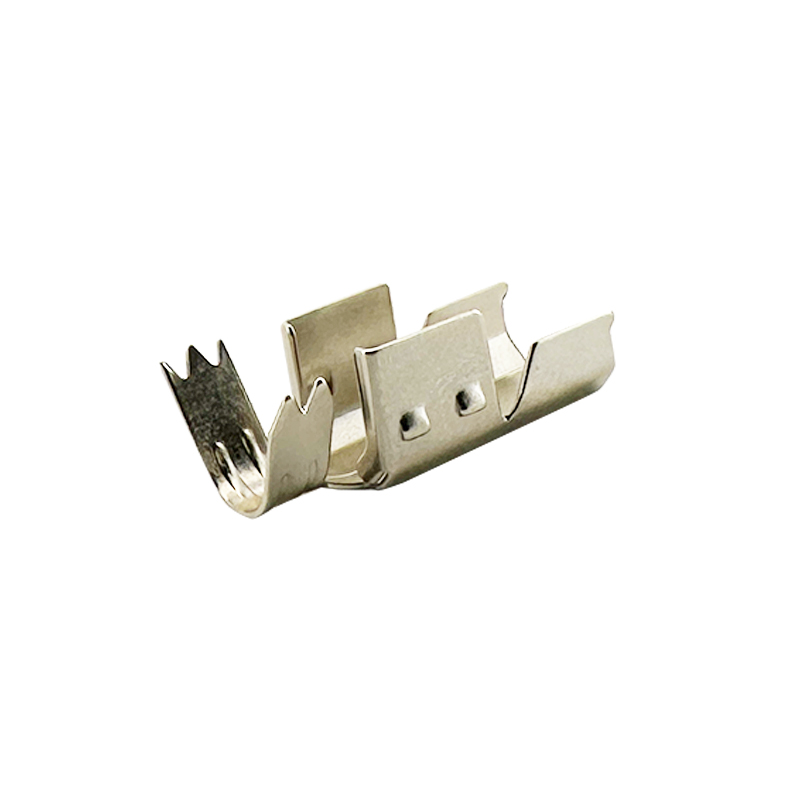

B Male Solder USB Connector:RHTAYA84
