Features
-USB Standard Compatibility: Supports USB standards such as USB 2.0 or USB 3.0, depending on the specific model. USB 3.0 offers higher data transfer rates (up to 5 Gbps) compared to USB 2.0.
-Connector Type: B female connectors are typically used as upstream connectors, found on devices such as printers, scanners, and other peripherals that connect to a computer or host device.
-Surface Mount Design: Designed for direct soldering onto the surface of a printed circuit board (PCB), which is space-efficient and suitable for modern compact electronic devices.
-Mechanical Durability: Designed to withstand multiple insertion and removal cycles, ensuring longevity and reliability in various applications.
Applications
1.Industrial Automation
2.Medical Devices
3.Automotive Electronics
4.Point-of-Sale (POS) Systems
Specifications
Material：
Insulator:LCP or Nylon .UL94V-0
Contacts:Phosphor Bronze,(T=0.25mm).
Shell:Cold Roller Steel or brass,Nikel Plated.
Electrical:
Contact Current Rating :1Amp.30V AC
Dielectric Withstanding Volt:AC 500V/Min.R.M.S.
Insulation Resistance:1000MΩ Min. at 250V DC
Contact Resistance:30mΩ Max.
Operating Temperature:-55°C to +85°C
Mechanical Characteristics:
Mating Force:3.57Kg.Max.
Unmating Force:1.02Kg.Min..2kgf Min.
Technical Documents
Please contact us for more information.
USB 2.0 connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of USB 2.0 connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

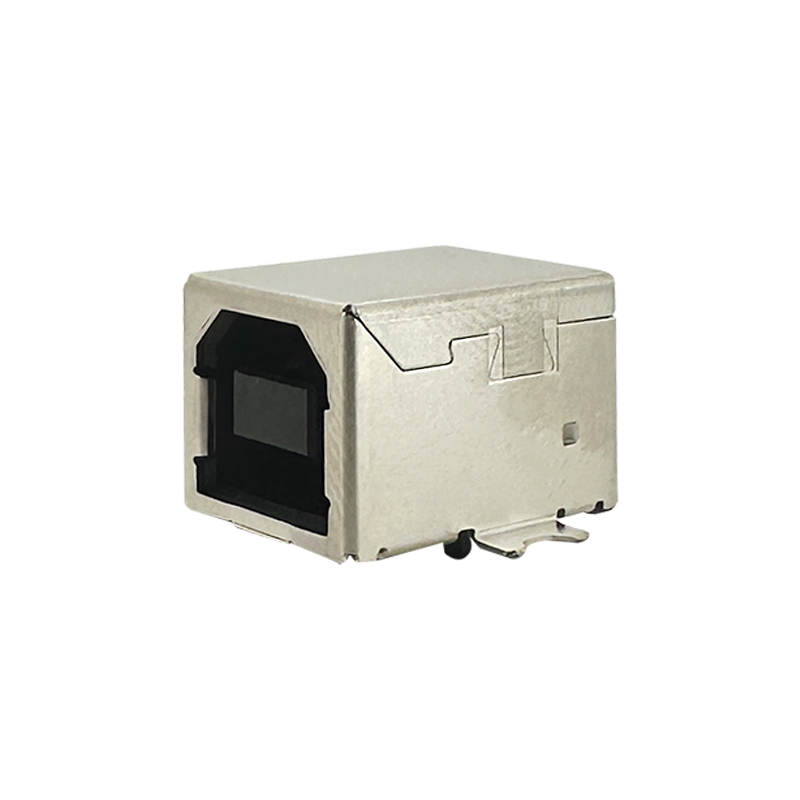

B Female SMD USB Connector:RHTAY56
