Features
-Connector Type: USB 3.0 Type A connector, designed for high-speed data transfer and power delivery.
-Orientation: DIP (Dual Inline Package) 180-degree angle, allowing the connector to be mounted in a straight line parallel to the PCB surface, facilitating a compact and streamlined board layout.
-Number of Pins: 9 pins, adhering to the USB 3.0 standard, which includes additional pins for SuperSpeed data transfer and power delivery compared to USB 2.0.
-Design: Engineered for durability and reliability, featuring a sturdy housing and contacts that withstand frequent insertion and removal cycles.
Applications
1.Medical Devices
2.Gaming Consoles and Accessories
3.Data Acquisition and Instrumentation
4.Telecommunications and Networking
Specifications
Electrical
Voltage Current Rating:2AMP,30V AC
Insulator Resistance: 100MΩ Min
Contact Resistance: 50mΩ Max
Withstanding Voltage: 300V AC
Mechanical
Operating Temperature:-55°C TO +85°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.
Technical Documents
Please contact us for more information.
USB 3.0 connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of USB 3.0 connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

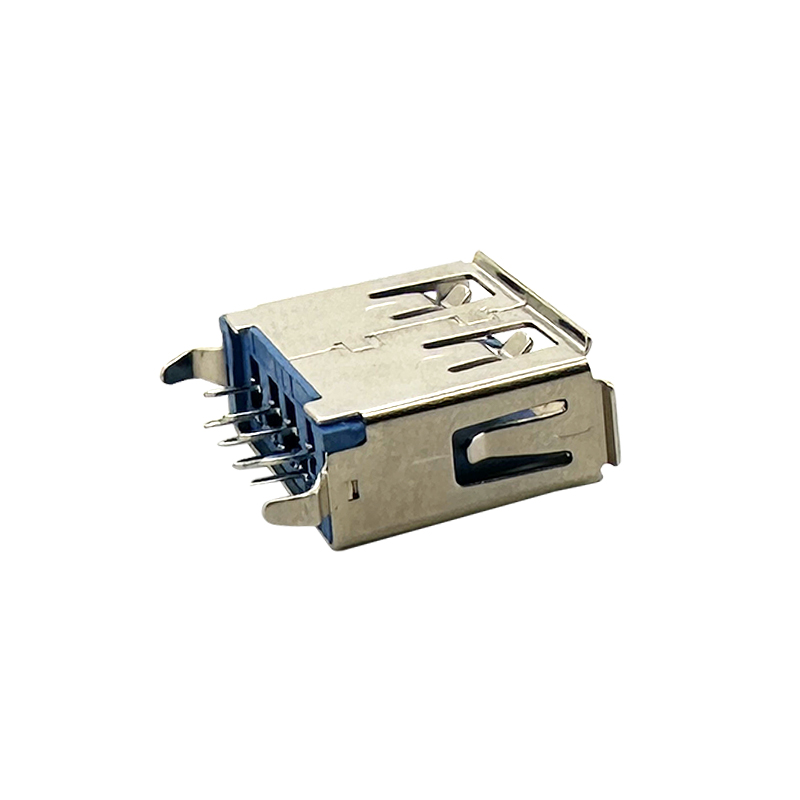

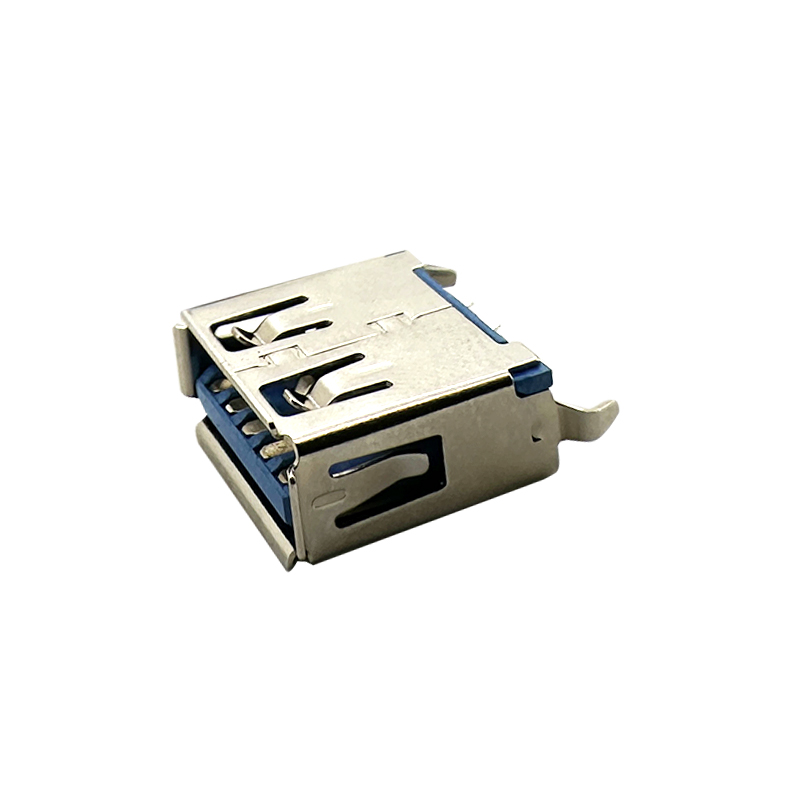

dip 180 A Female 9P USB 3.0 Connectors :RHTAY006
