Features
-Compatibility: Compliant with USB 3.0 specifications, ensuring compatibility with devices requiring high-speed data transfer rates and backward compatibility with USB 2.0 devices.
-Design: Engineered for durability and reliability, featuring a sturdy housing and contacts that withstand frequent insertion and removal cycles.
-Speed: Supports SuperSpeed USB 3.0 data transfer rates up to 5 Gbps, enabling rapid data transfer for large files, multimedia content, and high-definition video.
-Power Delivery: Capable of enhanced power delivery compared to USB 2.0 connectors, supporting higher power output for charging and powering devices.
Applications
1.External Hard Drives and SSDs
2.Printers and Scanners
3.Audio Interfaces and Recording Equipment
4.Video Cameras and Camcorders
Specifications
Electrical
Voltage Current Rating:2AMP,30V AC
Insulator Resistance: 100MΩ Min
Contact Resistance: 50mΩ Max
Withstanding Voltage: 300V AC
Mechanical
Operating Temperature:-55°C TO +85°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.
Technical Documents
Please contact us for more information.
USB 3.0 connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of USB 3.0 connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

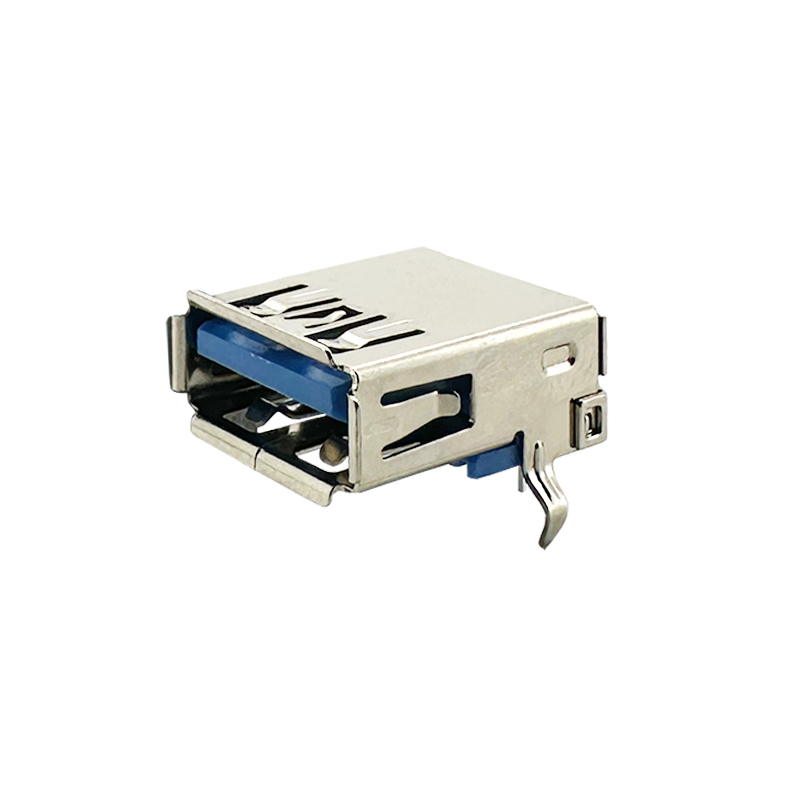

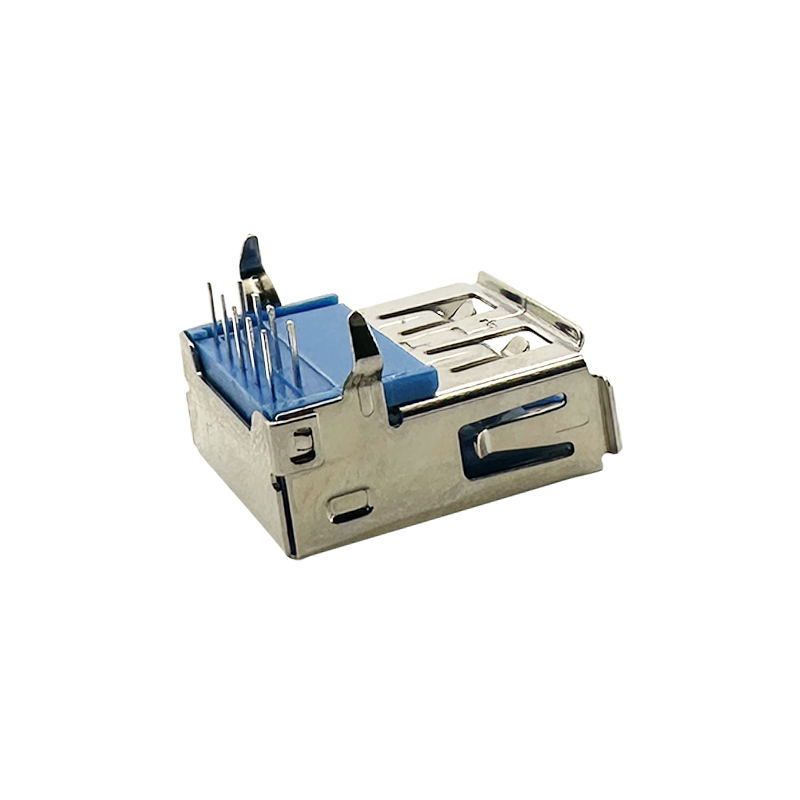

dip 90 A Female 9P USB 3.0 Connectors:RHTAY46
