Features
-USB 3.0 Standard:Compliant with USB 3.0 specifications, supporting data transfer rates up to 5 Gbps (SuperSpeed). This ensures compatibility with high-speed data applications requiring fast and reliable data transmission.
-Durability and Material:Constructed from durable materials such as thermoplastics and metal contacts, ensuring robustness and longevity even in demanding environments.
-Termination Type:Designed for through-hole mounting (DIP), allowing for secure soldering to the PCB. This method ensures stable electrical connections and mechanical strength during operation.
-High-Speed Data Transfer:Supports USB 3.0 SuperSpeed data rates up to 5 Gbps, ideal for applications requiring rapid file transfers, HD video streaming, and real-time data synchronization.
Applications
1.Networking Devices
2.Printers and Scanners
3.Audio-Visual Equipment
4.Industrial Automation
Specifications
Electrical
Current Rating: 1 8A for pin 1 & pin 4
0.25A other contacts
Contact Resistance: 30m Ohm Max. for pin
1 & pin 4 50m Ohm Max.
for other contacts
Insulator Resistance: 100M Ohm Min.
Dielectric Withstanding Voltage:100 VAC/Minute
Mechanical
Operating Temperature:-55°C TO +85°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.
Technical Documents
Please contact us for more information.
USB 3.0 connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of USB 3.0 connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

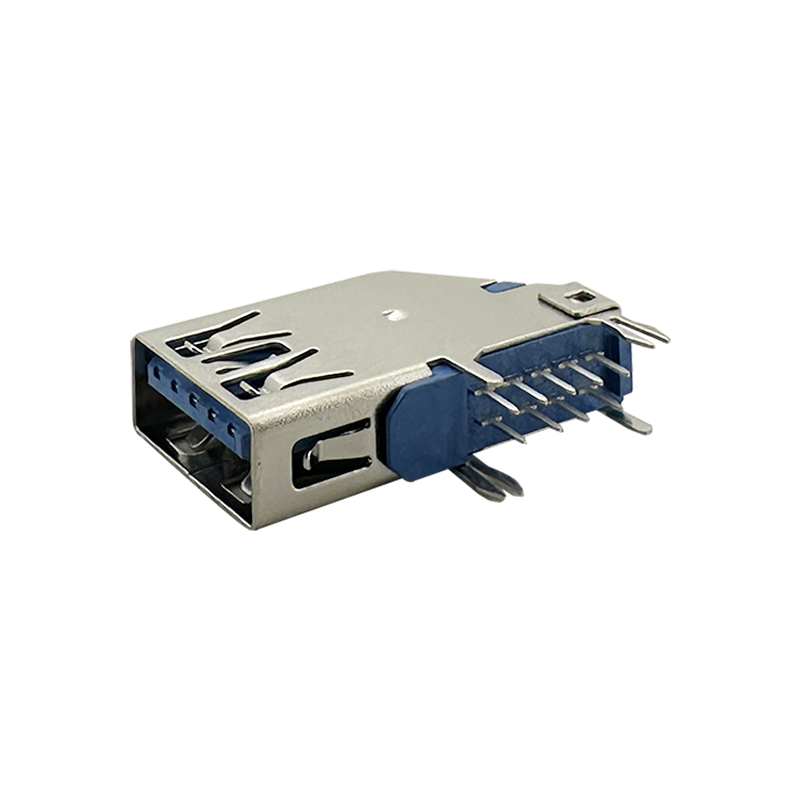

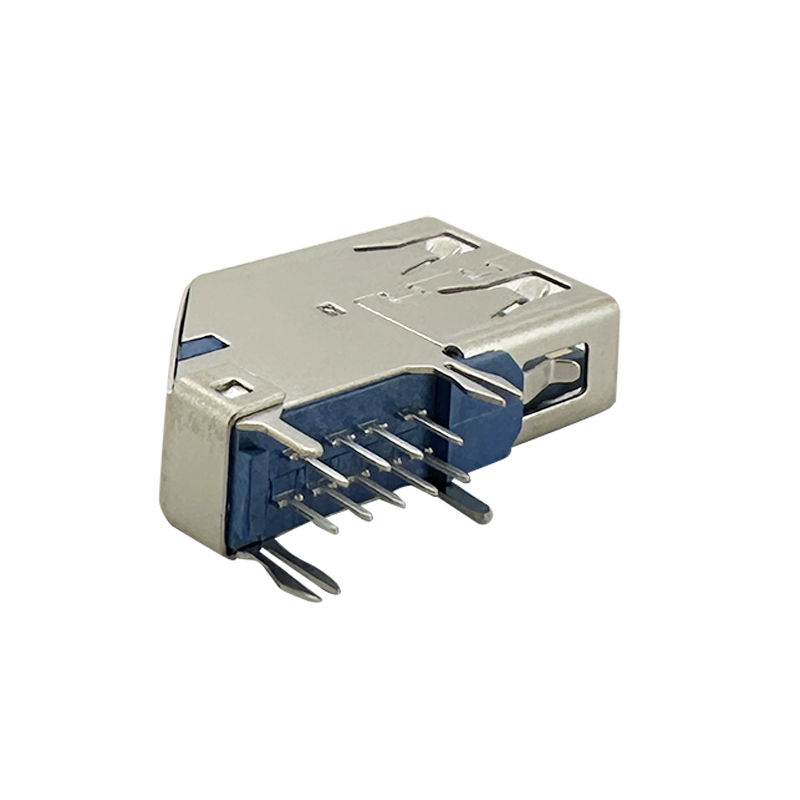

upright dip 90 A Female 9P USB 3.0 Connectors:RHTAY17
