Features
-USB 3.0 Standard:Compliant with USB 3.0 specifications, offering enhanced data transfer rates (up to 5 Gbps) compared to USB 2.0, making it suitable for high-speed data applications.
-Connector Type:A Male Connector: Typically used for connecting to downstream devices such as computers, laptops, hubs, and other peripherals.
-SMT (Surface-Mount Technology):Designed for direct soldering onto the surface of a printed circuit board (PCB), allowing for automated assembly processes and reducing production time.
-Number of Pins:The connector includes the standard 9 pins required for USB 3.0 connectivity: 4 for data transfer (Tx and Rx pairs), 1 for ground, and 4 for power and other signals.
Applications
1.External Displays and Monitors
2.Networking Devices
3.Gaming Devices
4.Industrial Automation
Specifications
Material
Housing: Thermoplastic
Contacts: copper
Pin Plated: Gold 3u" over 50u" nickel
Shell: Spcc,Nickel plated
Electrical
Contact Current Rating: 1.5 A
Withstanding Voltage:500VAC(Rms)
Contact Resistance: 30mΩ Max
Insulation Resistance:1000MΩ Min
Mechanical
Operating Temperature:-30°C TO +80°C.
Technical Documents
Please contact us for more information.
USB 3.0 connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of USB 3.0 connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

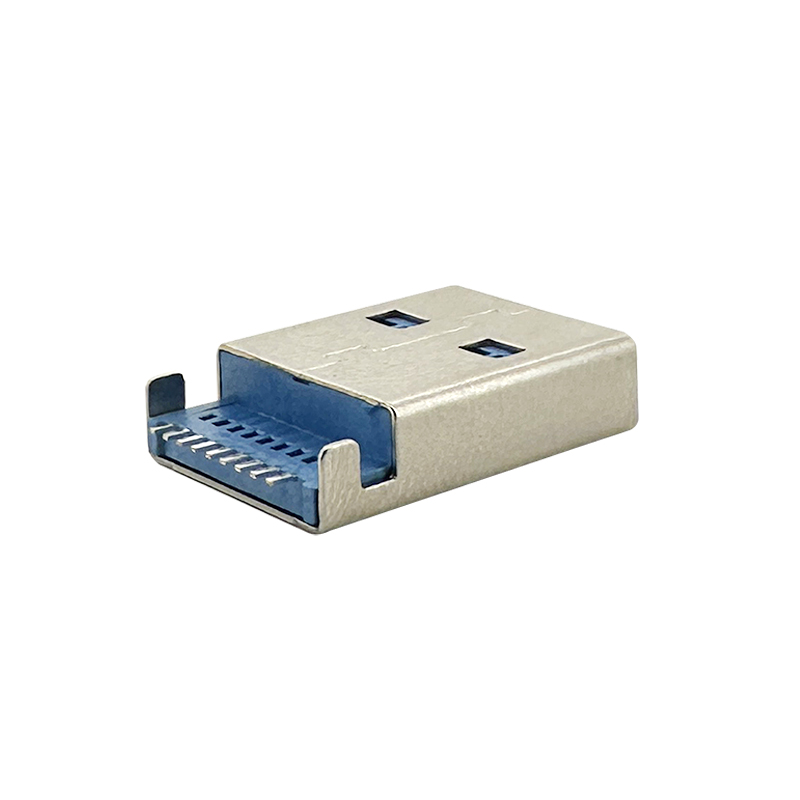

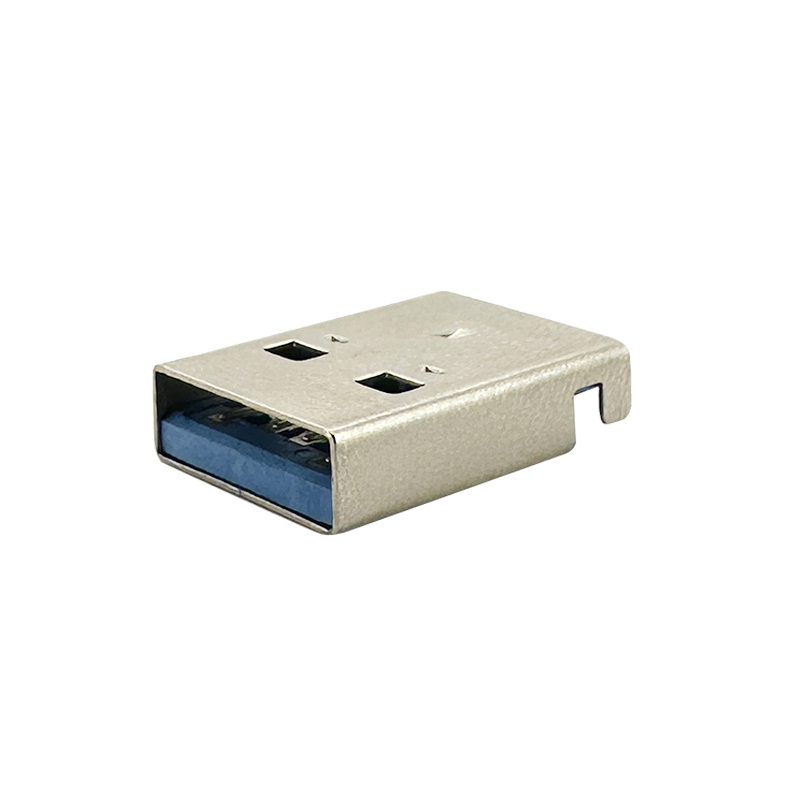

SMT A Male USB 3.0 Connector:RHTAY10
