Features
-DIP (Dual In-line Package) and SMD (Surface Mount Device): Combines through-hole and surface mount technologies. The through-hole pins provide mechanical stability, while the surface mount pads allow for automated assembly processes.
-10.0mm Length: Provides a larger footprint and more stable connection on the PCB, suitable for applications where durability and reliability are critical.
-Housing Material: Made from high-temperature thermoplastics, ensuring durability and insulation during soldering.
-Metal Shielding: Often includes metal shielding to reduce electromagnetic interference (EMI) and ensure signal integrity.
Applications
1.Industrial and Embedded Systems
2.Medical Devices
3.Telecommunications
4.Audio/Video Equipment
Specifications
Electrical
Current Rating: 3.0A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles
Technical Documents
Please contact us for more information.
USB 3.1 type C connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of USB 3.1 type C connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

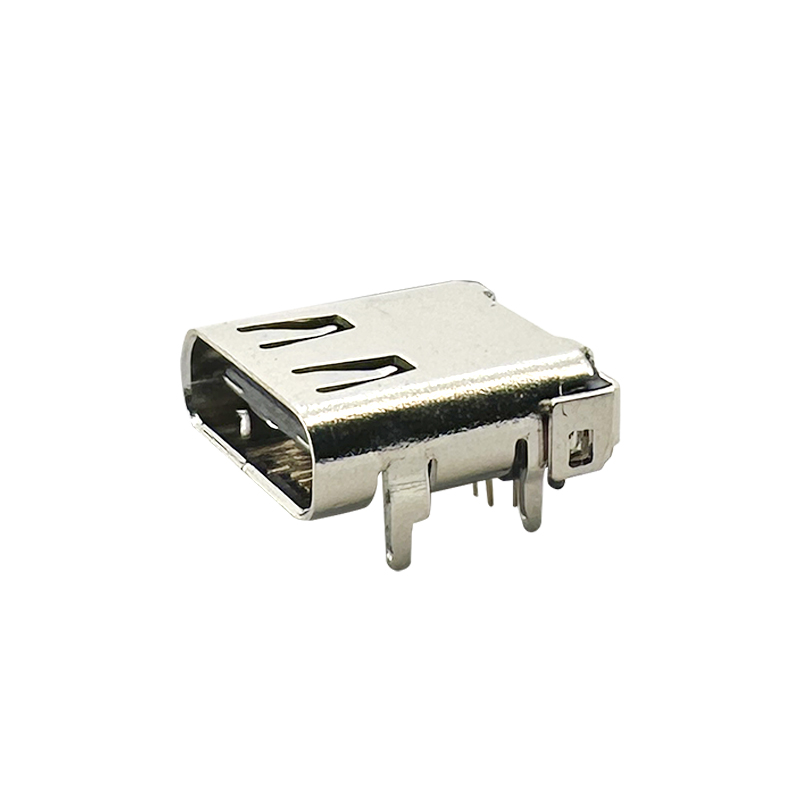

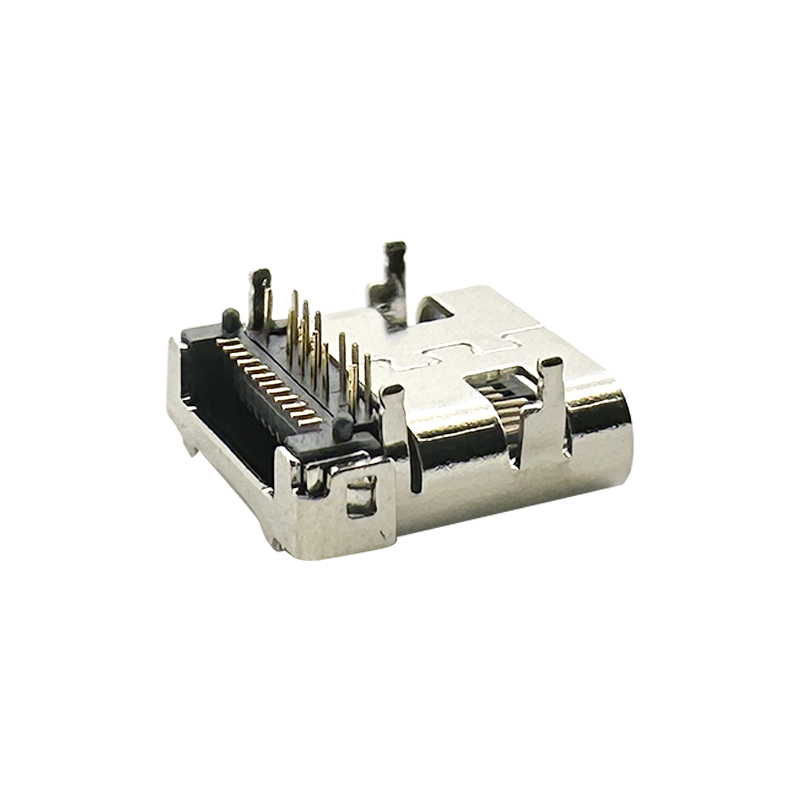

24P DIP+SMD L=10.0mm USB 3.1 type C connector female socket 24P DIP+SMD L=10.0mm USB 3.1 type C connector female socket :RHTAY424
