Features
-Card Detect (CD) Pin:The CD pin detects the presence or absence of an SD card. This feature allows the device to know when an SD card is inserted or removed, enabling functionalities like software notifications or hardware triggers.
-Height (H2.8mm):With a height of 2.8mm, it provides adequate space for reliable connection and secure housing of the SD card within the device.
-High Durability:Constructed to withstand numerous insertion and removal cycles, ensuring long-term reliability and performance.
-Secure Connection:Provides a stable and secure connection to the SD card, minimizing the risk of disconnection due to vibrations or impacts.
Applications
1.Laptops and Notebooks
2.Portable Gaming Consoles
3.Audio Recorders
4.MP3 Players and Music Devices
Specifications
SD card connector push push,H2.8mm,with CD pin
Material:
Insulator:High Temperature Thermoplastic,UL94V-0.
Contact:Copper Alloys.Plated 50u" Ni Overall Plated Au Selective Contact Area,Plated 100u" Sn Over Ni On Solder Area.
Shell:Plated 50u" Ni Overall.
Electrical:
Voltage Rating:125V AC/DC
Current Rating:0.5mA AC/DC Max.
Ambient Humidity Range:95% R.H. Max.
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min./500V DC
Mating Cycles:10000 Insertions.
Operating Temperature: -45ºC~+105ºC
Technical Documents
Please contact us for more information.
Memory card connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Memory card connectors
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

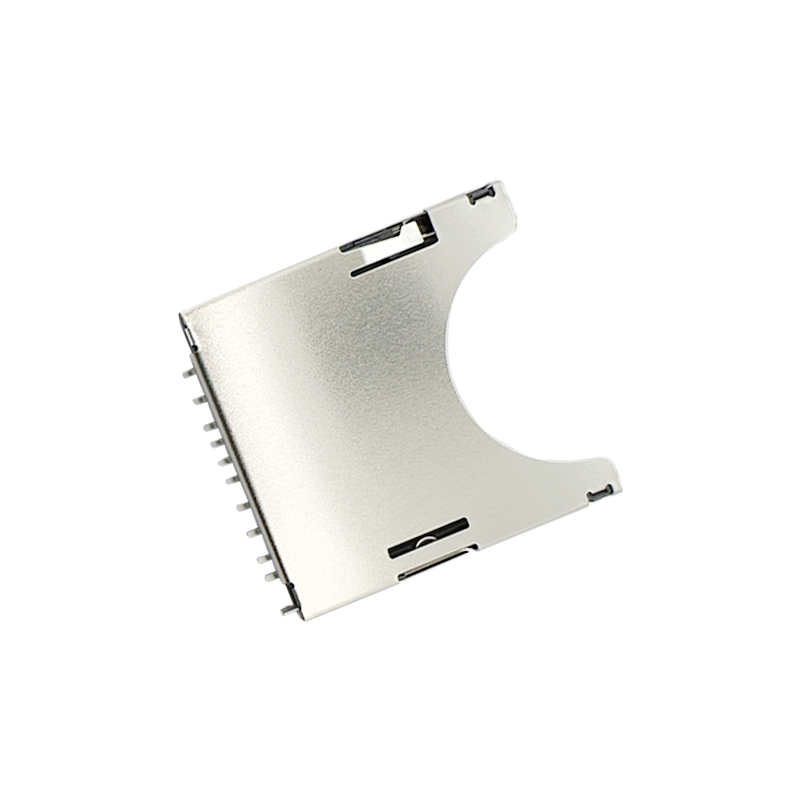

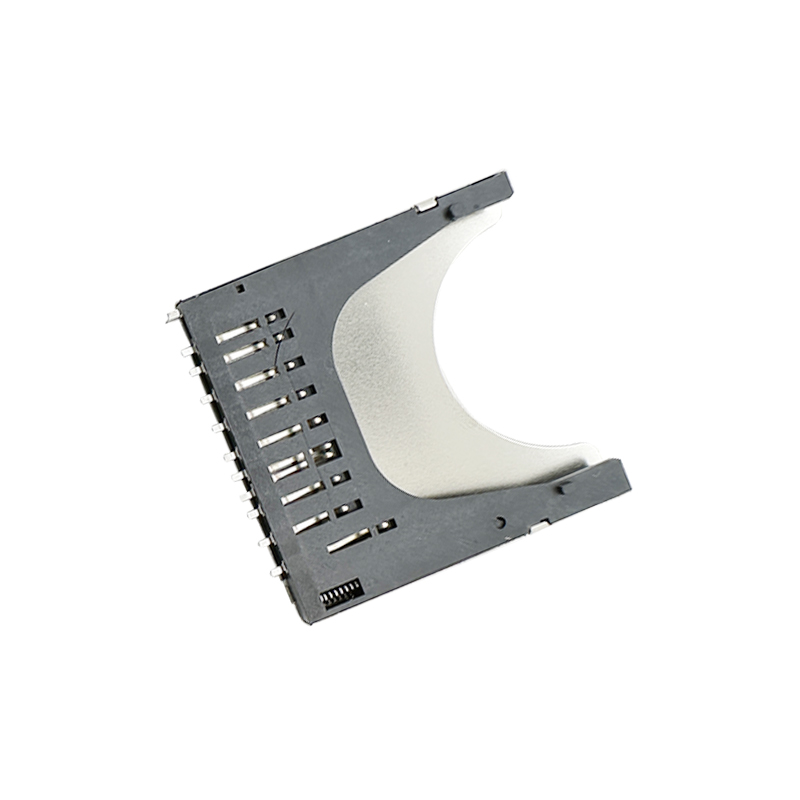

SD card connector push push,H2.8mm,with CD pin :RHTAYD-001&RHTAYD-101
