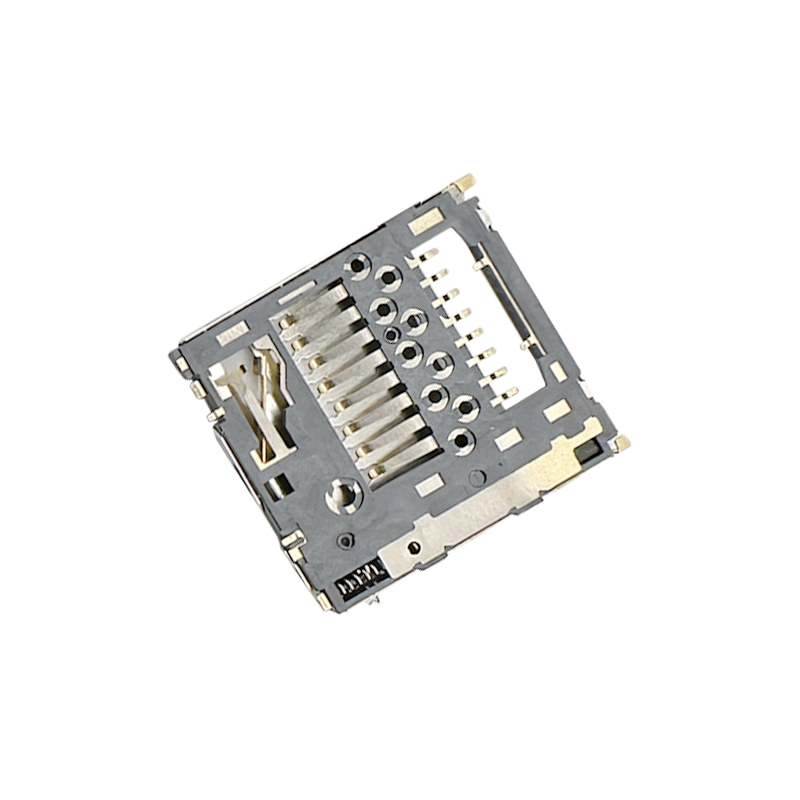

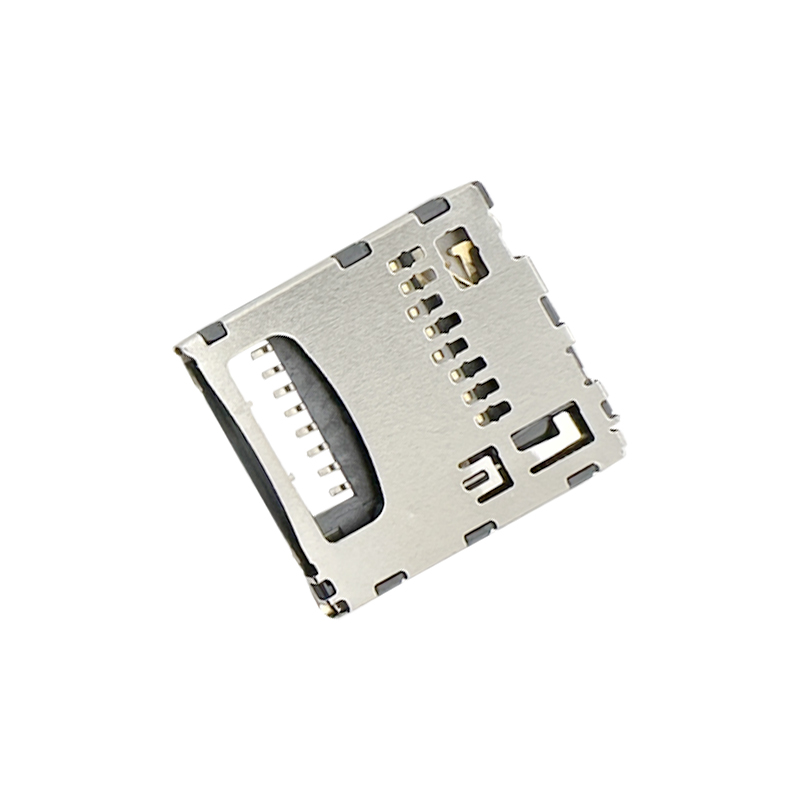

    Micro SD card connector push push,H1.29mm,with CD pin :RHTAYF-018

    Series Part No: RHTAYF-018
    RoHS Compliance: Yes
    Download
    Datasheet:


    Write Your Request Full P/N


    Features

    -Latch or Lock Mechanism: Incorporates a latch or lock that secures the Micro SD card in place when inserted. This ensures reliable contact and prevents accidental disconnection during use.

    -Durability: Constructed from durable materials to withstand repeated insertion and removal cycles, ensuring longevity and reliability.

    -Electrical Performance: Provides secure electrical contacts with low contact resistance, ensuring reliable data transfer between the Micro SD card and the device.

    -Gold Plating (Optional): Some connectors may feature gold-plated contacts, which offer enhanced conductivity, corrosion resistance, and durability over standard metal contacts. This is particularly beneficial for applications requiring high reliability and signal integrity.


    Applications

    1.Embedded Systems and IoT Devices

    2.Automotive Applications

    3.Consumer Electronics

    4.Medical and Healthcare Devices


    Specifications

    Micro SD card connector push push,H1.29mm,with CD pin

    Material:

    Insulator:LCP,UL94V-0,Black.

    Slide:LCP,UL94V-0,Black.

    Latch:Phosphor Bronze.

    Contact:Phosphor Bronze.

    Shell:SUS304

    Spring:Stainless Steel.

    Crank-axle:Stainless Steel.

    Electrical:

    Voltage:100V AC

    Current:0.5A Max.

    Contact Resistance:40mΩ Max.

    Voltage Proof::500V AC

    Insulation Resistance:1000MΩ Min.

    Card Insertion/Withdrawal Force:10N Max.

    Push in strength:10N

    Durabitity:10000 Cycles.

    Operating Temperature: -45ºC~+105ºC
