Features
-Height: Specifically designed with a low profile height of 1.42mm, making it suitable for compact electronic devices where space is limited.
-CD Pin (Card Detect Pin): Used to detect the presence of the Micro SD card. This pin provides a signal to the device indicating whether a card is inserted or not, facilitating automatic detection and handling of card insertion events.
-Latch or Lock Mechanism: Incorporates a latch or lock that secures the Micro SD card in place when inserted. This ensures reliable contact and prevents accidental disconnection during use.
-Durability: Constructed from durable materials to withstand repeated insertion and removal cycles, ensuring longevity and reliability.
Applications
1.Mobile Devices
2.Digital Cameras and Camcorders
3.Portable Gaming Devices
4.Embedded Systems and IoT Devices
Specifications

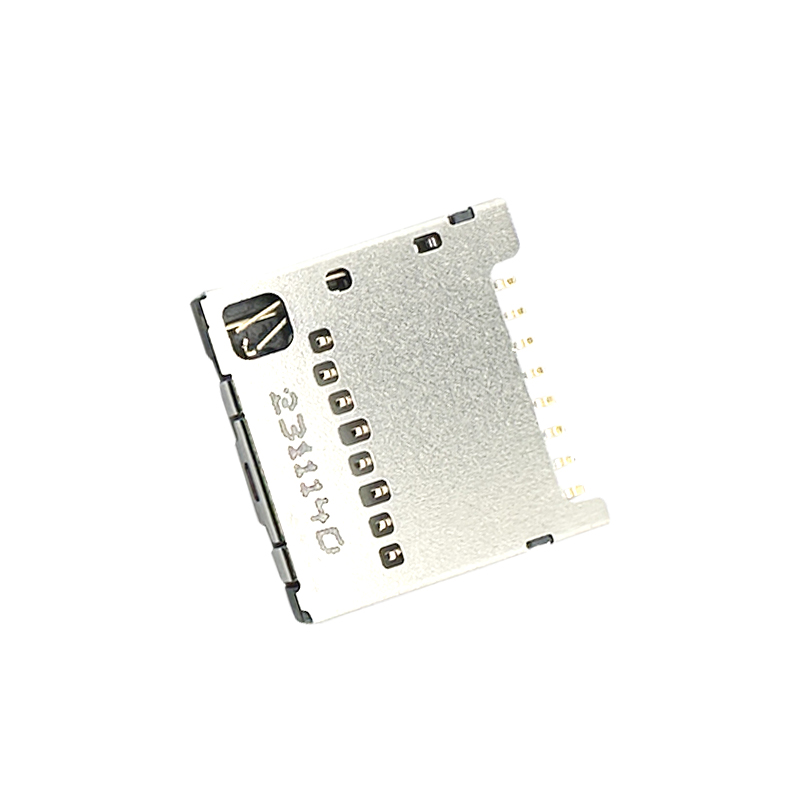

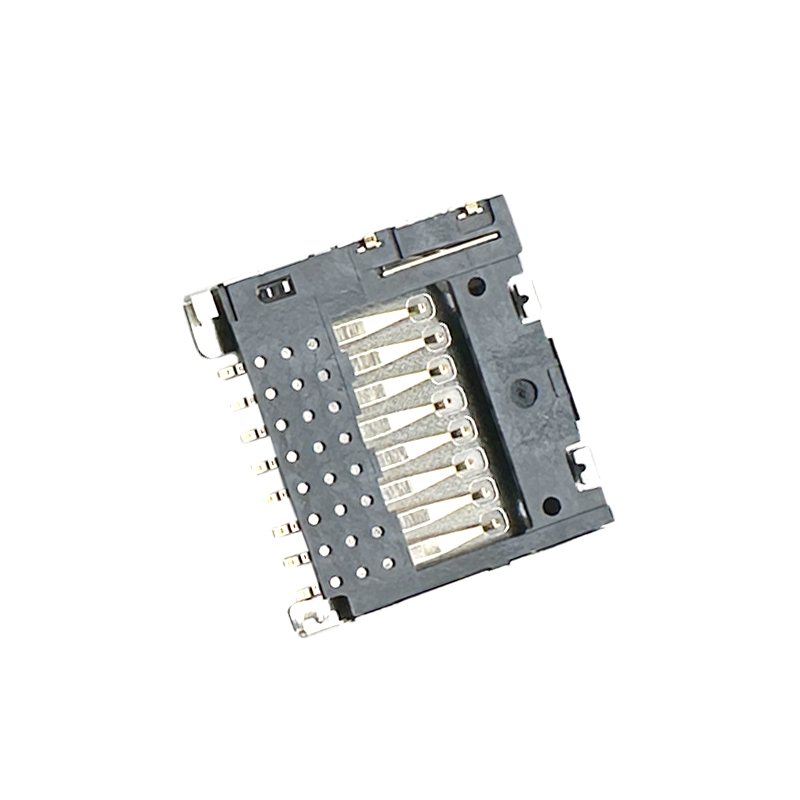

Micro SD card connector push pull,H1.42mm,with CD pin
Material:
Metal shell:Stainless Steel,Nickel overall 50u"
Housing:Liouid crystal polymer,UL94V-0，Black.
Contact terminals:Phosphor Bronze.Contact:Gold flash;Solder Tail:Gold 1u"Min.
Detect Terminal:Phosphor Bronze.Contact:Gold flash;Solder Tail:Gold 1u" Min.
Switch Terminal:Phosphor Bronze.Contact:Gold flash;Solder Tail:Gold 1u" Min.
Technical Documents
Please contact us for more information.
Memory card connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Memory card connectors
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Micro SD card connector push pull,H1.42mm,with CD pin:RHTAYF-015
