Features

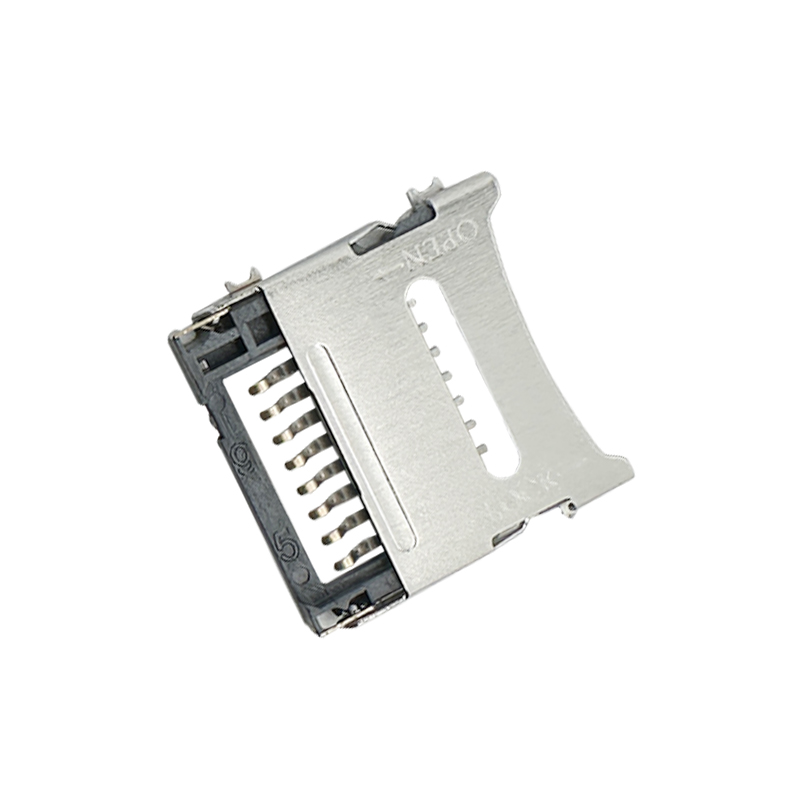

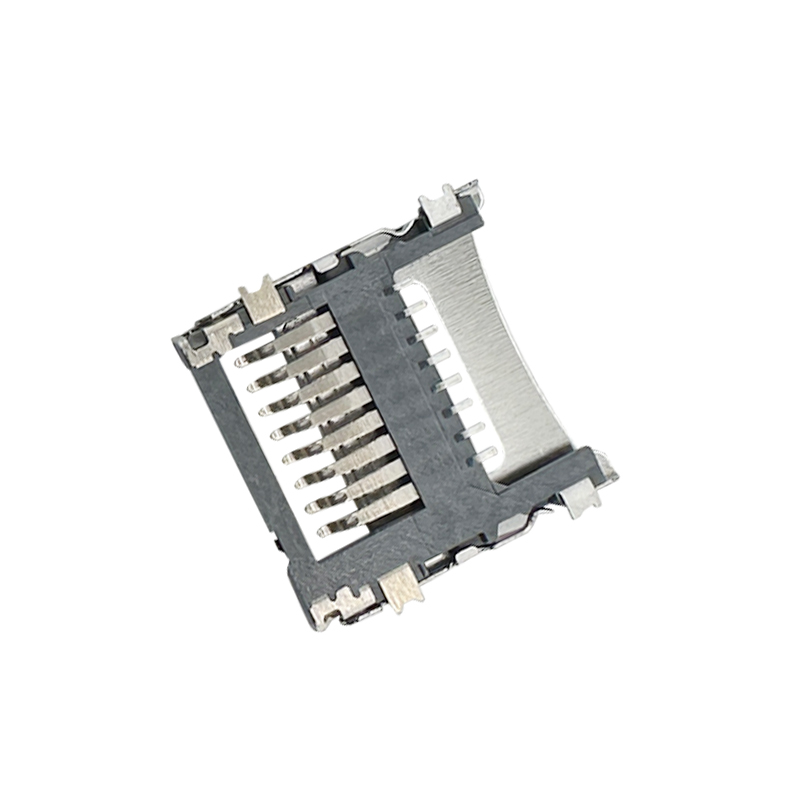

-Connector Type: Micro SD Card Connector with a hinged design.
-Hinged Mechanism: Allows the connector to open and close, providing protection for the Micro SD card slot and facilitating easy insertion and removal of the SD card.
-Height Options: Available in two height variants: 1.5mm and 1.8mm, allowing flexibility in design and integration into various electronic devices.
-Compact Design: Space-saving and low-profile design suitable for compact electronic devices where board space is limited.
Applications
1.Mobile Devices
2.Digital Cameras
3.Portable Media Players
4.Embedded Systems
Specifications
Micro SD Card CONN;HINGED TYPE,H1.5mm & H1.8mm
Material:
Insulator:Hi-Temperature Plastic,UL94V-0.Black.
Terminal:Copper Alloy.AU Plating on all terminal contact area,and tin plating on solder tail area.
Shell:Stainless Steel.
Electrical:
Current Rating:0.5 A
Voltage Rating:5.0 vrms
Insulation Resistance:1000MΩ Min./500V DC
Withstanding Voltage:250V AC For 1 minute.
Contact Resistance:100mΩ Max.AT 10mA/20mV Max
Operating Temperature: -45ºC~+105ºC
Mating Cycles:10000 Insertions.
Technical Documents
Please contact us for more information.
Memory card connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Memory card connectors
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Micro SD Card CONN;HINGED TYPE,H1.5mm & H1.8mm :RHTAYF-007
