Features
-CD Pin (Card Detect Pin): This pin detects the presence of the Micro SD card, providing a signal to the device indicating whether a card is inserted or not. It facilitates automatic detection and handling of card insertion events.
-Gold Plating: Gold-plated contacts ensure excellent electrical conductivity and corrosion resistance. This feature is especially important for maintaining reliable data transfer over time and in various environmental conditions.
-Latch or Lock Mechanism: Incorporates a latch or lock that secures the Micro SD card in place when inserted, ensuring reliable contact and preventing accidental disconnection.
-Durability: Constructed from durable materials to withstand repeated insertion and removal cycles, ensuring longevity and reliability.
Applications
1.Embedded Systems and IoT Devices
2.Automotive Applications
3.Consumer Electronics
4.Medical and Healthcare Devices
Specifications
Micro SD card connector push push,H1.85mm,with CD pin,GOLD
Material:
Insulator:High Temperature Thermoplastic,LCP,UL94V-0.
Contact:Copper Alloy T=0.15,Plated 50u" Ni Overall.
Plated Au Selective Contact Area Plated 30u"-70u" Sn Over Ni On Solder Area.
Shell:T=0.15,Plated 30u" Ni Overall min. Plated 0.5u" Au Selective Contact Area.
Electrical:
Current Rating:0.5mA AC/DC amx.
Voltage Rating:125V AC/DC
Ambient Humidity Range:95% R.H. Max.
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min./500VDC
Mating Cycles:5000 Insertions.
Operating Temperature: -45ºC~+105ºC
Technical Documents
Please contact us for more information.
Memory card connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Memory card connectors
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

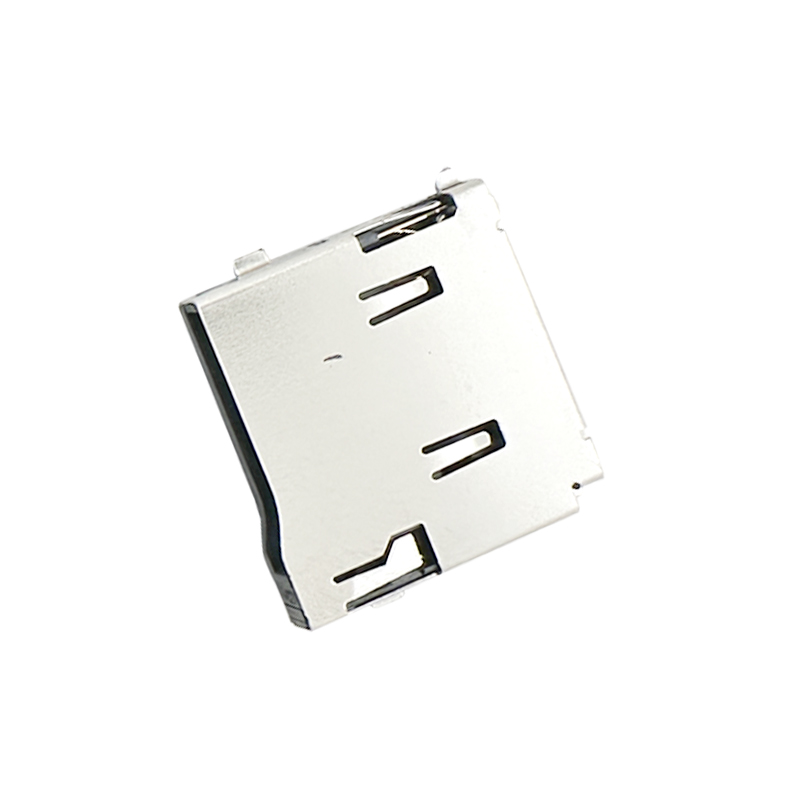

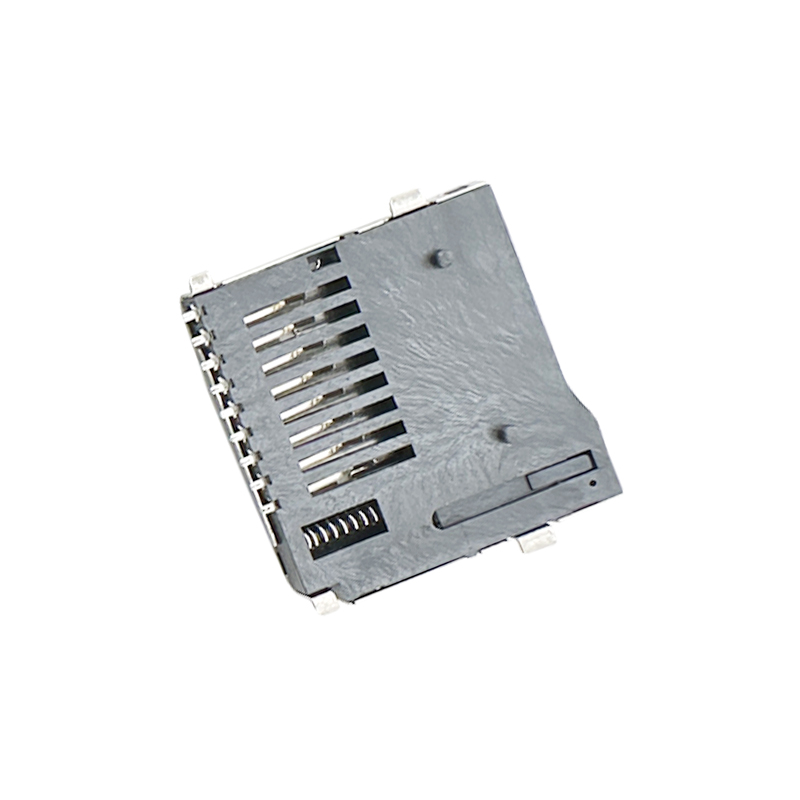

Micro SD card connector push push,H1.85mm,with CD pin,GOLD:RHTAYF-003C
