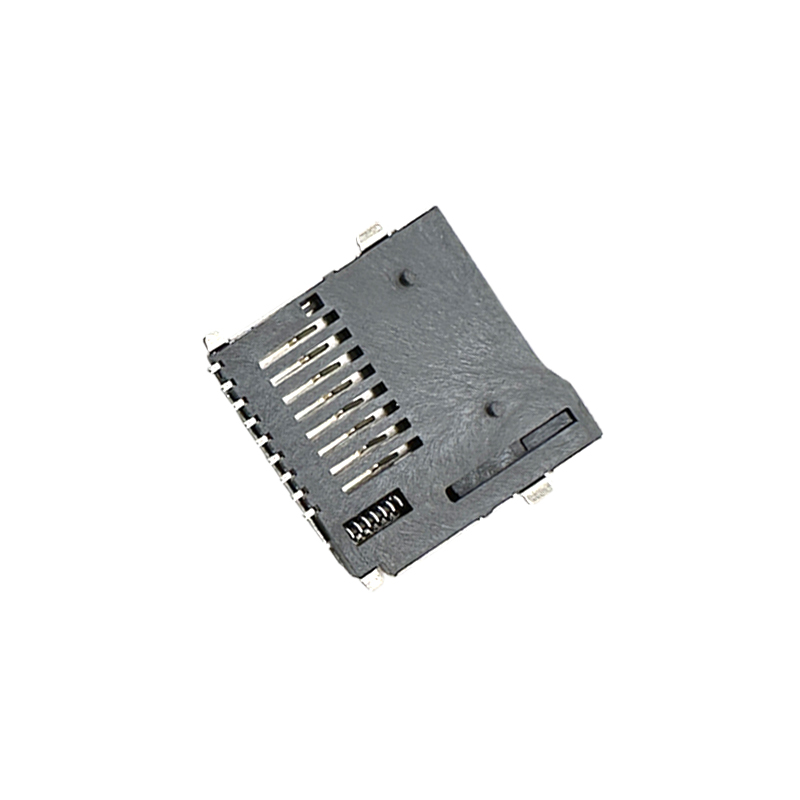

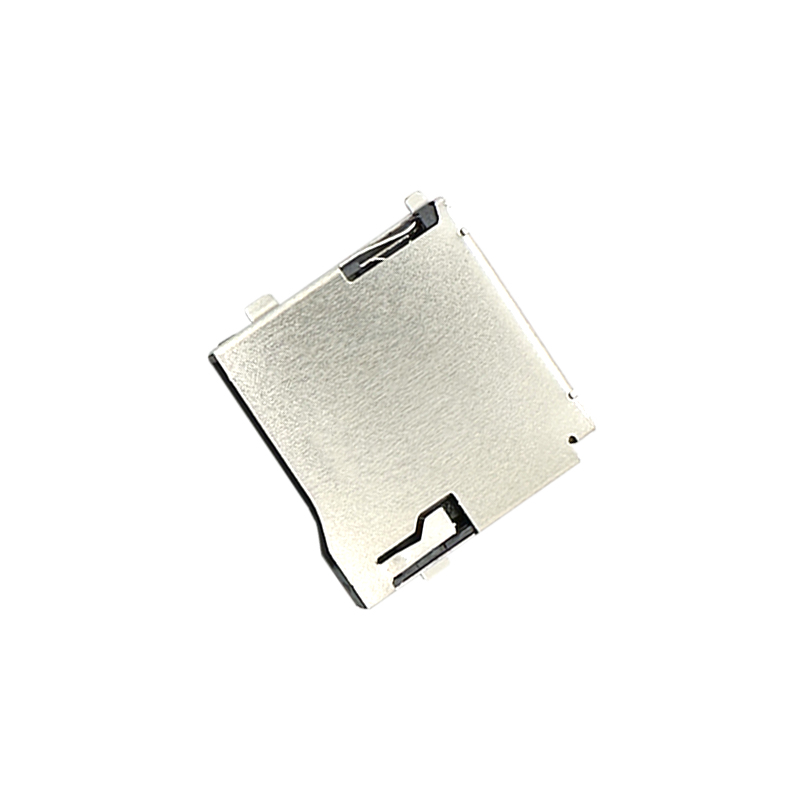

Micro SD card connector push push,H1.85mm,with CD pin
Attend 112J-TDAR-R Alternative RE-C-TF-003
HIROSE DM3AT-SF-PEJM5 Alternative RE-C-TF-003
Material:
Insulator:High Temperature Thermoplastic,UL94V-0.
Contact:Copper Alloy T=0.15,Plated 50u" Ni Overall. Plated Au Selective
Contact Area Plated 30u"-70u" Sn Over Ni On Solder Area.
Shell:T=0.15,Plated 30u" Ni Overall min. Plated 0.5u" Au Selective Contact Area
Electrical:
Current Rating:0.5 A
Voltage Rating:3.3V
Ambient Humidity Range:95% R.H. Max.
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min./500VDC
Mating Cycles:5000 Insertions.
Operating Temperature: -45ºC~+105ºC
Memory card connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Memory card connectors
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Memory card connectors:Attend 112J-TDAR-R Alternative RE-C-TF-003
