Features
-Height: Specifically designed with a height of 1.85mm, which is standard for many compact devices, balancing between space-saving design and mechanical robustness.
-CD Pin (Card Detect Pin): This pin is used to detect the presence of the Micro SD card. It provides a signal to the device indicating whether a card is inserted or not, facilitating automatic detection and handling of card insertion events.
-Latch or Lock Mechanism: Incorporates a latch or lock that secures the Micro SD card in place when inserted, ensuring reliable contact and preventing accidental disconnection.
-Durability: Constructed from durable materials to withstand repeated insertion and removal cycles, ensuring longevity and reliability.
Applications
1.Mobile Devices
2.Digital Cameras and Camcorders
3.Portable Gaming Devices
4.Embedded Systems and IoT Devices
Specifications

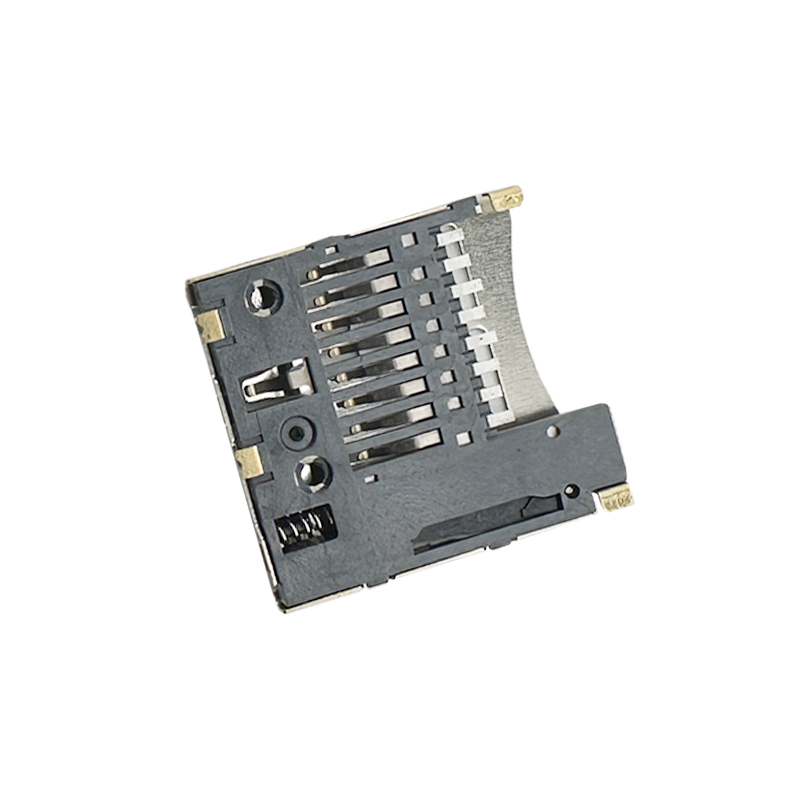

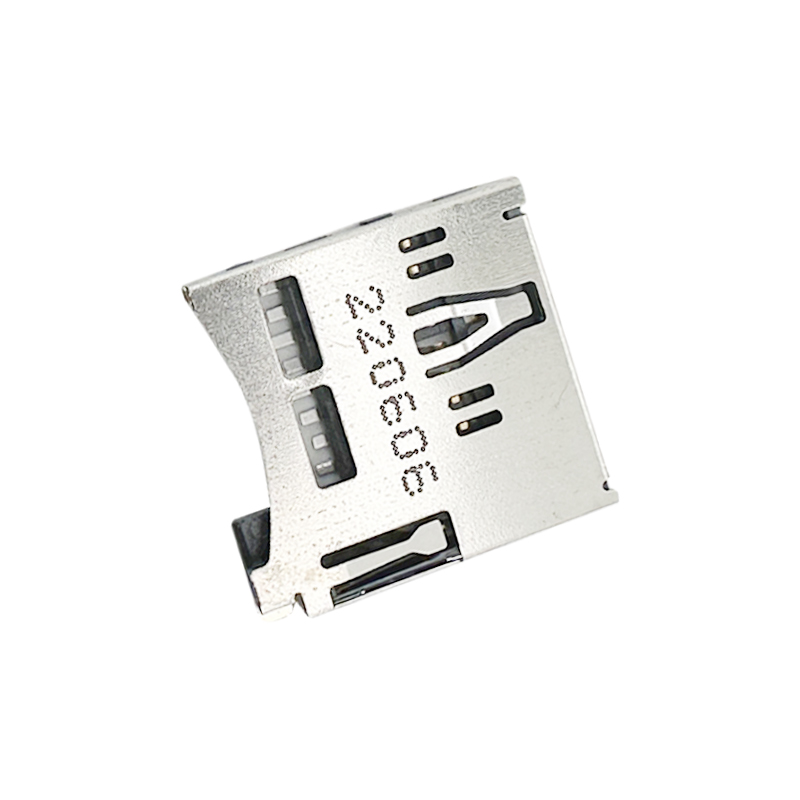

Micro SD card connector push push,H1.85mm,Normally closed
Material:
Housing:High Temperature Thermoplastic,UL94V-0，Black.
Contact:Copper Alloy .
Shell:Stainless Steel,Nickle.
Lever:Stainless Steel,Nickle.
Spring:Pianowire, Nickle.
Plating:
Underplate:Nickel.
Contact Area:Gold over Nickel.
Solder Area:Tin over nickel.
Technical Documents
Please contact us for more information.
Memory card connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Memory card connectors
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Micro SD card connector push push,H1.85mm,Normally closed ：RHTAY20F-001
