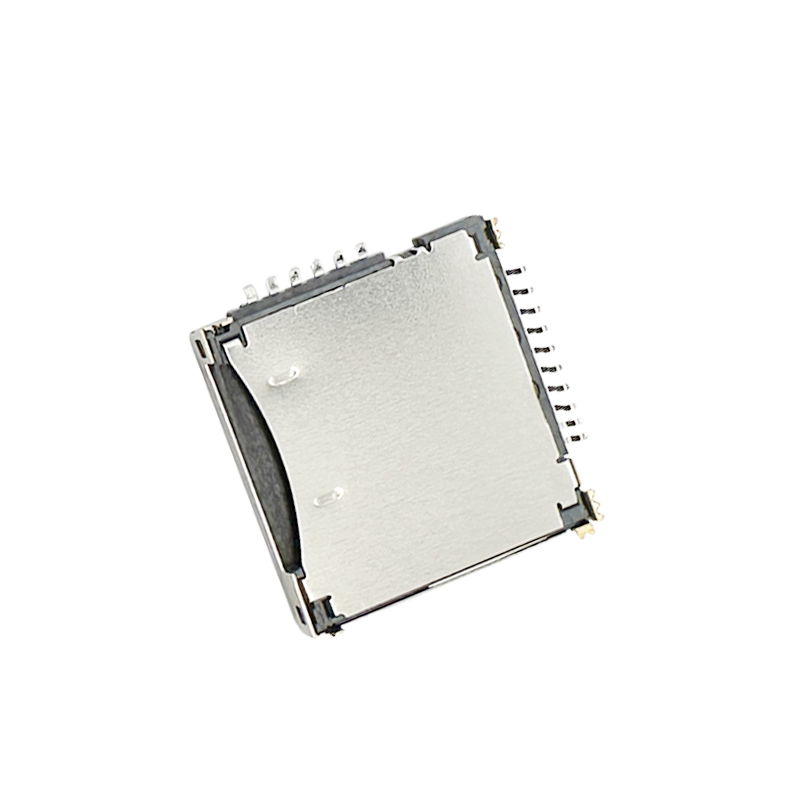

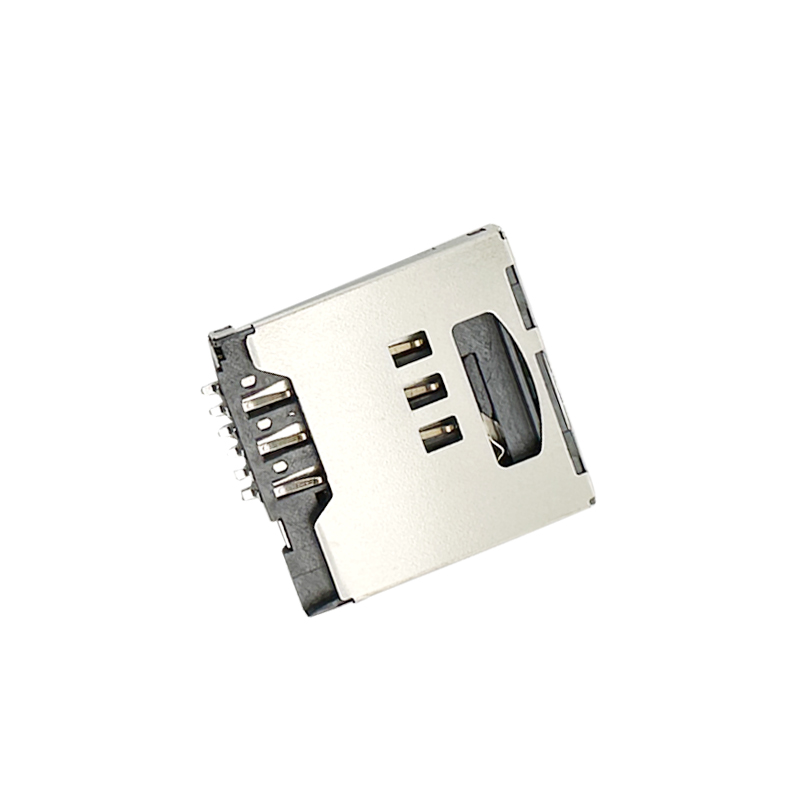

    2 in 1 SIM Card and Dual SIM-Micro SD Connector,PUSH PULL,H2.7mm :RHTAYIM-024

    Series Part No: RHTAYIM-024
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    Features

    -Dual Functionality: Combines SIM card and Micro SD card slots into one compact connector, saving board space.

    -Push-Pull Mechanism: Easy insertion and removal with a reliable push-pull function for secure card retention.

    -Secure Card Retention: Ensures stable card positioning to prevent disconnection during device movement or shock.

    -Space Efficiency: Compact form factor with a height of 2.7mm, suitable for integration into slim and space-constrained electronic devices such as smartphones, tablets, portable GPS devices, and IoT (Internet of Things) modules.

    -Reliable Connectivity: Provides reliable electrical contacts for both SIM and micro SD cards, ensuring stable signal transmission and data transfer between the cards and the device's circuitry.

    -Enhanced Durability: Designed for high wear resistance with quality materials for long-lasting performance.


    Applications

    1.Smartphones and Mobile Devices

    2.Tablets and Ultrabooks:

    3.Portable GPS Devices

    4.Portable Medical Equipment

    5.Digital Cameras and Camcorders

    Specifications

    2 in 1 SIM Card and Micro SD Connector,PUSH PULL,H2.7mm

    Electrical:

    Voltage:100V AC

    Current:0.5A Max.

    Contact Resistance:100mΩ Max.

    Dielectric Withstanding Voltage:500V AC.

    Insulation Resistance:1000MΩ Min


    Mechanical:

    Card Insertion withdrawal Force:13.8N Max.

    Push In Strength:19.6N Max.

    Durability:10000 Cycles.

    Operating Temperature: -45ºC~+85ºC
