Features
-Pin Configuration:Typically includes 6 pins to support all necessary electrical connections for full functionality and compatibility with standard nano SIM cards.
-Card Detect (CD) Pin:The CD pin detects the presence or absence of a SIM card. This feature allows the device to know when a SIM card is inserted or removed, enabling functionalities like software notifications or hardware triggers.
-Compact and Space-Saving: Ideal for devices with limited space, the 1.37mm profile ensures minimal impact on the overall size of the device while maintaining optimal functionality.
-High Durability:Constructed to withstand numerous insertion and removal cycles, ensuring long-term reliability and performance.
Applications
1.Smartphones
2.Tablets
3.Wearable Devices
4.IoT Devices
Specifications
Nano SIM Card Connector,PUSH PUSH,6Pin,H1.37mm,with CD Pin
Material:
Insulator:High Temperature Thermoplastic,UL94V-0.
Contact:Copper Alloy,Plated 50u" Ni Overall,PAD Au 1u".
Shell:SUS.All Ni 30U/MIN.
Electrical:
Current Rating:0.5A ampers
Voltage Rating:5V AC/DC
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min./500V DC
Operating Temperature: -45ºC~+85ºC
Technical Documents
Please contact us for more information.
SIM card connectors & Micro SIM card connectors & Nano SIM Card is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SIM card connectors & Micro SIM card connectors & Nano SIM Card .
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

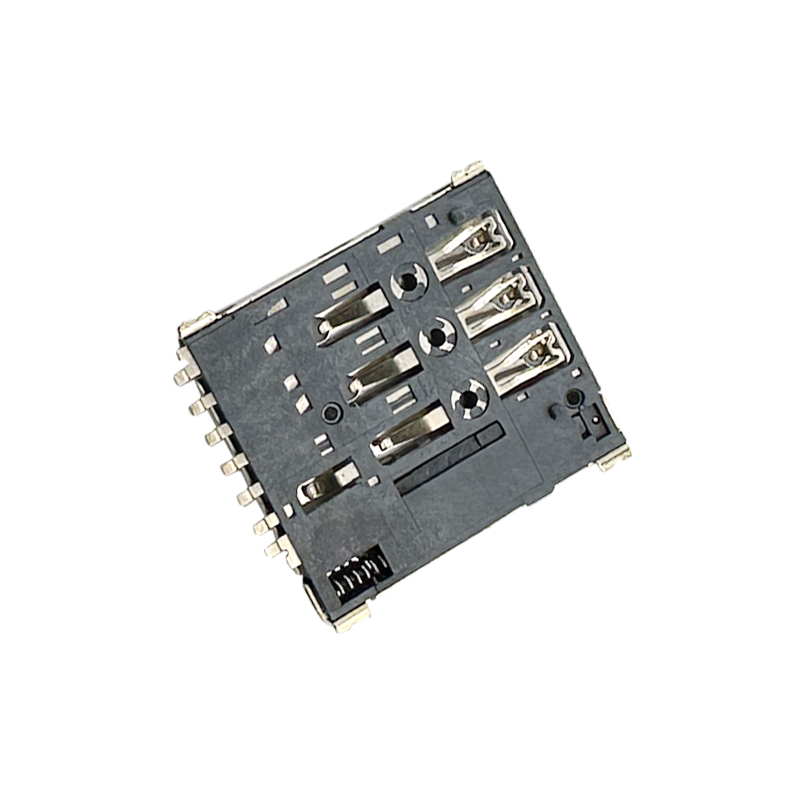

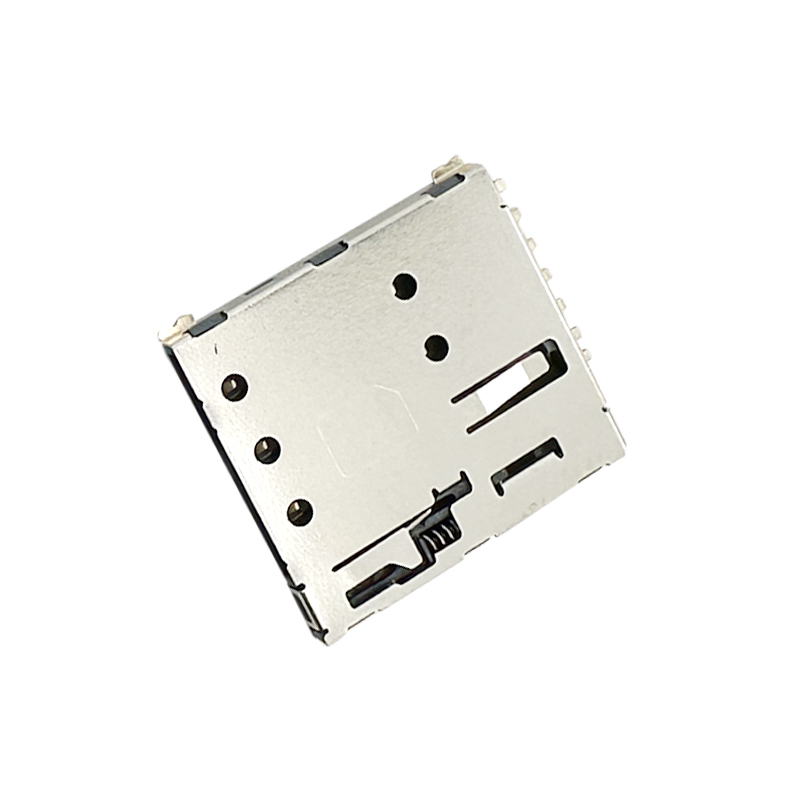

Nano SIM Card Connector PUSH PUSH 6Pin H1.37mm with CD Pin:RHTAYIM-066
