Features
-Ultra-Slim Profile (H1.4mm): With a 1.4mm height, this connector is ideal for space-constrained designs, making it suitable for modern mobile devices, wearables, and other compact electronics.
-6-Pin Configuration: Provides essential connectivity functions, ensuring stable signal transmission and compatibility with various SIM card applications.
-No CD Pin (Card Detection): This model does not include a card detection pin, meaning it does not automatically detect when the SIM card is inserted or removed. It’s simpler but still provides a stable connection.
-High Durability:Constructed to withstand numerous insertion and removal cycles, ensuring long-term reliability and performance.
-Secure Connection:The hinged mechanism ensures that the SIM card is securely held in place, minimizing the risk of disconnection due to vibrations or impacts.
Applications
1.GPS and Navigation Devices
2.Automotive
3.Medical Devices
4.Security Systems
Specifications

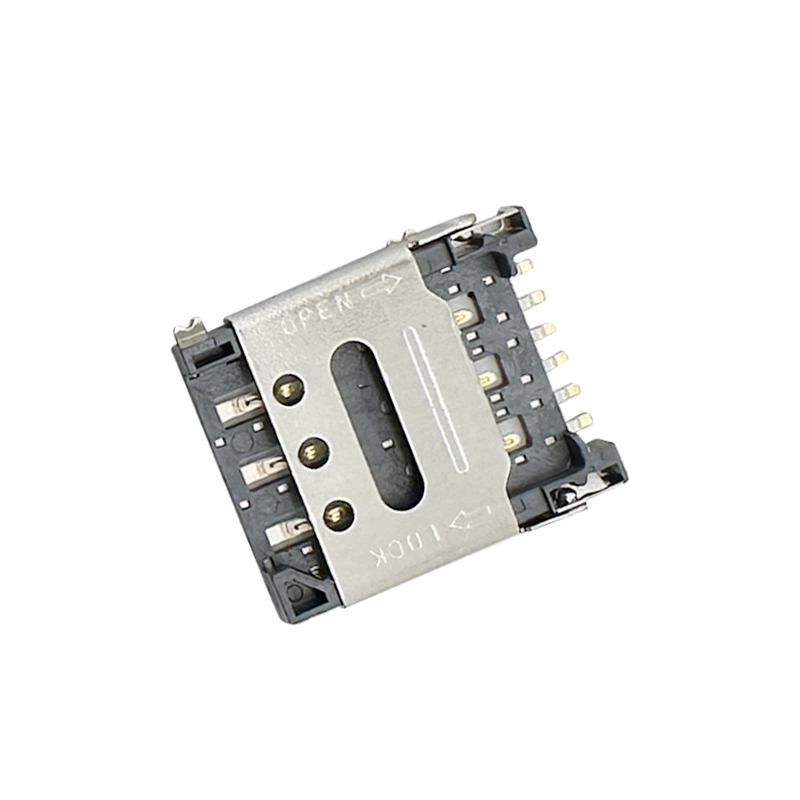

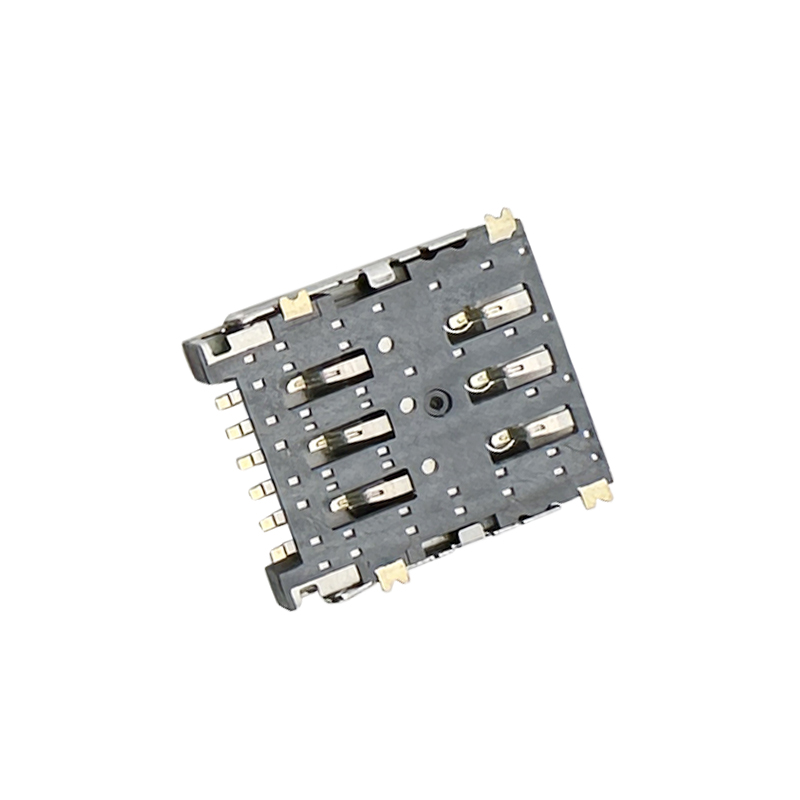

Nano SIM Card Connector,6Pin,H1.4mm,Hinged Type,without CD Pin
Material:
Insulator:High Temperature Thermoplastic,UL94V-0.
Contact:C5210,Plated 50u" Ni Overall Contact All Au 1U.
Shell:SUS.All Ni 30U/MIN.
Electrical:
Current Rating:0.5A
Voltage Rating:5V AC/DC
Ambient Humidity Range:95% R.H. Max.
Contact Resistance:80mΩ Max.
Insulation Resistance:100MΩ Min./100V DC
Mating Cycles:10000 Insertions.
Operating Temperature: -45ºC~+85ºC
Technical Documents
Please contact us for more information.
SIM card connectors & Micro SIM card connectors & Nano SIM Card is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SIM card connectors & Micro SIM card connectors & Nano SIM Card .
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Nano SIM Card Connector,6Pin H1.4mm Hinged Type without CD Pin:RHTAYIM-077
