Features
-Compact Size:Designed for nano SIM cards, which are the smallest standard SIM cards, reducing the overall footprint in electronic devices.
-Secure SIM Card Retention: The PUSH-PULL mechanism ensures that the SIM card is securely retained during device operation, preventing accidental ejection or poor contact.
-Pin Configuration:Typically includes 6 pins to ensure full functionality and compatibility with standard nano SIM cards, supporting all necessary electrical connections.
-Low Profile:With a height of 1.35mm, it is suitable for ultra-slim devices, helping to maintain a sleek and compact design
Applications
1.Smartphones
2.Tablets
3.Wearable Devices
4.Laptops and Notebooks
Specifications
Nano SIM Card Connector;PUSH PULL,6Pin,H1.35mm
Material:
Insulator:High Temperature Thermoplastic,UL94V-0.
Contact:C5210.Plated 50u" Ni Overall,Contact All Au 1u.
Shell:SUS,Plated 50u" Ni Overall,PAD Au 1u.
Electrical:
Current Rating:0.5A AC/DC max.
Voltage Rating:125V AC/DC
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min.500V DC
Operating Temperature: -45ºC~+85ºC
Technical Documents
Please contact us for more information.
SIM card connectors & Micro SIM card connectors & Nano SIM Card is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SIM card connectors & Micro SIM card connectors & Nano SIM Card .
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

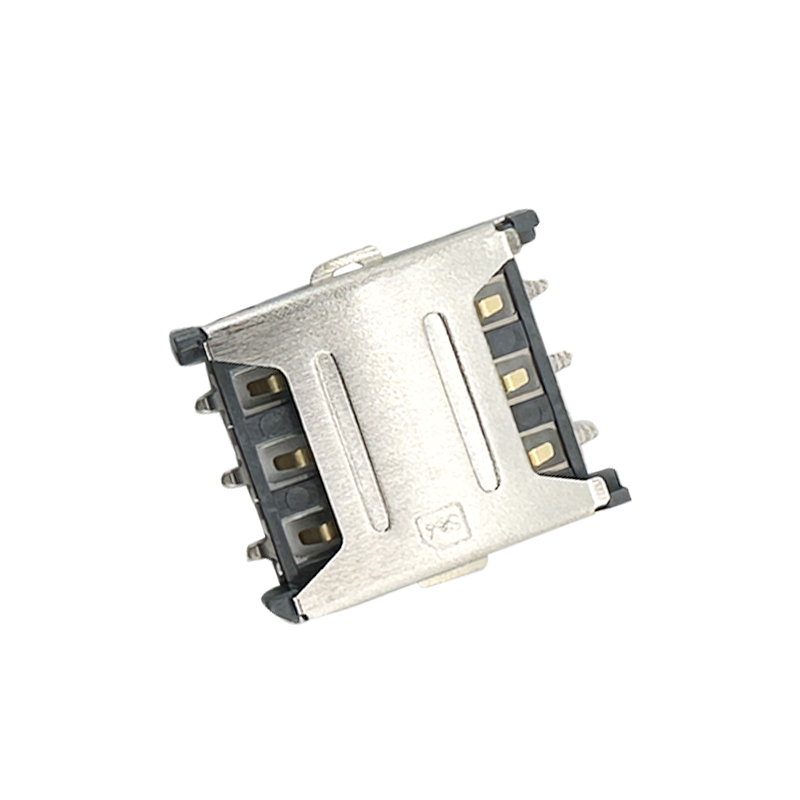

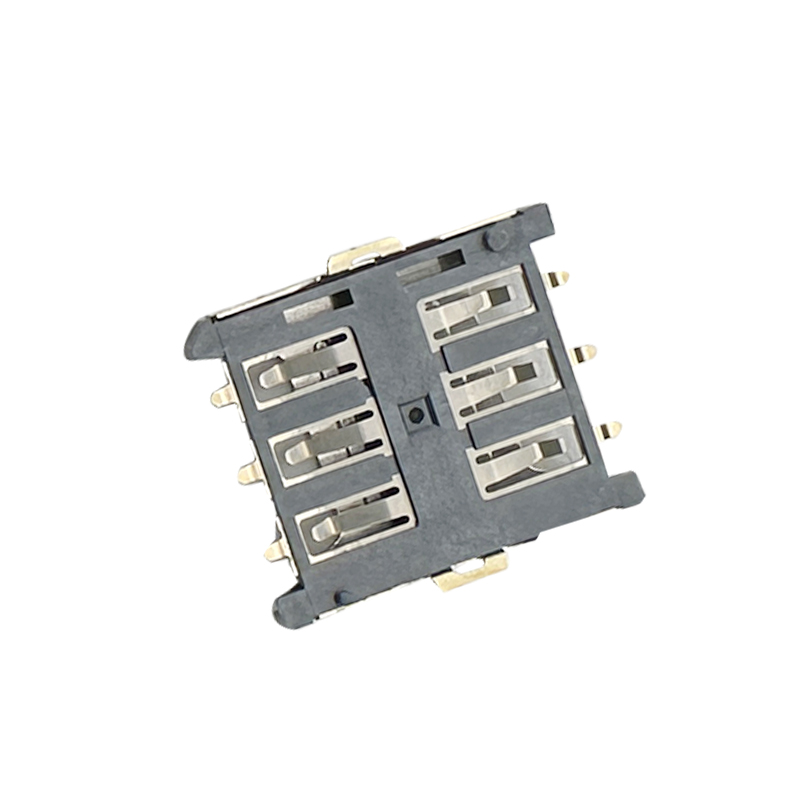

Nano SIM Card Connector PUSH PULL 6Pin H1.35mm :RHTAYIM-076
