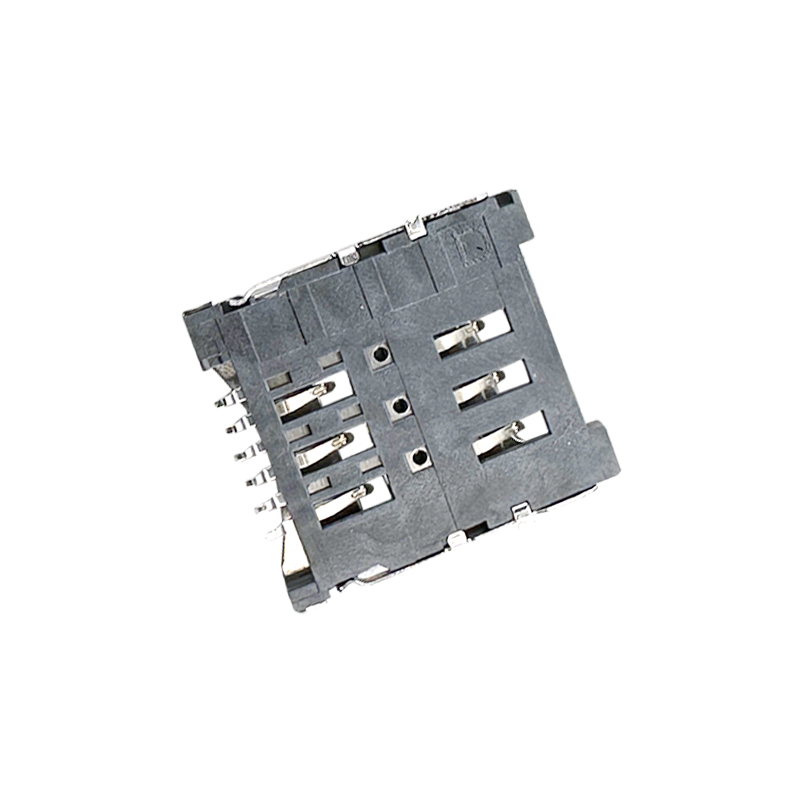

    Micro SIM Card Connector 6Pin H1.8mm,Hinged type:RHTAYIM-072

    Series Part No: RHTAYIM-072
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    Features

    -6 Pin Configuration: This specifies that the connector has 6 main electrical contacts (pins) that establish connections between the SIM card and the device. These pins are essential for transmitting signals and power between the SIM card and the device.

    -Pitch (H1.8mm): The pitch refers to the distance between the centers of adjacent pins. H1.8mm indicates a pitch of 1.8mm, which defines the spacing and alignment of the pins. A larger pitch like this can sometimes indicate a slightly larger connector size, accommodating robustness or additional features.

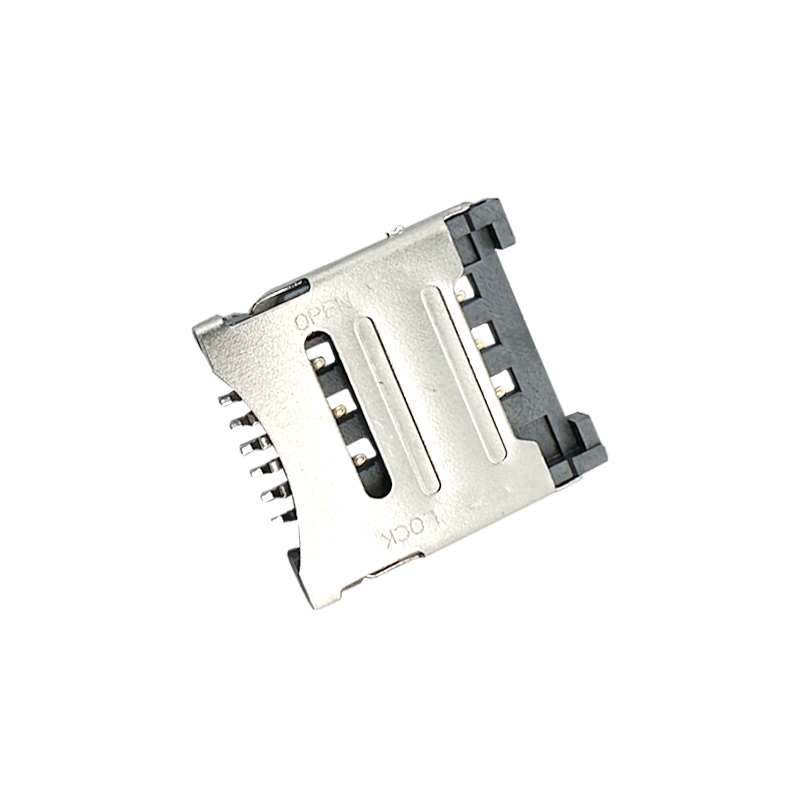

    -Hinged Type: The hinged design means that the connector has a hinged cover or door mechanism. This design allows the cover to swing open or closed, providing protection and secure retention of the SIM card when it is inserted.

    -Robust Construction: Micro SIM card connectors are designed to withstand frequent insertion and removal cycles of SIM cards without compromising their functionality or durability. The hinged cover adds to the robustness by protecting the SIM card and ensuring a secure fit.

    Applications

    1.Mobile Phones and Smartphones

    2.Portable Hotspots

    3.Automotive Applications

    4.Industrial Equipment

    5.Security and Surveillance Systems

    Specifications

    Micro SIM Card Connector,6Pin H1.8mm,Hinged type

    Electrical:

    Current Rating:1A Max.

    Voltage Rating:30V DC max.

    Contact Resistance:30mΩ Max.

    Insulation Resistance:1000MΩ Min.

    Dielectric Voltage:500V r.m.s/min.

    Durability:5000 Cycles.

    Operating Temperature: -45ºC~+85ºC


    Material:

    Housing:LCP,UL94V-0,Black.

    Terminal:Copper Alloy.

    Shell:Stainless Steel.

    Technical Documents

    Please contact us for more information.
