Features
-Ultra-Slim Profile (H1.4mm): With a 1.4mm height, this connector is ideal for space-constrained designs, making it suitable for modern mobile devices, wearables, and other compact electronics.
-Pin Configuration:Includes 6 pins to support full functionality and compatibility with standard nano SIM cards, handling all necessary electrical connections.
-Card Detect (CD) Pin:A CD pin is included to detect the presence or absence of a SIM card. This feature allows the device to know when a SIM card is inserted or removed, enabling functionalities like software notifications or hardware triggers.
-Push-Pull Mechanism:Simplifies the insertion and removal process of the SIM card, providing user convenience and reducing wear and tear.
Applications
1.Laptops and Notebooks
2.GPS and Navigation Devices
3.Automotive
4.Medical Devices
Specifications

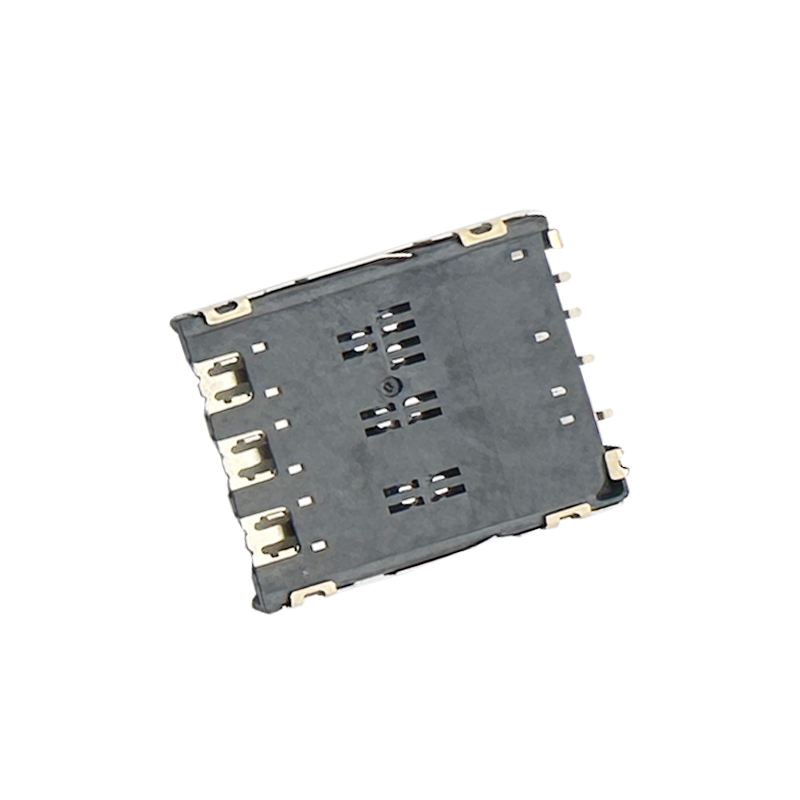

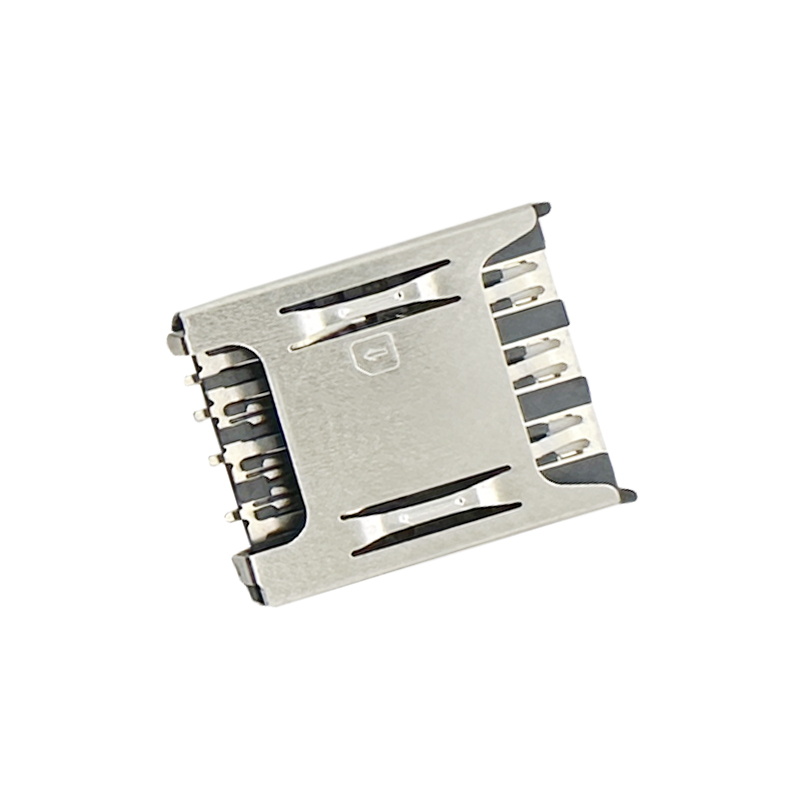

Nano SIM Card Connector,PUSH PULL,6Pin,H1.4mm,with CD Pin
Material:
Housing:Hi-Temperature Thermoplastic,UL94V-0.Black.
Terminal:Copper Alloy,selective 1u" Au on contact area.
Shell:Stainless Steel.selective Gold Flash on solder area.
Electrical:
Rated current:0.5A Max
Rated Voltage:30V AC
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min./500V DC
Dielectric Withstanding Voltage:500V AC/minute.
Durability:5000 Cycles.
Operating Temperature: -45ºC~+85ºC
Technical Documents
Please contact us for more information.
SIM card connectors & Micro SIM card connectors & Nano SIM Card is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SIM card connectors & Micro SIM card connectors & Nano SIM Card .
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Nano SIM Card Connector,PUSH PULL,6Pin,H1.4mm,with CD Pin:RHTAYIM-092
