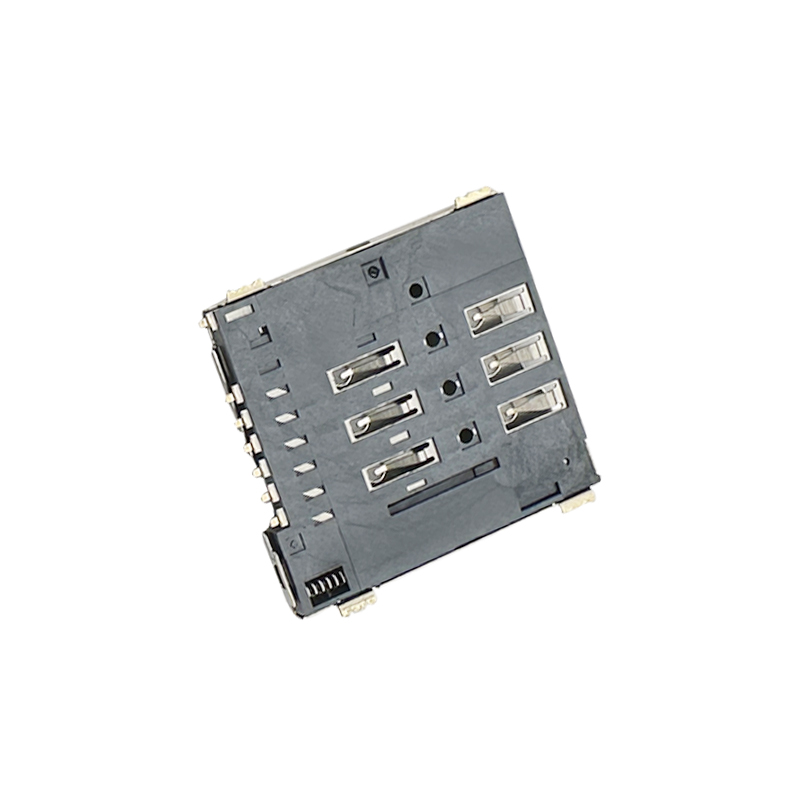

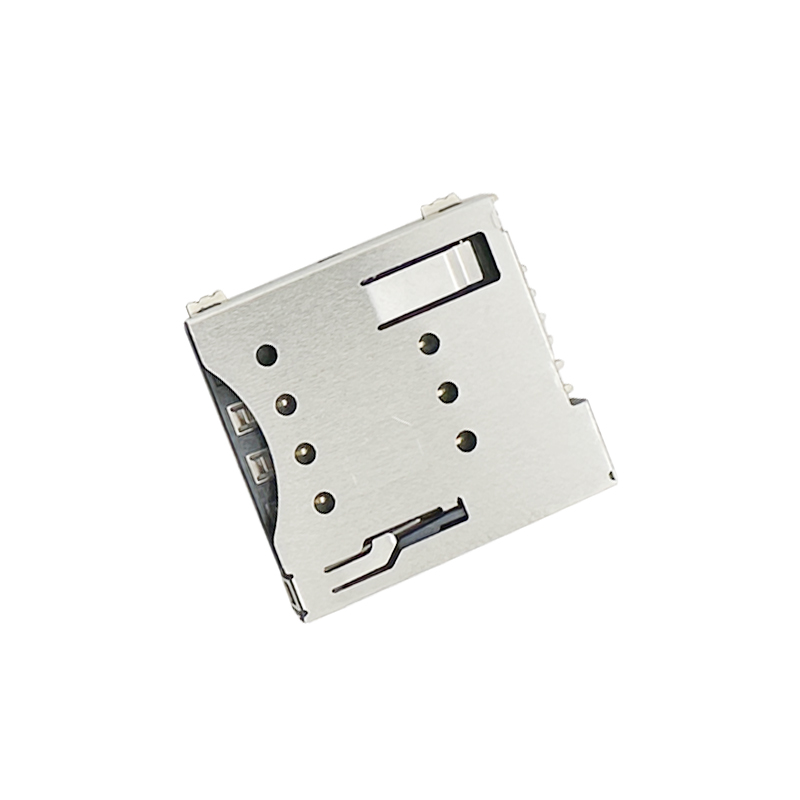

    Micro SIM Card Connector;PUSH PUSH,6P 1P Or 8P 1P,H1.50mm:RHTAYIM-090

    Series Part No: RHTAYIM-090
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    Features

    -6P+1P or 8P+1P Pin Configuration: Available in two configurations—6 pins plus 1 ground pin (6P+1P) or 8 pins plus 1 ground pin (8P+1P)—for versatile applications depending on the device's requirements for data and power connections.

    -Secure SIM Card Insertion and Removal: The push-push mechanism ensures the SIM card stays securely in place during use, and its design minimizes the risk of accidental ejection or disconnection.

    -Pitch (H1.50mm): This indicates the spacing between the pins or contacts, often referred to as the pitch. H1.50mm specifically means a pitch of 1.50mm between adjacent pins.

    -Push-Push Mechanism: This refers to the type of connector where you push the SIM card into the slot until it clicks into place, and then push again to eject it. It's a convenient mechanism for easy insertion and removal of the SIM card.

    -Efficient Space Utilization: The compact size of the connector helps optimize space on the circuit board, making it an excellent choice for devices with constrained internal space.


    Applications

    1.Mobile Phones

    2.Tablets and Laptops

    3.Internet of Things (IoT) Devices

    4.Embedded Systems

    5.Portable Routers and Modems

    Specifications

    Micro SIM Card Connector;PUSH PUSH,6P+1P Or 8P+1P,H1.50mm

    Electrical

    Current Rating: 0.5A

    Voltage Rating:5.0 vrms

    Contact resistance:100mΩ  Max.

    Insulation resistance:1000M Min.

    Withstanding Voltage:250V ACrms For 1 Minute.

    Operating TempRange:-45℃-+105℃

    Material:

    Insulator:Hi-Temperature plastic,UL94V-0,Black

    Terminal:Copper Alloy,Gold Flash Plating On All Terminal, And 50u" min nickel underplated on allover.

    Shell:Stainless Steel,50u" Nickel underplated on allover,gold flash on solder pad.

    Technical Documents

    Please contact us for more information.
