Features
-Versatile Application: Suitable for various mobile communication devices, IoT devices, and other applications that require a reliable and compact SIM card interface.
-8-Pin Configuration: Offers 8 contact points for reliable and stable connections with SIM cards in mobile and electronic devices.
-Height: Designed with a height of 2.4mm, which is relatively compact and suitable for mobile devices where space is limited but not as low-profile as smaller variants.
-Durability: Constructed from durable materials to withstand repeated insertion and removal cycles, ensuring longevity and reliability in mobile applications.
-Electrical Performance: Provides secure electrical contacts with low contact resistance, ensuring reliable data transmission and communication between the Micro SIM card and the device.
Applications
1.Automotive Applications
2.Telecommunication Equipment
3.Portable Wi-Fi Hotspots
4.Security and Alarm Systems
5.Smartphones
Specifications

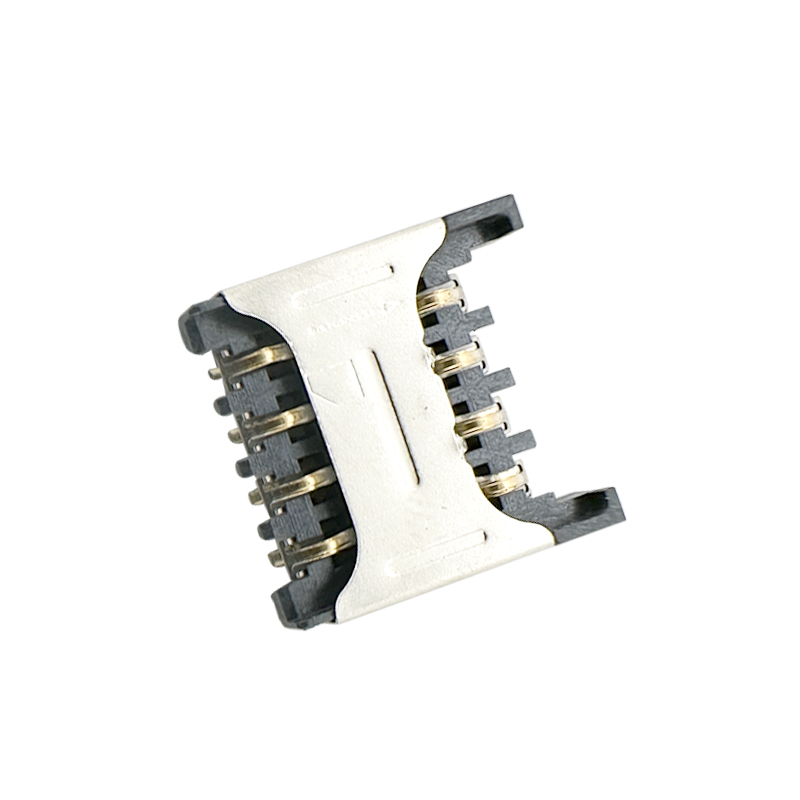

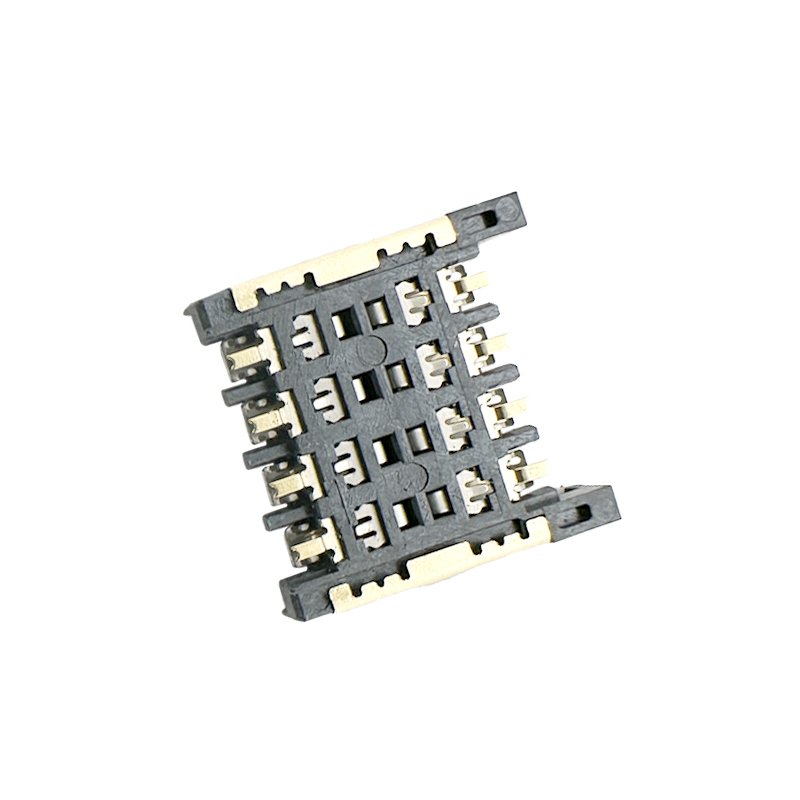

Micro SIM Card Connector 8P,PUSH PULL,H2.4mm
Material:
Base:Hi-Temp Thermoplastic,UL94V-0.Black.
Data Contact:Copper Alloy,Gold Plated.
Shell:Stainless Steel,Gold Plated.
Electrical:
Contact Resistance:50mΩ typical,100Ω Max.
Insulation Resistance:>1000MΩ/500V DC.
3.Solderability
Vapor phase:215ºC.30sec.Max.
IR feflow:250ºC.5sec.Max.
Manual soldering:370ºC.3sec.Max.
Operating Temperature: -45ºC~+105ºC
Technical Documents
SIM card connectors & Micro SIM card connectors & Nano SIM Card is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SIM card connectors & Micro SIM card connectors & Nano SIM Card .
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Micro SIM Card Connector 8P,PUSH PULL,H2.4mm:RHTAYIM-044-8P
