Features
-Pin Configuration:Includes 6 primary pins for electrical connections (typically power, ground, and data signals) and 2 additional pins for features like SIM card detection (CD pin) or other specific functionalities.
-Height (H1.85mm):Specifies the vertical clearance required above the PCB surface for the connector, ensuring proper spacing for components and airflow within the electronic device.
-Push-Push Mechanism:Allows for easy insertion and removal of the SIM card with a simple push-push action. This mechanism is user-friendly and reduces wear on both the connector and the SIM card.
-Compact Size:Designed to accommodate standard SIM cards, offering space-efficient connectivity solutions in electronic devices.
Applications
1.Automotive Systems
2.Medical Devices
3.Security Systems
4.Point of Sale (POS) Terminals
Specifications
SIM Card Connector,PUSH PUSH,6P+2P,H1.85mm,without Post
Material:
Housing:LCP,UL94V-0
Contact:C5210R-H,T=0.15
Shell:SUS304,T=0.20
Mylar:Polyester.
Operating Temperature: -45ºC~+85ºC
Finish:
Contact:Gold Flash Plated On Contact Area;Gold Flash Plated On SolderTails,With Entire Contact Underplated 50u" min Nickel.
Shell:50u" min Nickel Underplated Overall,Gold Flash Plated On Solder Tails.
Technical Documents
Please contact us for more information.
SIM card connectors & Micro SIM card connectors & Nano SIM Card is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SIM card connectors & Micro SIM card connectors & Nano SIM Card .
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

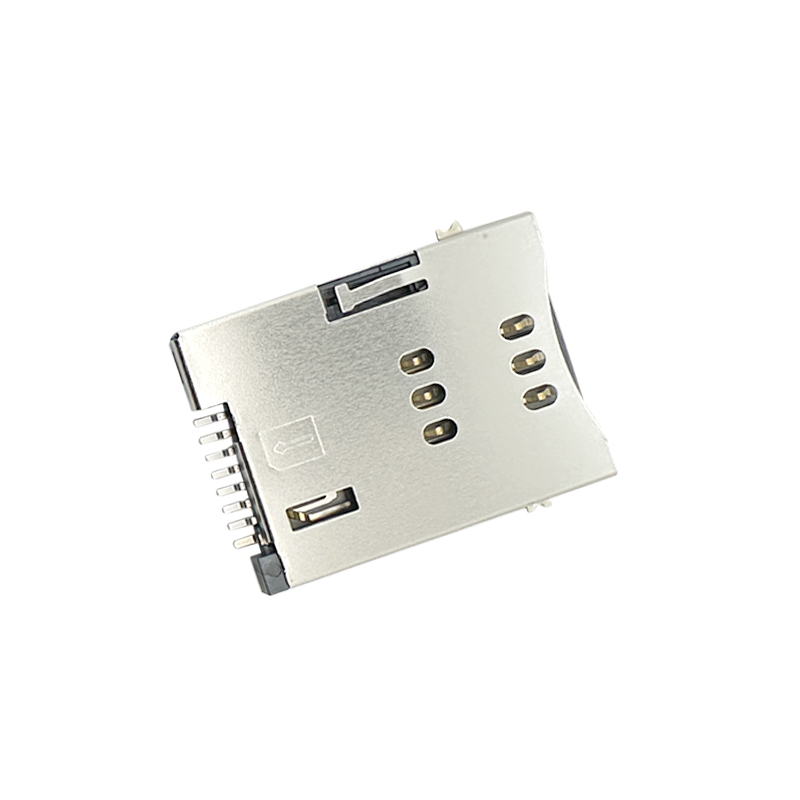

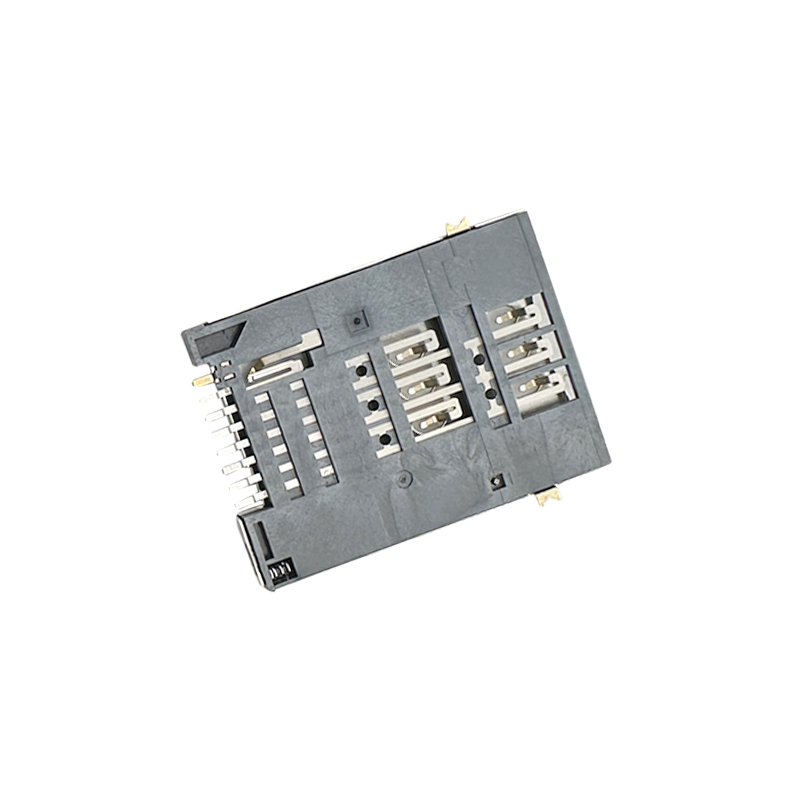

SIM Card Connector PUSH PUSH 6P+2P H1.85mm without Post :RHTAYIM-084
