Features
-Pin Configuration:Typically includes 8 primary pins for standard SIM card connections (such as VCC, GND, and data lines) and 1 additional pin for features like SIM card detection (CD pin) or additional functionalities required by the device.
-Height (H1.85mm):Specifies the vertical clearance required above the PCB surface for the connector, ensuring proper spacing for components and allowing for efficient airflow within the device.
-Compact Size:Designed to accommodate standard SIM cards, micro SIM cards, or nano SIM cards depending on the device's requirements. The compact size helps save space on the PCB.
-Push-Push Mechanism:Allows for easy insertion and removal of the SIM card with a simple push-push action. This mechanism enhances user convenience and reduces wear on both the connector and the SIM card.
Applications
1.IoT Devices
2.Automotive Systems
3.Wearable Technology
4.Security Systems
Specifications
SIM Card Connector,PUSH PUSH,8P+1P,H1.85mm,without Post
Material:
Housing:High Temperature
Thermoplastic,UL94V-0.Black.
Contact:Copper Alloy.
Cover:Contact:Copper Alloys Or Steel.
Plating:
Underplate:Nickel.
Contact Area:Gold Over Nickel.
Solder Area:Tin Over Nickel.
Shell:G/F Plate Over Nickel On Solder Tails
Electrical:
Current Rating:0.5A.
Voltage Rating:5.0 Vrms.
Insulation Resistance:500M Min.At DC 500V DC
Withstanding Voltage:250V ACrms For 1 Minute.
Contact Resistance:100M Max.At 10MA/20mV MAX.
Operating Temperature: -45ºC~+85ºC
Mating Cycles:5000 Insertions.
Technical Documents
Please contact us for more information.
SIM card connectors & Micro SIM card connectors & Nano SIM Card is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SIM card connectors & Micro SIM card connectors & Nano SIM Card .
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

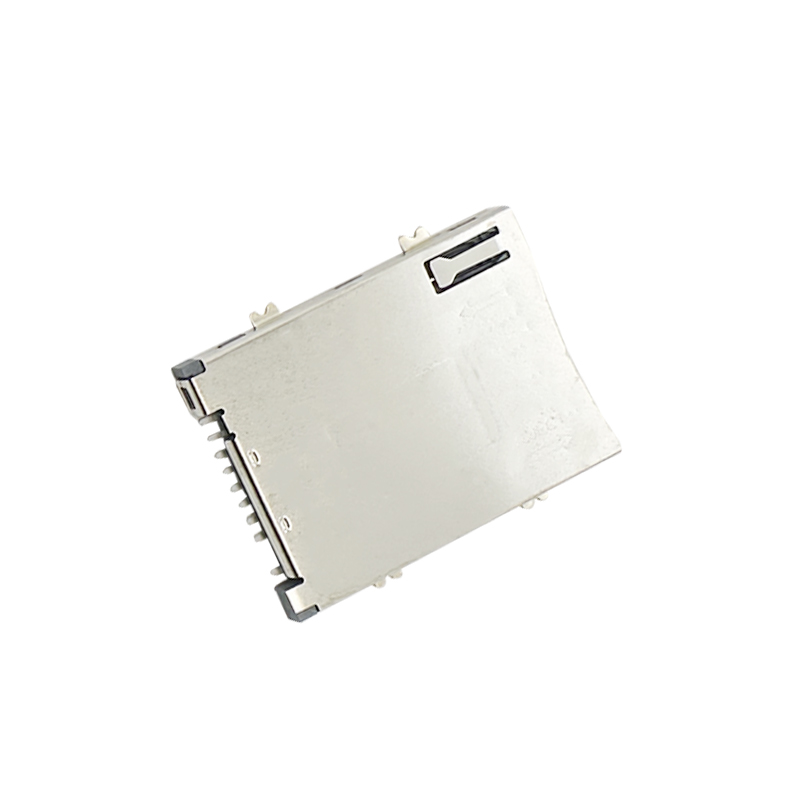

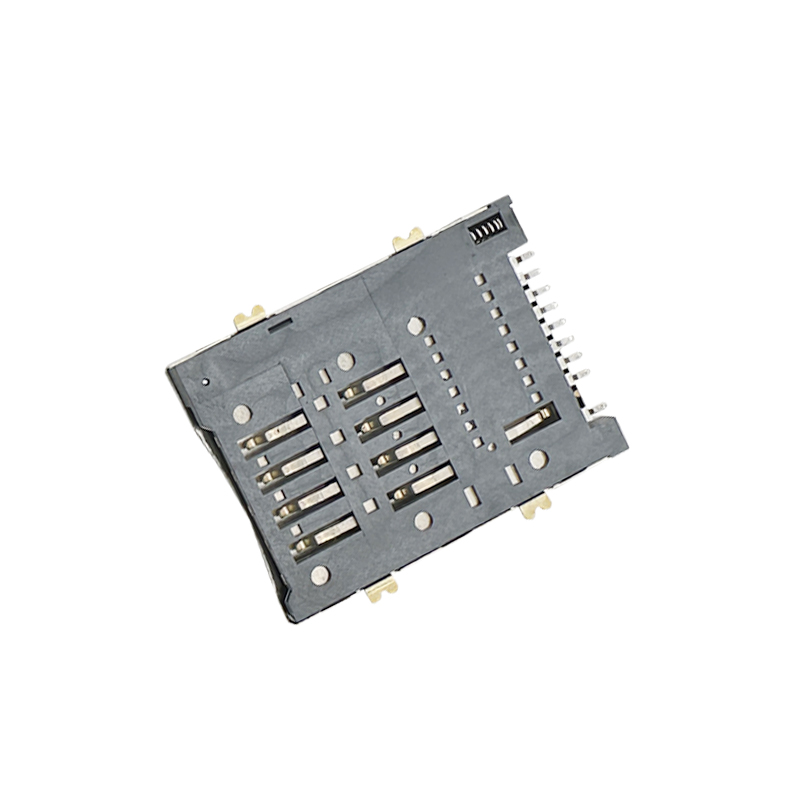

SIM Card Connector PUSH PUSH 8P 1PH1.85mm without Post :RHTAYIM-074B
