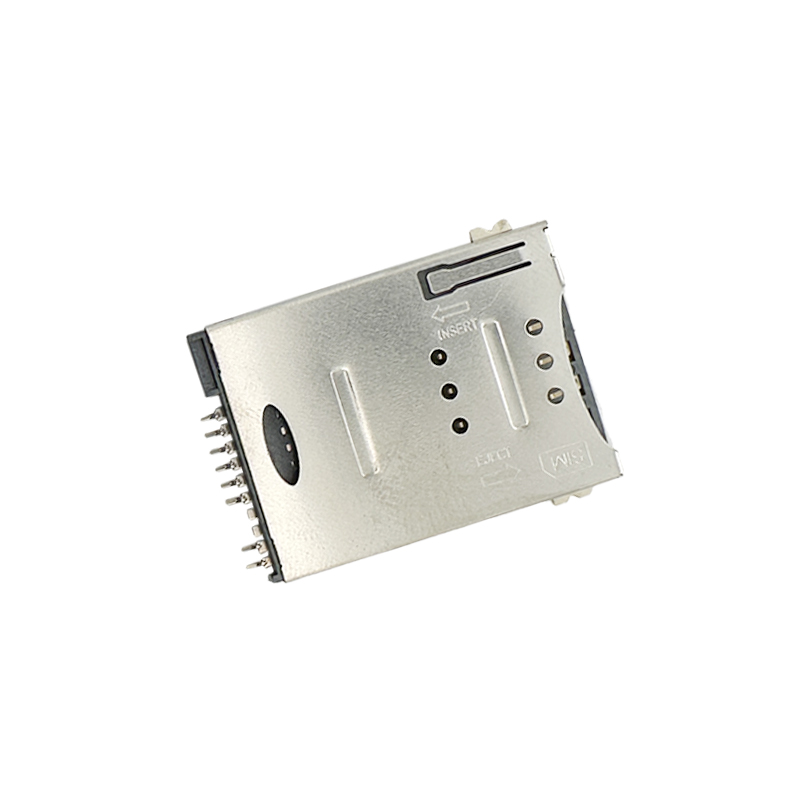

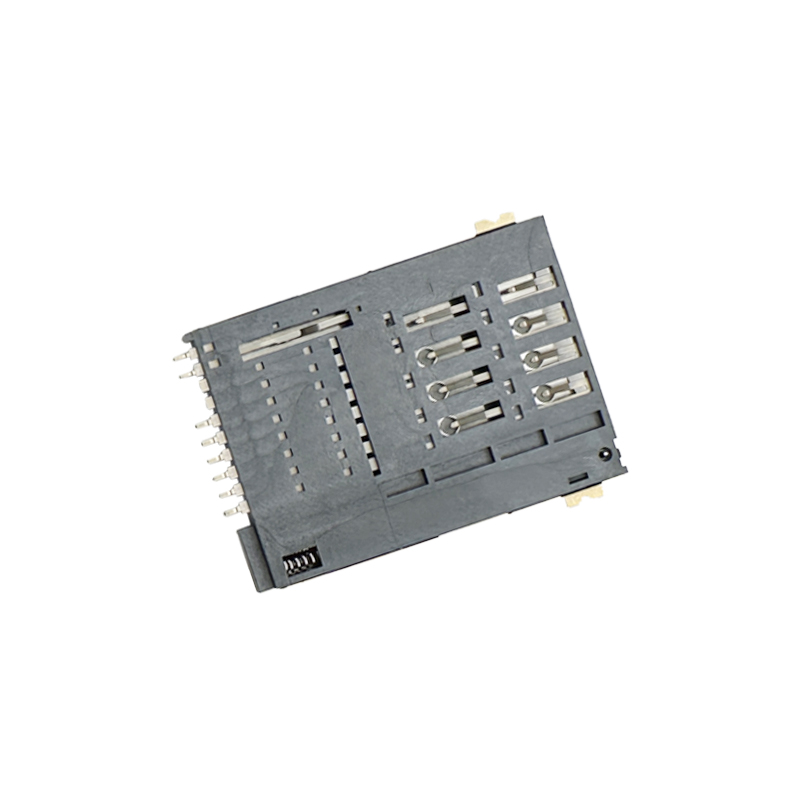

    SIM Card Connector PUSH PUSH 6P+2P H1.85mm without Post :RHTAYIM-064A

    Series Part No: RHTAYIM-064A
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    Features

    -Pin Configuration:Includes 6 primary pins for electrical connections (typically power, ground, and data signals) and 2 additional pins for features like SIM card detection (CD pin) or other specific functionalities.

    -Height (H1.85mm):Specifies the vertical clearance required above the PCB surface for the connector, ensuring proper spacing for components and airflow within the electronic device.

    -High Durability:Designed to withstand frequent insertion and removal cycles, ensuring long-term durability and reliable performance.

    -Secure Connection:Provides a stable and secure connection to the SIM card, minimizing the risk of disconnection due to vibrations or impacts.

    -Electrical Contact: Ensures secure and reliable electrical contact with the SIM card, preventing signal loss or disruption.

    Applications

    1.Medical Devices

    2.Security Systems

    3.Point of Sale (POS) Terminals

    4.Industrial Automation

    Specifications

    SIM Card Connector,PUSH PUSH,6P+2P,H1.85mm,without Post

    Material:

    Insulator:H-Temperature Plastic,UL94V-0.Black.

    Contact:Copper Alloy,T=0.15mm

    Shell:Stainless Steel,T=0.15mm

    Finsh:

    Terminal:50u" min Nickel Underplated on Allover,Gold Plating on Contact Arer,80u" min Tin on Solder Tail.

    Shell:50u" Nickel Underplated on Allover,Gold Flash on Solder Latch.

    Electrical:

    Current Rating:0.5A.

    Voltage Rating:5.0 Vrms.

    Insulation Resistance:500M Min.At DC 500V DC

    Withstanding Voltage:250V ACrms For 1 Minute.

    Contact Resistance:100M Max.At 10MA/20mV MAX.

    Operating Temperature: -45ºC~+85ºC

    Mating Cycles:5000 Insertions.

    Technical Documents

    Please contact us for more information.
