Features
-6-Pin Configuration: Designed to support 6-pin SIM cards, providing versatile connectivity options.
-Push-Pull Mechanism: Allows for quick and easy insertion and removal of SIM cards, ensuring secure retention.
-Ultra-Low Profile: With a height of only 1.8mm, it’s ideal for compact electronic devices with limited internal space.
-Durable Contacts: High-quality contacts ensure stable connectivity and signal integrity over extended use.
-Space-Saving Design: Optimized for small PCBs, making it suitable for miniaturized device designs.
Applications
1.Smartphones and Feature Phones
2.Wearable Technology
3.Internet of Things (IoT) Devices
4.GPS and Navigation Systems
5.Automotive Electronics
Specifications
6P SIM Card Connector,PUSH PULL,H1.8mm
Material:
Housing:High Thermoplastic,UL94V-0.Black.
Terminal:Copper Alloy.
Shell:Copper Alloy.
Finish:
Contact:Gold Over Nickel.
Shell:Nickel Over All Over.
Electrical:
Operating Voltage:30V
Current Rating:0.5 A
Operating Temperature: -45ºC~+105ºC
Technical Documents
Please contact us for more information.
SIM card connectors & Micro SIM card connectors & Nano SIM Card is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SIM card connectors & Micro SIM card connectors & Nano SIM Card .
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

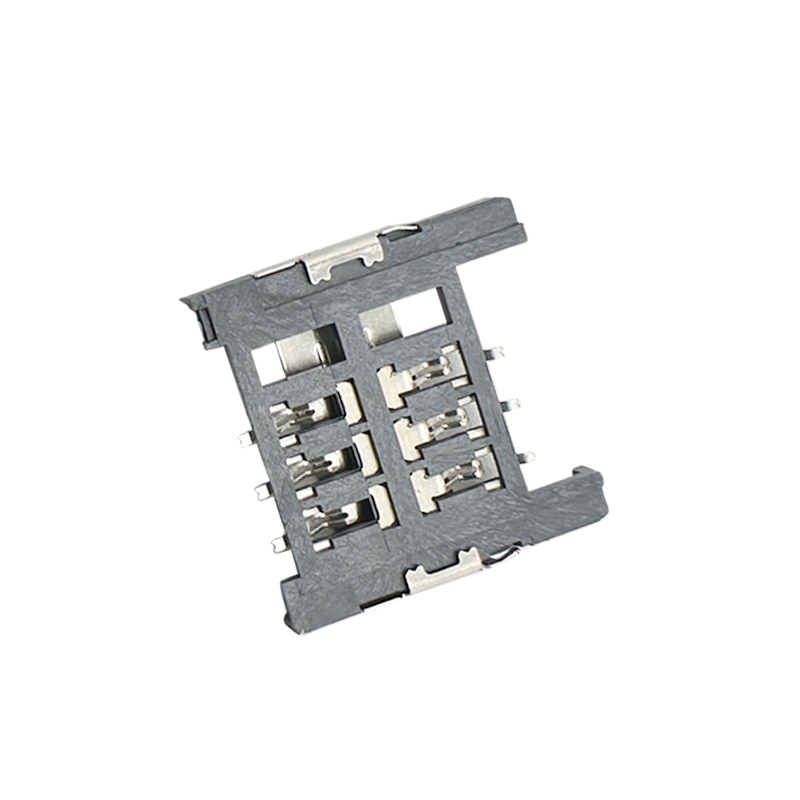

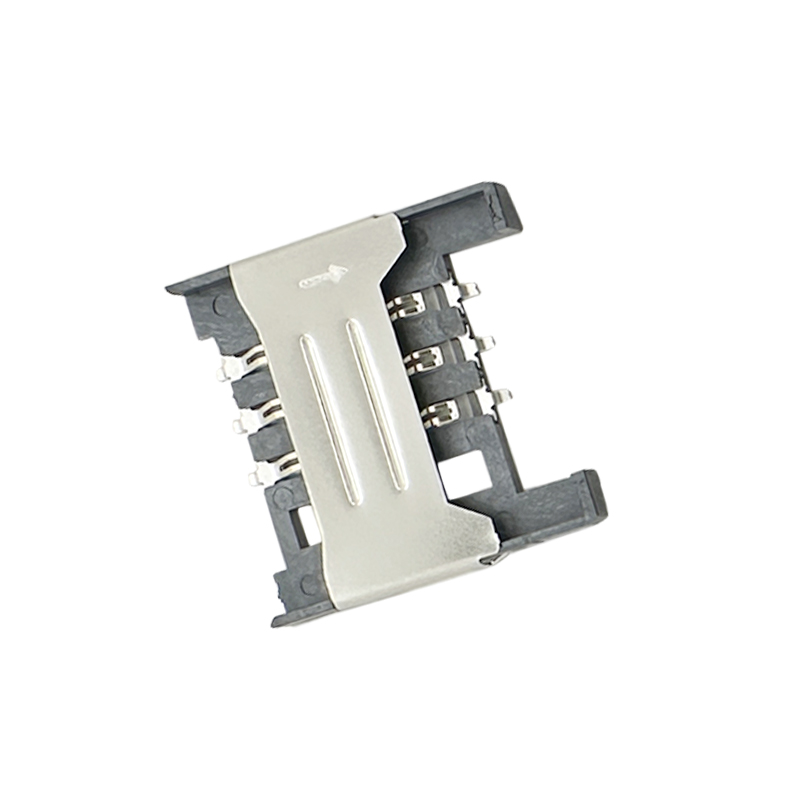

6P SIM Connector with Push-Pull Mechanism,H1.8mm:RHTAYIM-044C
