Features
-6-Pin Configuration: Designed to support 6-pin SIM cards, providing versatile connectivity options for mobile and embedded devices.
-Low-Profile Design: At only 2.7mm in height, this connector offers a compact solution for devices with limited internal space.
-Push-Pull Mechanism: Features a user-friendly push-pull action that allows for easy SIM card insertion and removal while ensuring secure retention.
-Reliable Contact Performance: Constructed with durable contacts that ensure stable, long-lasting electrical performance and signal integrity.
-Durability: Built for high durability, designed to withstand frequent insertions and removals without degradation of performance.
Applications
1.Smartphones and Mobile Devices
2.Smart Meters and Remote Sensors
3.Wearable Devices
4.Automotive Electronics
5.Point-of-Sale (POS) Terminals
Specifications
6P SIM Card Connector,PUSH PULL,H2.7mm
Material:
Housing:Hi-Temp.Plastic,UL94V-0.Black.
Terminal:Copper Alloy,(T=0.15mm),Gold Plated Over Nickel.
Fork:Copper Alloy,(T=0.20mm),Tin Plated Over Nickel.
Electrical:
Current Rating:1.0 A max.
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500V AC RMS For One Minute.
Insulation Resistance:1000MΩ Min.At 500V DC
Operating Temperature:-40%%DC TO +85%%DC.
Operating Temperature: -45ºC~+105ºC
Technical Documents
Please contact us for more information.
SIM card connectors & Micro SIM card connectors & Nano SIM Card is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SIM card connectors & Micro SIM card connectors & Nano SIM Card .
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

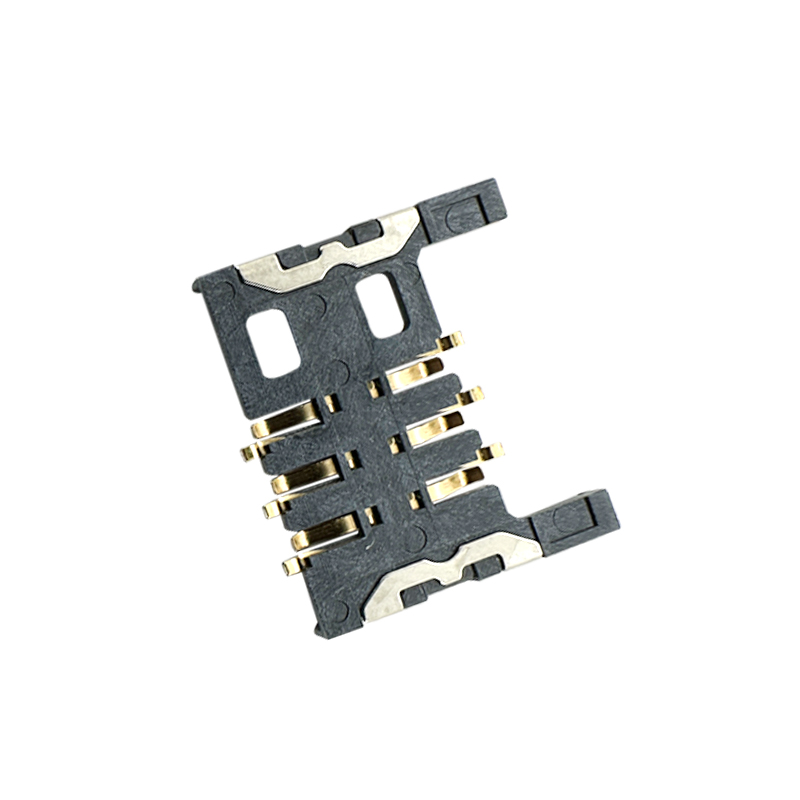

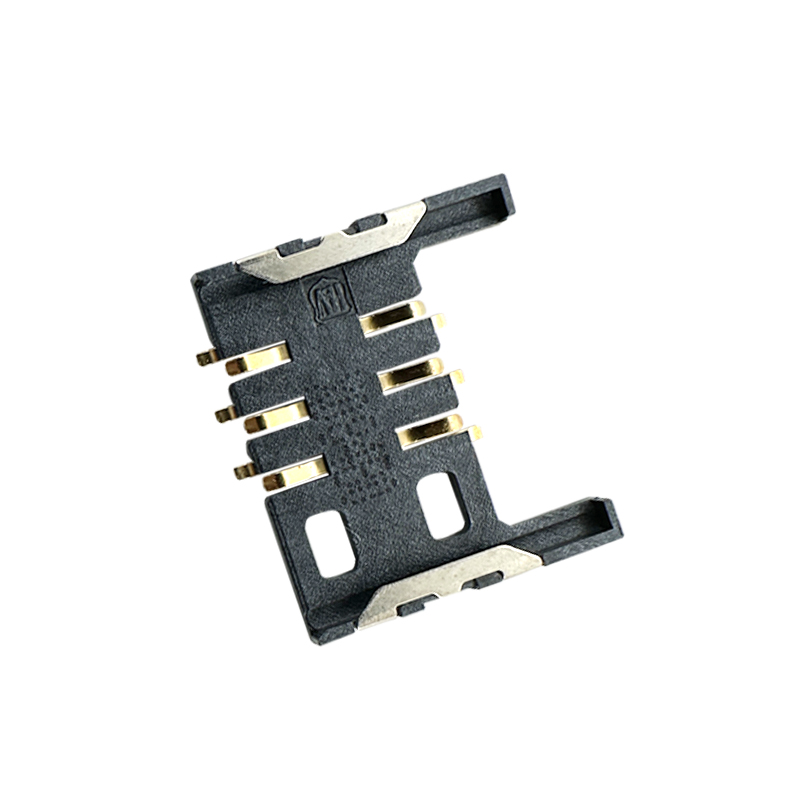

6P SIM Card Connector Push-Pull Mechanism,H2.7mm:RHTAYIM-015
