Features
-Connector Type: D-SUB (Dual Row)
-IDC Contacts: Designed to pierce the insulation of flat ribbon cables when pressed into place, creating a gas-tight electrical connection without the need for stripping the wires.
-Number of Pins: Available in various pin configurations (9, 15, 25, 37), indicating the number of signal pins for different applications.
-Material: Typically made from metal (e.g., steel, brass) for durability and good electrical conductivity.
Applications
1.Consumer Electronics
2.Test and Measurement Instruments
3.Automotive Electronics
4.Medical Devices
Specifications

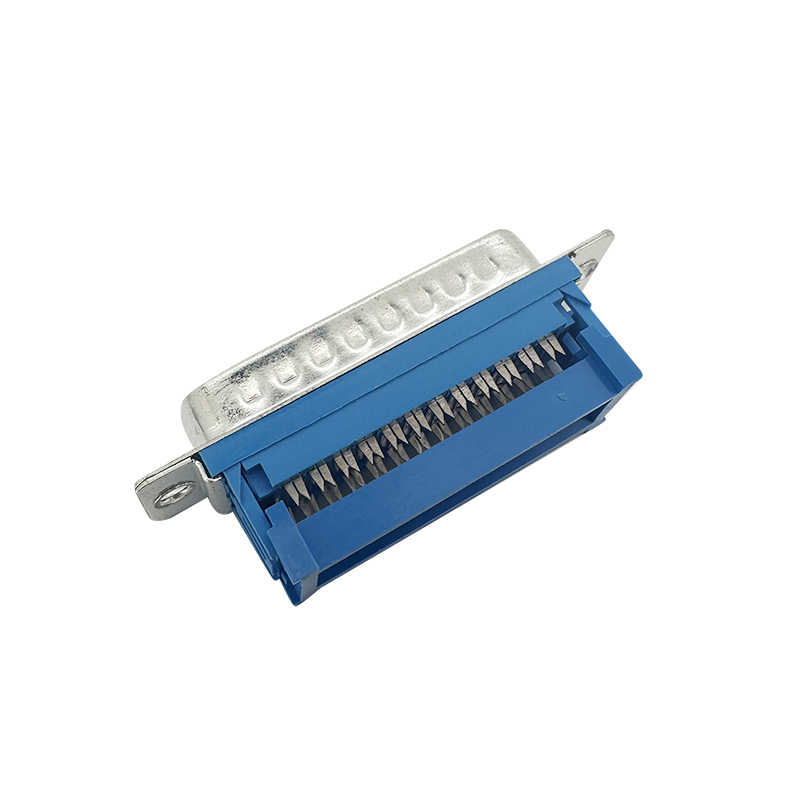

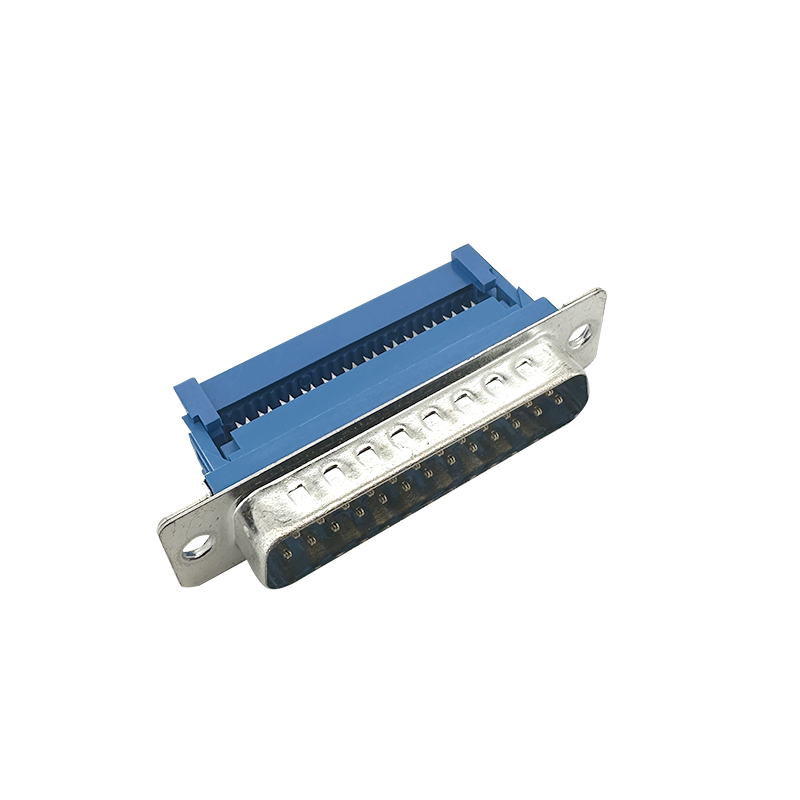

D-SUB Connector IDC Type 9 15 25 37 pins Male Female
Order Information
RHTAY22B-XX-M-L
Type: 22B , 22BN
XX-No.of 09,15,25,37pins
M-Male F-Female
L-Blue B-Black
Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating
Shell: Steel, Nickel Plating
Electrical Characteristics:
Current Rating: 1 AMP
Insulator Resistance: 1000MΩ Min. at DC 500V
Withstanding Voltage: 500V AC (rms) for 1 minute
Contact Resistance: 20mΩ Max. Initial
Operating Temperature: -55°C~+105°C
Technical Documents
Please contact us for more information.
D-Sub connectors & D-SUB hood is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of D-Sub connectors & D-SUB hood.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
D-SUB Connector IDC Type 9 15 25 37 pins Male Female :RHTAY22B&RHTAY22BN
