Features
-Configuration: These connectors feature two rows of pins, arranged in a specific configuration based on the number of pins (e.g., 3 rows for 15P and higher configurations).
-Simple Solder Type: Designed for through-hole soldering onto a printed circuit board (PCB), providing a secure and reliable electrical and mechanical connection.
-Gender Options: Available in male and female variants:
Male: Typically has pins that plug into the female connector.
Female: Typically has sockets to receive the male pins.
-Compatibility: Compliant with D-SUB standards, ensuring compatibility with a wide range of devices and equipment that use D-SUB connectors.
Applications
1.Telecommunications and Networking
2.Broadcasting and Audio/Video Equipment
3.Medical and Healthcare Devices
4.Automotive and Transportation Systems
Specifications

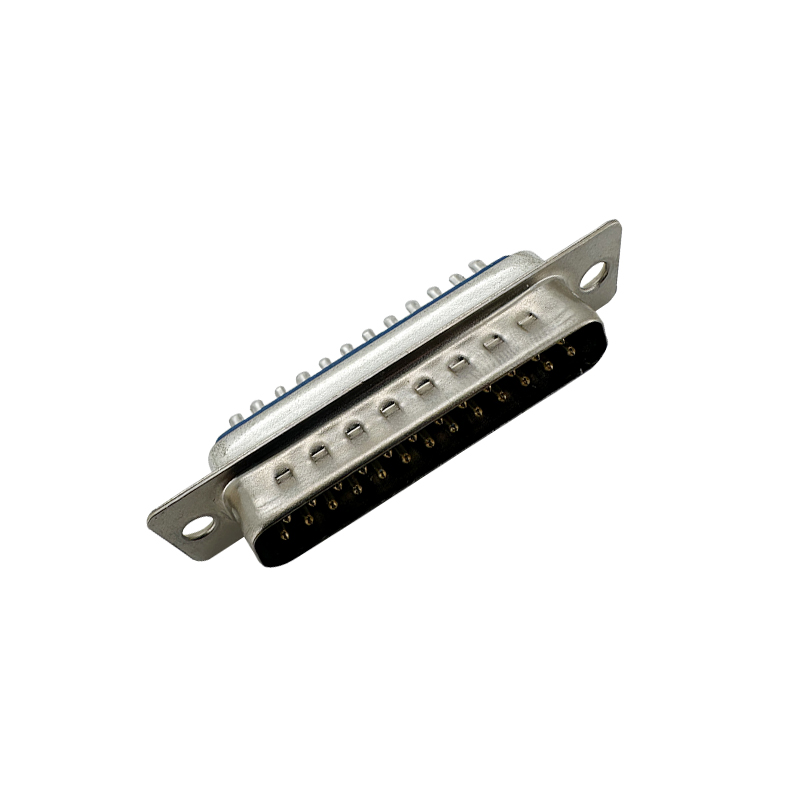

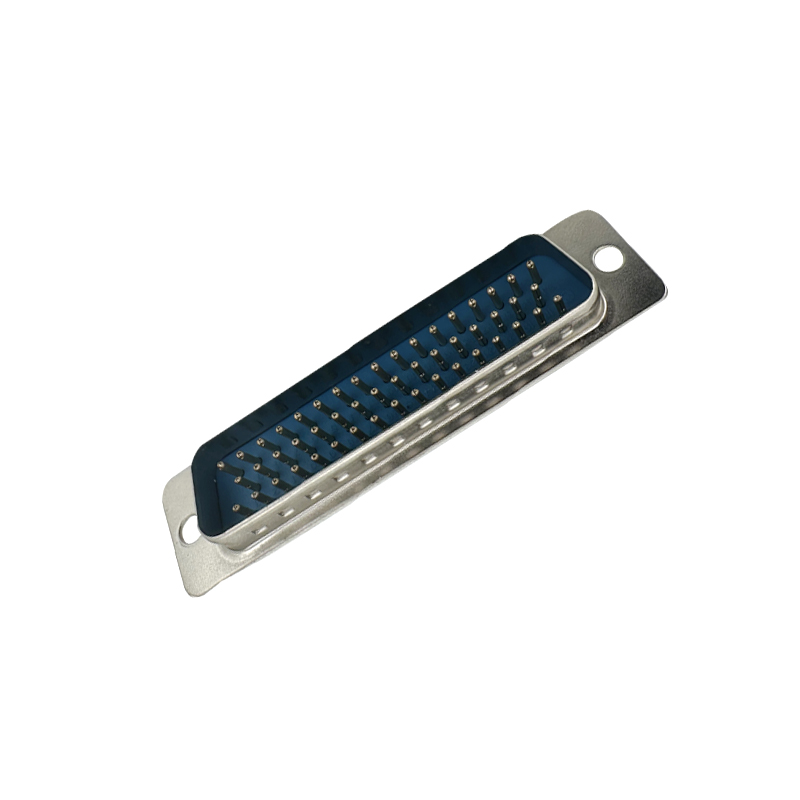

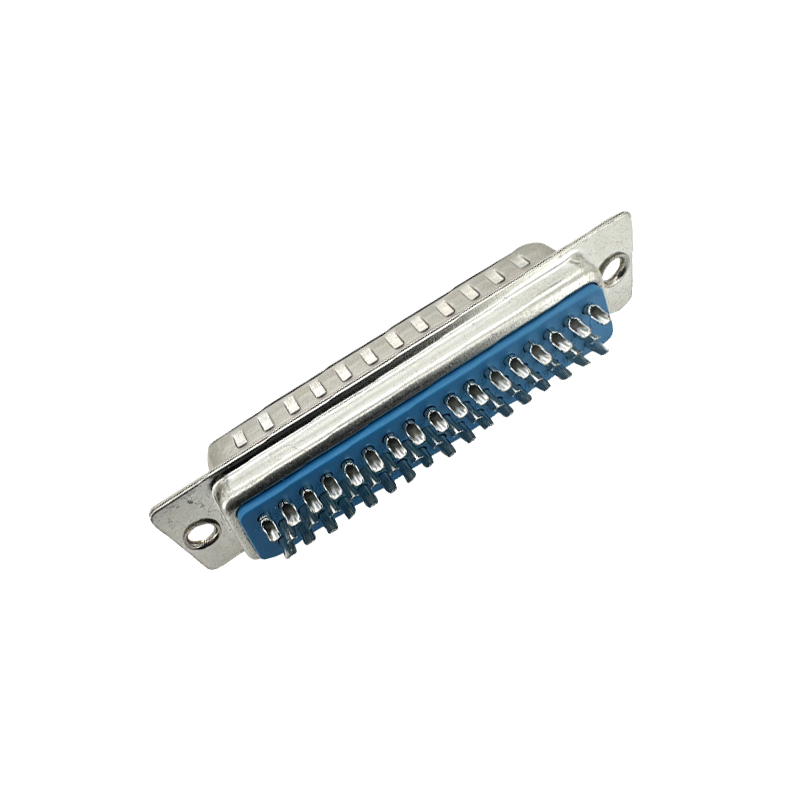

DB 2 Row D-SUB Connector,Simple Solder Type,9P 15P 25P 37P 50p Male Female
Order Information
RHTAY13-XX-M-L
XX-No.of 09,15,25,37,50pins
M-Male F-Female
L-Blue B-Black W-White
Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass , Gold Plating on Contact Arer, Tin on Solder Tail.
Shell: Steel, Front Shell Nickel Plating, Back Shell Tin Plating
Electrical Characteristics:
Current Rating: 5 AMP
Insulator Resistance: 1000MΩ Min. at DC 500V
Withstanding Voltage: 500V AC (rms) for 1 minute
Contact Resistance: 20mΩ Max. Initial
Operating Temperature: -55°C~+105°C
Technical Documents
Please contact us for more information.
D-Sub connectors & D-SUB hood is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of D-Sub connectors & D-SUB hood.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
DB 2 Row D-SUB Connector,Simple Solder Type,9P 15P 25P 37P 50p Male Female:RHTAY13
