Features
-Number of Pins: Available in various configurations such as 15P, 26P, 44P, 62P (refers to the number of signal pins)
-Gender: Female (socket type)
-Orientation: Right Angle (90-degree angle from the PCB or socket)
-Pitch: 8.89mm (distance between adjacent pins)
Applications
1.Telecommunications and Networking
2.Industrial Automation
3.Computer and Data Systems
4.Medical Devices
Specifications

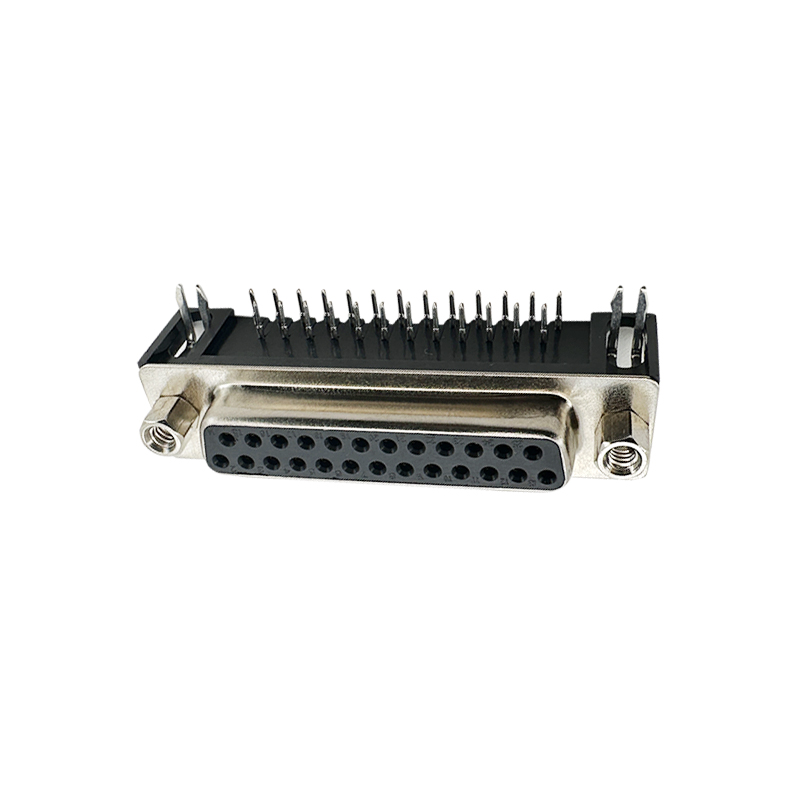

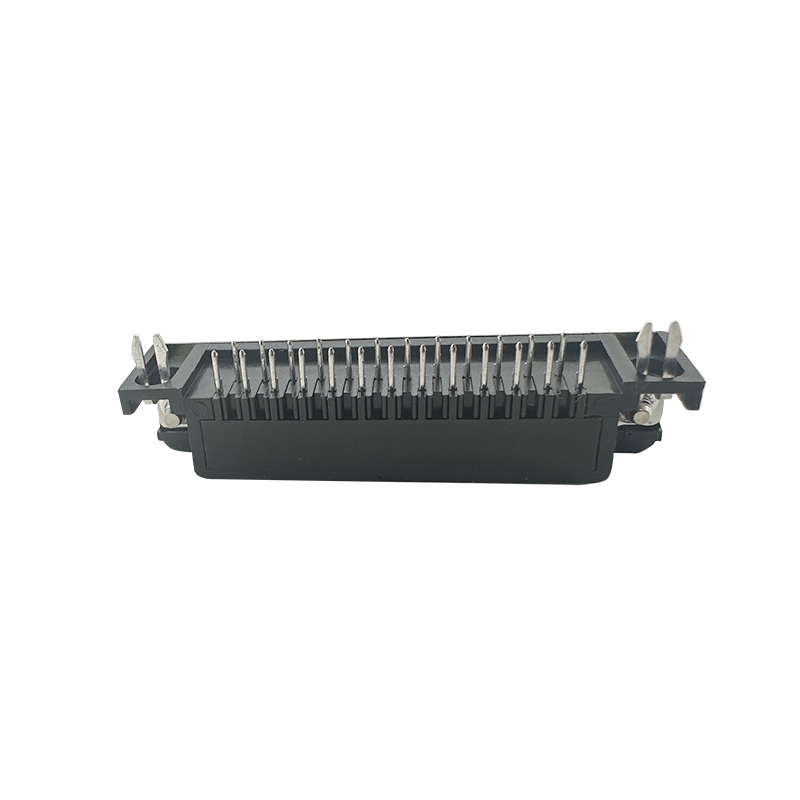

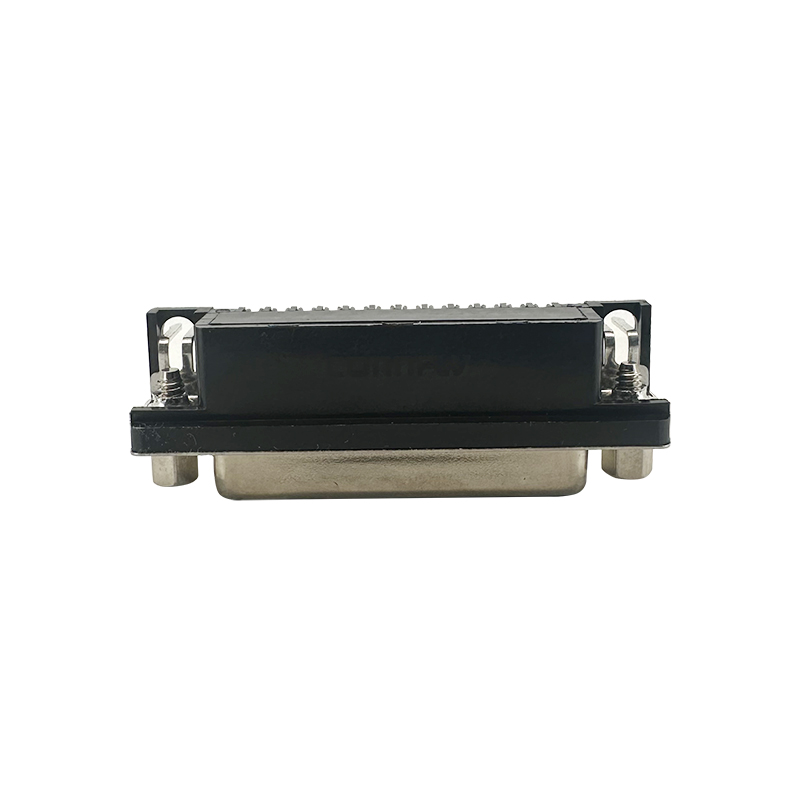

HDR 3 Row D-SUB Connector,15P 26P 44P 62P Female,Right angle,8.89mm
Order Information
RHTAYC15-XX-M-B
Type:15,15B,15C
XX-No.of 15,26,44,62pins
M-Male F-Female
B-Black L-Blue
Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating
Electrical Characteristics:
Current Rating: 5 AMP
Insulator Resistance: 1000MΩ Min. at DC 500V
Withstanding Voltage: 500V AC (rms) for 1 minute
Contact Resistance: 20mΩ Max. Initial
Operating Temperature: -55°C~+105°C
Technical Documents
Please contact us for more information.
D-Sub connectors & D-SUB hood is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of D-Sub connectors & D-SUB hood.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
HDR 3 Row D-SUB Connector,15P 26P 44P 62P Female,Right angle,8.89mm :RHTAYC15
